Middleby Marshall Model PS536 - Manual (Page 33)

33
ENGLISH
L1
L2
L3
HIGH
LIMIT
CONTROL MODULE
RESET SWITCH
THERMO- COUPLE
RESET
LAMP
MACHINERY
COMPARTMENT
SAFETY SWITCH
MOTOR
COMPARTMENT
SAFETY SWITCH
CIRCUIT BREAKER
2A
TRANSFORMER
208V
P
RI.
120V
SEC.
CONVEYOR
SPEED
CONTROLLER
DRIVE MOTOR
BLOWER SWITCH
AIR
PRESSURE
SWITCH
TEMPERATURE
C
ONTROLLER
BLOWER MOTOR
COOLING
FAN
COOLING
FAN
HEATER
8kW
HEATER
8kW
THERMO- COUPLE
CONTACTOR
RELAY, 3
PHASE
CONVEYOR
SWITCH
PICKUP
CIRCUIT BREAKER
15A
CONVEYOR
SPEED
CONTROLLER
DRIVE MOTOR
PICKUP
SPLIT
BELT
OVENS
ONLY
N
CIRCUIT
BREAKER,
3-POLE
FILTER, 3
PHASE
CONTACTOR,
3
POLE
IMPORTANT
An electrical wiring diagram for the oven is also located inside the machinery compartment.
SECTION 5 - ELECTRICAL WIRING DIAGRAMS

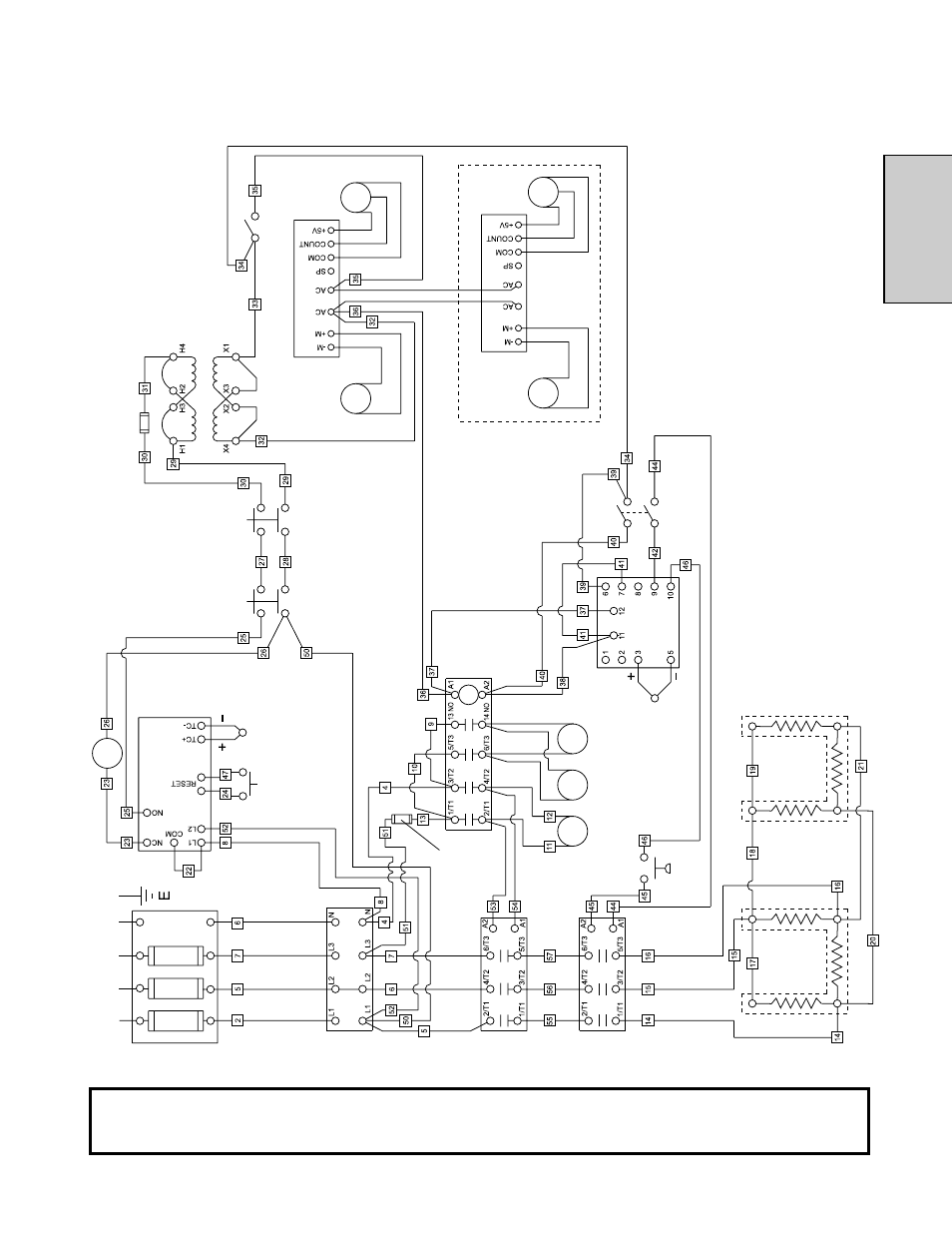

Fig. 5-2 - Wiring diagram, PS536 Electric Oven
380V, 50 Hz, 3 Ph (Europe)
