SECTION 5 - ELECTRICAL WIRING DIAGRAMS
TERMINAL
B
LOCK
L
NE
HIGH
LIMIT
CONTROL MODULE
RESET SWITCH
THERMO- COUPLE
RESET
LAMP
MACHINERY
COMPARTMENT
SAFETY SWITCH
MOTOR
COMPARTMENT
SAFETY SWITCH
CIRCUIT
BREAKER
2A
TRANSFORMER
240V
P
RI
:
120V
SEC.
CONVEYOR
SPEED
CONTROLLER
DRIVE MOTOR
BLOWER SWITCH
AIR
PRESSURE
SWITCH
TEMPERATURE CONTROLLER
BLOWER MOTOR
COOLING
FAN
COOLING
FAN
THERMO- COUPLE
CONTACTOR
CONVEYOR
SWITCH
PICKUP
CIRCUIT BREAKER
15A
CONVEYOR
SPEED
CONTROLLER
DRIVE MOTOR
PICKUP
SPLIT
BELT
OVENS
ONLY
AMPLIFIER
BOARD
MODULATING
VALVE
GAS
CONTROL
VALVE
TRANSFORMER
240V
P
RI
:
24V
SEC
LINE
FILTER
RESET
SWITCH
IGNITOR
CIRCUIT
BREAKER
1A
E
BLOWER SWITCH
Middleby Cooking Systems Group • 1400 Toastmaster Drive • Elgin, IL 60120 • USA • (847)741-3300 • FAX (847)741-4406
24-Hour Service Hotline: 1-(800)-238-8444
www.middleby.com
IMPORTANT
An electrical wiring diagram for the oven is also located inside the machinery compartment.

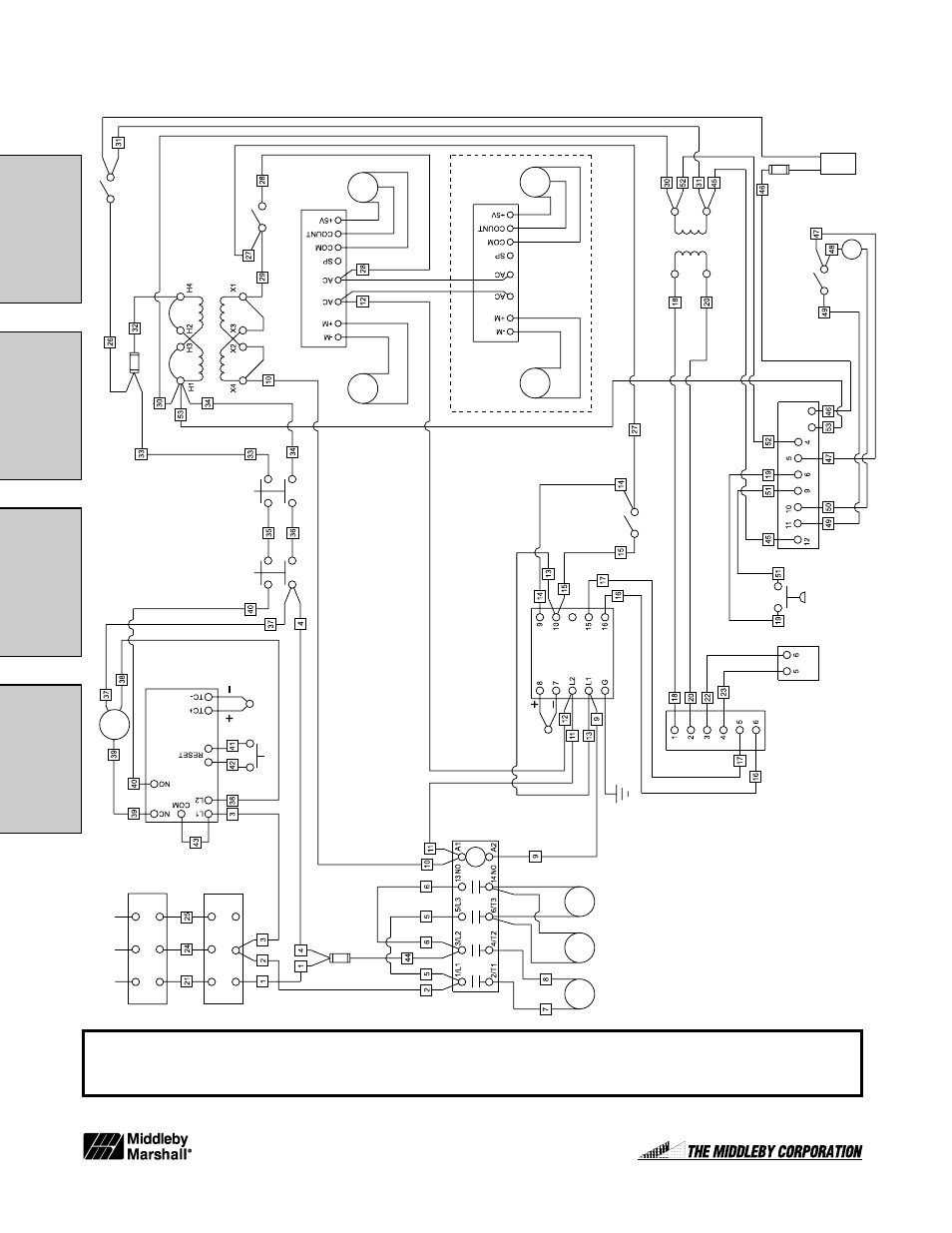

Fig. 5-2 - Wiring diagram, PS536 Gas Oven
220-230V, 50 Hz, 1 Ph (Europe)
