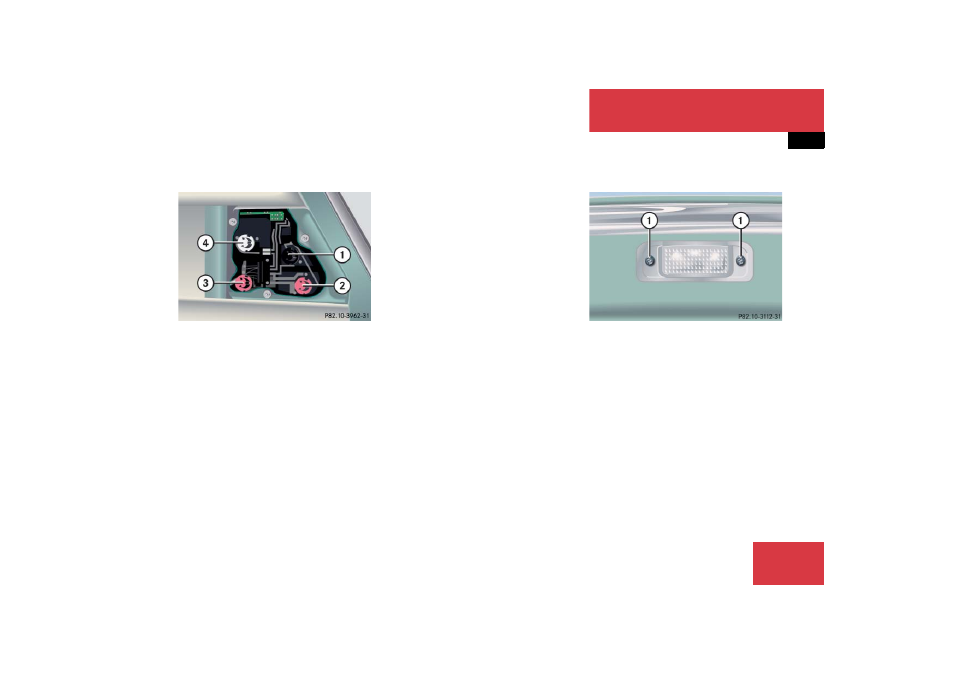

Practical hints
Replacing bulbs
Tail lamp assemblies
Passenger side
1 Black socket:
Backup lamp
2 Red socket:
Driver’s side: Tail, parking and rear fog
lamp
Passenger’s side: Tail and parking lamp
3 Red socket:
Tail, standing and parking lamp
4 White socket:
Turn signal lamp
̈ Turn the locking knob and move the
trim to the side.
̈ Turn bulb socket counterclockwise and
pull out.
̈ Gently twist bulb counterclockwise and
pull out of bulb holder.
̈ Insert new bulb into the holder and turn
it clockwise.
̈ Reinstall bulb socket.
The bulb socket should audibly click.
̈ Replace trim and secure with lock.
License plate lamp
1 Screws
̈ Loosen both screws 1.
̈ Remove the license plate lamp.
̈ Replace the bulb.
̈ Reinstall the license plate lamp.
̈ Retighten screws 1.
