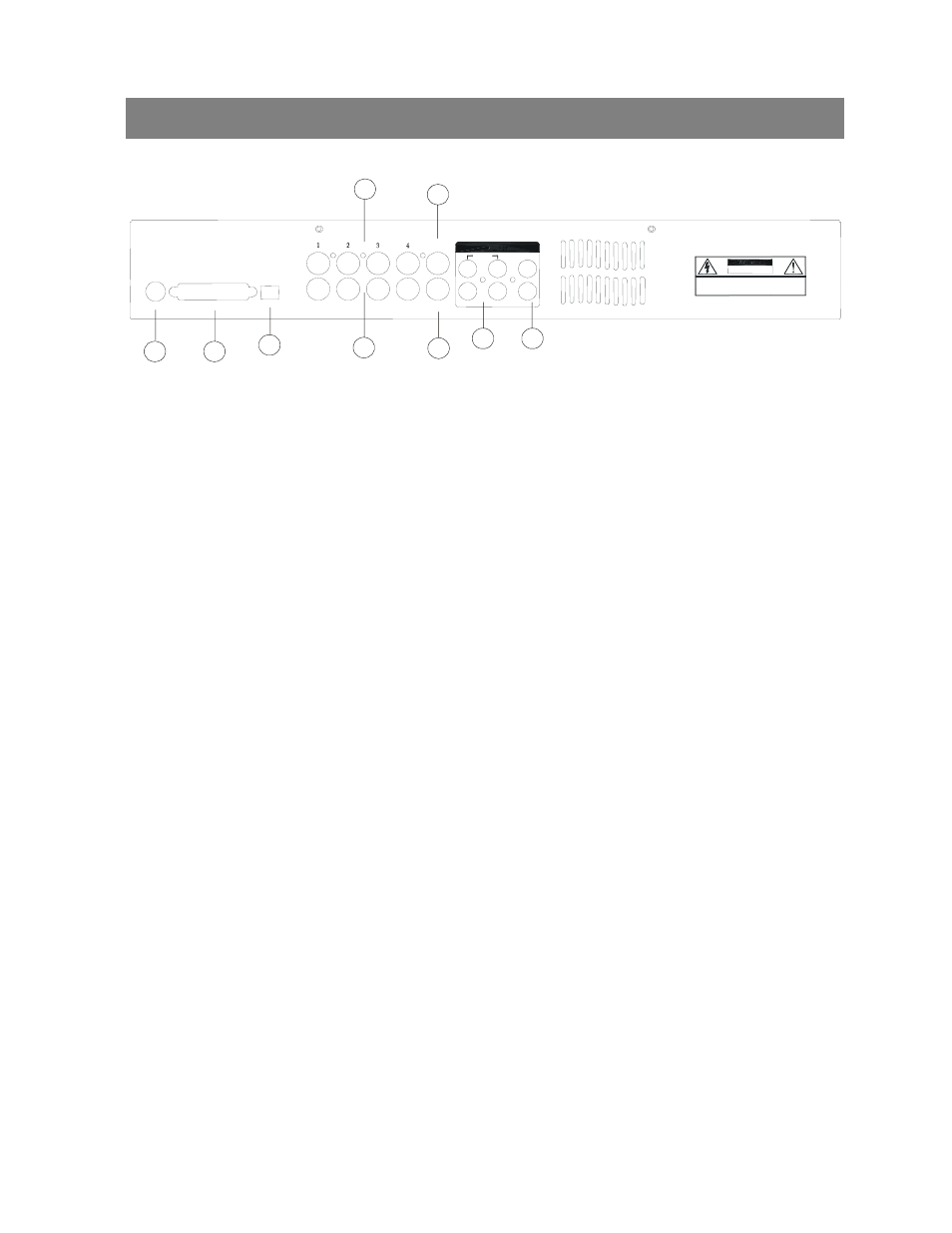

BACK PANEL
DVR
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
75Ω
HI
POWER EXTERNAL I/O
INPUT
LOOP
CALL 2
MAIN
1
IN
L 4
3 R
OUT
1 2
3 4 5
6 7
8
9
1. POWER
Please use the provided adapter to connect power cord (Other adapter is not suitable for this machine).
2. EXTERNAL I/O
‧ Controlled remotely by an external device or control system.
‧ Alarm input, external I / O explanation.
3. 75Ω / HI
When using Loop function, please switch to HI. If you don’t use Loop function or disconnect the video
input, please set it as 75Ω.
4. VIDEO INPUT (1-4)
Connect to video source, such as camera.
5. CALL
Connect to CALL monitor. Show the Switch Display.
When alarm trigger happens, the call monitor will show the triggered channel for a period of time.
6. AUDIO IN (1-4)
Connect to audio source, such as microphone.
‧ IPS should be set to 25A (for NTSC) or 18A (for PAL)
✻ 4 audio inputs, but only can select 1 during recording.
7. AUDIO OUT (R/L)
Connect to monitor or speaker.
‧ IPS should be set to 25A (for NTSC) or 18A (for PAL )
✻ with 2 mono audio outputs from the same source.
8. MAIN
Connect to Main monitor
9. LOOP (1-4)
Connect video signal between Input port and Loop port to make a loop.
