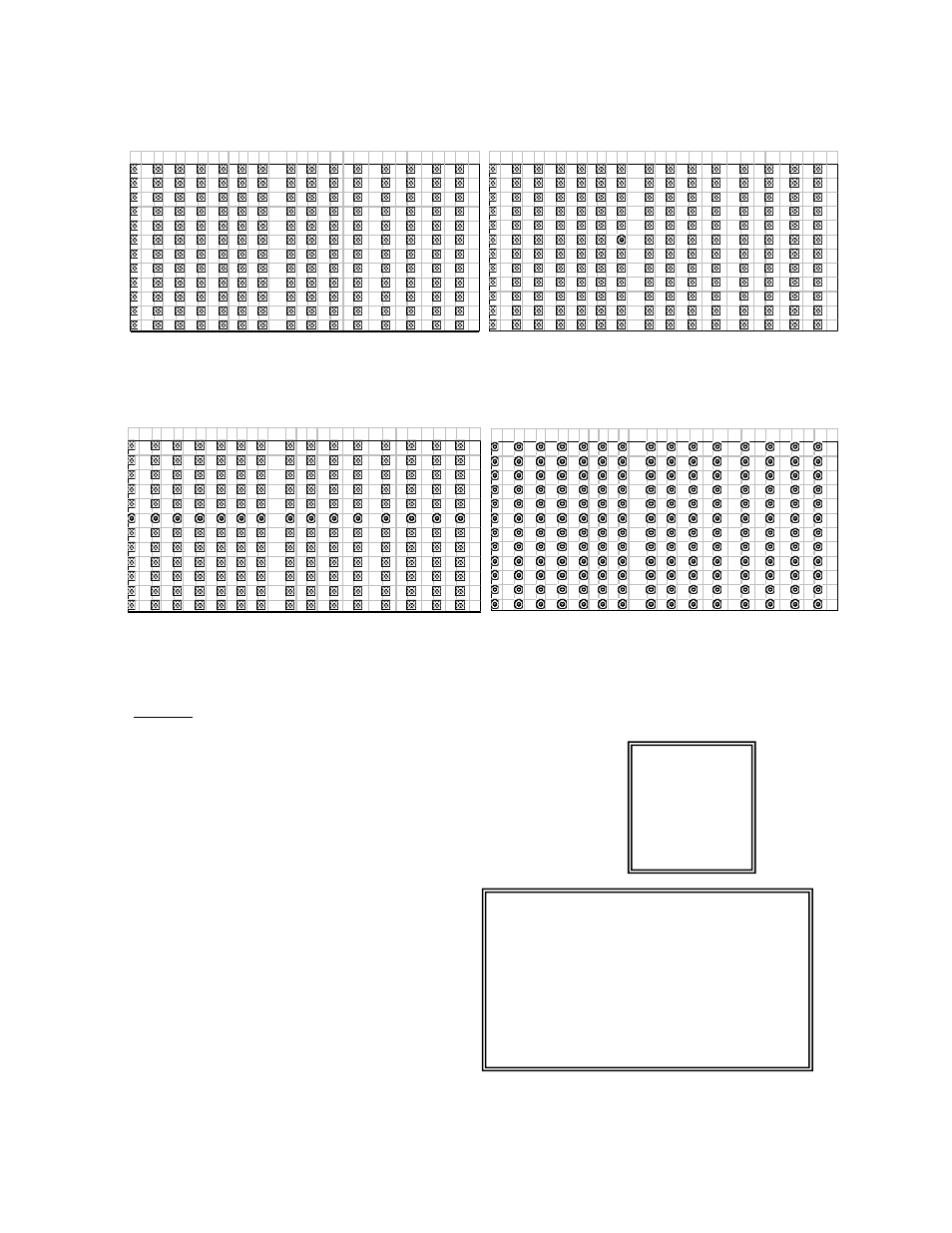

Figure 1-1 MOTION DETECTION SETUP — 1~15
Figure 1 MOTION DETECTION SETUP
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
032
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
032
Figure 1-3 MOTION DETECTION SETUP-- ALL
Figure 1-2 MOTION DETECTION SETUP-- LINE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
--
--
--
--
--
--
--
--
--
--
--
--
--
--
--
032
032
EVENT
There are only 16 recorded events shown on a single page. Press “◄ ” or “► ” to
change the pages or press ▲ + ▼ to CLEAR the EVENT record.
(MENU)
TIMER
RECORD
CAMERA
SYSTEM
►
EVENT
M–HDD WARNING 2002-JAN-01 03:00:00
M–HDD LOSS 2002-JAN-01 03:00:00
M–HDD ERROR 2002-JAN-01 03:00:00
M–HDD WARNING 2002-JAN-01 03:00:00
HDD FULL 2002-JAN-01 03:00:00
SYSTEM ERROR 2002-JAN-01 03:00:00
----02 VLOSS 2002-JAN-01 03:00:00
----03 ALARM 2002-JAN-01 03:00:00
◄
: PAGE UP ►: PAGE DOWN
▲
+▼
: CLEAR
M-HDD WARNING: Master HDD might fail.
M-HDD LOSS: Master HDD does not exist. Now user can use the other HDD.
M-HDD ERROR: Master HDD might be error
HDD FULL: HDD is full
SYSTEM ERROR: System might fail
----02 VLOSS: Channel: 2 Video loss
----03 ALARM: Channel: 3 External I/O Alarm have triggered
POWER RESTORE : Power restored
