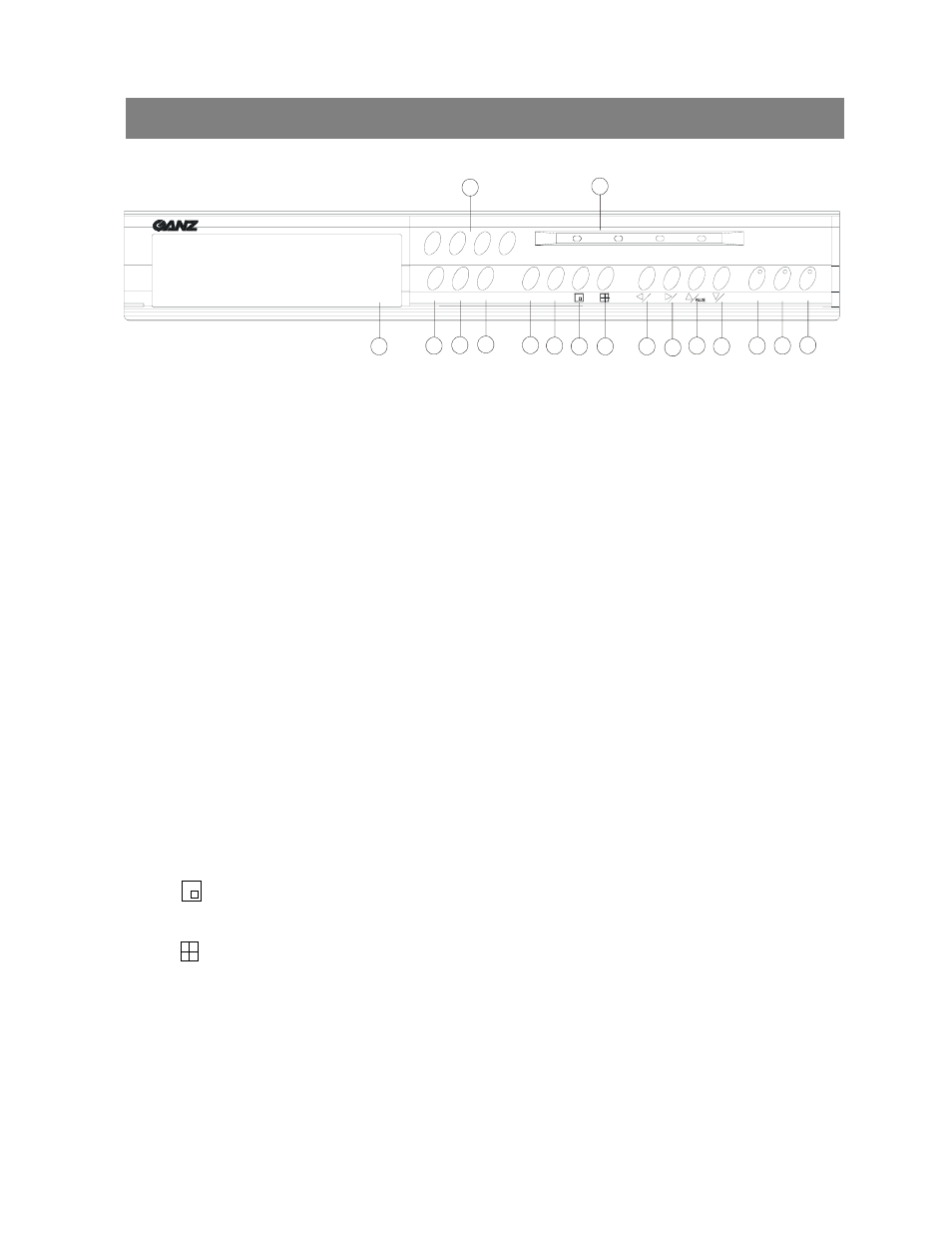

FRONT PANEL
DVR
4 2 1 3
HDD HDD FULL
REW FF STOP
TIMER ALARM
POWER PLAY REC
CDR-04S
ENTER MENU SEARCH SLOW Z0 0M
1
2
3 4 5 6 7 8 9 10 11 12 13 14 15 16
17
1. REMOVABLE HDD CARTRIDGE
Please refer to page 19, Appendix #1.
2. LED LIGHT
The LED Light is ON under following conditions.
‧
HDD Full : HDD is full
‧ ALARM : If you want to turn off the ALARM LED light, please refer to page.13 and set the
Camera / ALARM item as OFF. (all of the cameras should be set as OFF.)
‧ TIMER : When Timer is set as Enabled
‧ PLAY : On Play mode
‧ REC : On Recording mode
3. MENU
Press MENU to enter main menu.
4. ENTER
Press ENTER for confirmation.
5. SEARCH
Press SEARCH for searching recorded video.
6. ZOOM
Press ZOOM to enlarge the picture display.
7. Picture in Picture
Press PIP button for Picture in Picture screen.
8. 4-Channel Display Mode
9. STOP / Down
‧ STOP : Under DVR Record/Play mode, press 2~ 3 seconds then release it to stop recording.
.
‧ DOWN : Under setup mode, it works as Down button.
10. PLAY
Press PLAY to playback recorded video.
5
