Audio Adapter
The NTN8654 Audio Adapter connects an earpiece microphone to your
i2000 phone for privacy and hands-free operation.
The Audio Adapter Þts onto the bottom of the i2000 phone and provides
a standard 2.5mm jack connection for an earpiece microphone
(NTN8367) or headset.
Using the Audio Adapter

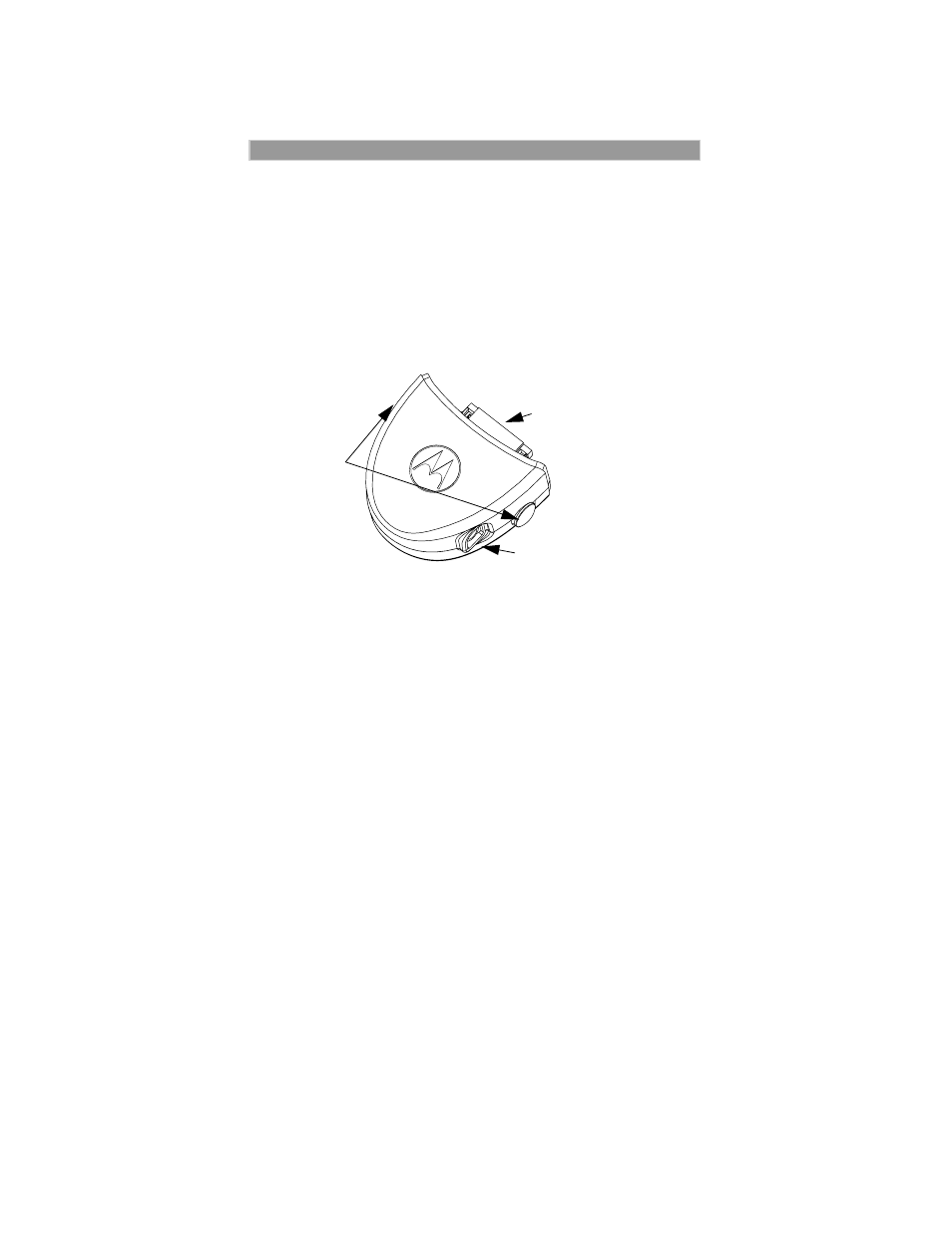

Figure 6. Using the Audio Adapter
1. Hold the phone and the Audio Adapter facing you so that you see
the Motorola logo on the adapter.
2. Insert the Audio AdapterÕs connector into the i2000 phone
receptacle. You will hear the connector snap into place.
Attaching/Detaching the Earpiece Microphone
1. Insert the 2.5mm plug of the earpiece microphone cord into the
jack of the Audio Adapter.
2. Pull on the plug, not the cord, to remove the earpiece microphone.
Removing the Audio Adapter
1. Press the button on the front of the Audio Adapter. The front
displays the Motorola logo on the button.
2. Pull the Audio Adapter from the i2000 phone.
Audio Adapter
Connector
2.5mm jack
Buttons
