3. Pull the accessory connector from the bottom of the i2000 phone.
Vehicular Battery Charger Operating SpeciÞcations
Operating voltage range: 10.8 - 33.0 Vdc.
Operating temperature range: -30¡C to +60¡C
Desktop Dual-Pocket Charger
The NTN8968 Desktop Dual-Pocket Charger charges Motorola
authorized batteries, as listed on page 56, for the i2000 phone. To charge
a battery, see Figure 5.
Charging a Battery

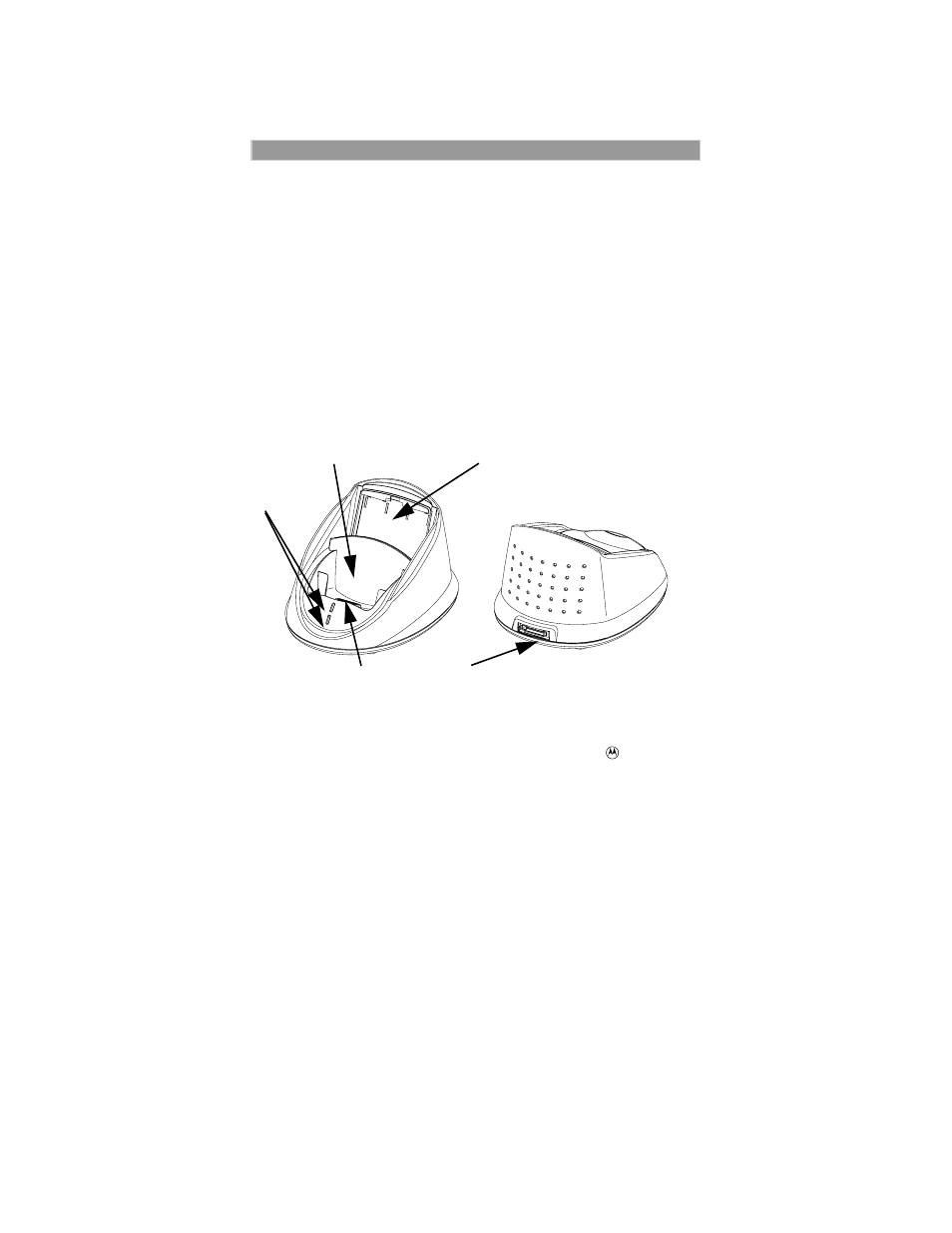

Figure 5. Desktop Dual-Pocket Charger
1. Plug the ßat end of the power-supply cord, with the
logo facing
down, into the receptacle labeled ÒChargingÓ on the back of the
charger.
2. Plug the transformer end of the power-supply cord into any
standard AC wall outlet.
3. Insert an i2000 phone with an attached battery, into the charger's
front pocket. This is done by inserting the bottom of the i2000
phone onto the pin connector in the bottom of the charger's front
pocket.
Rear Pocket
Front Pocket
Pin Connector
Power supply cord receptacle
LED
