Page 57
Service Manual
Disassembly and Reassembly
3-21
Samsung Electronics

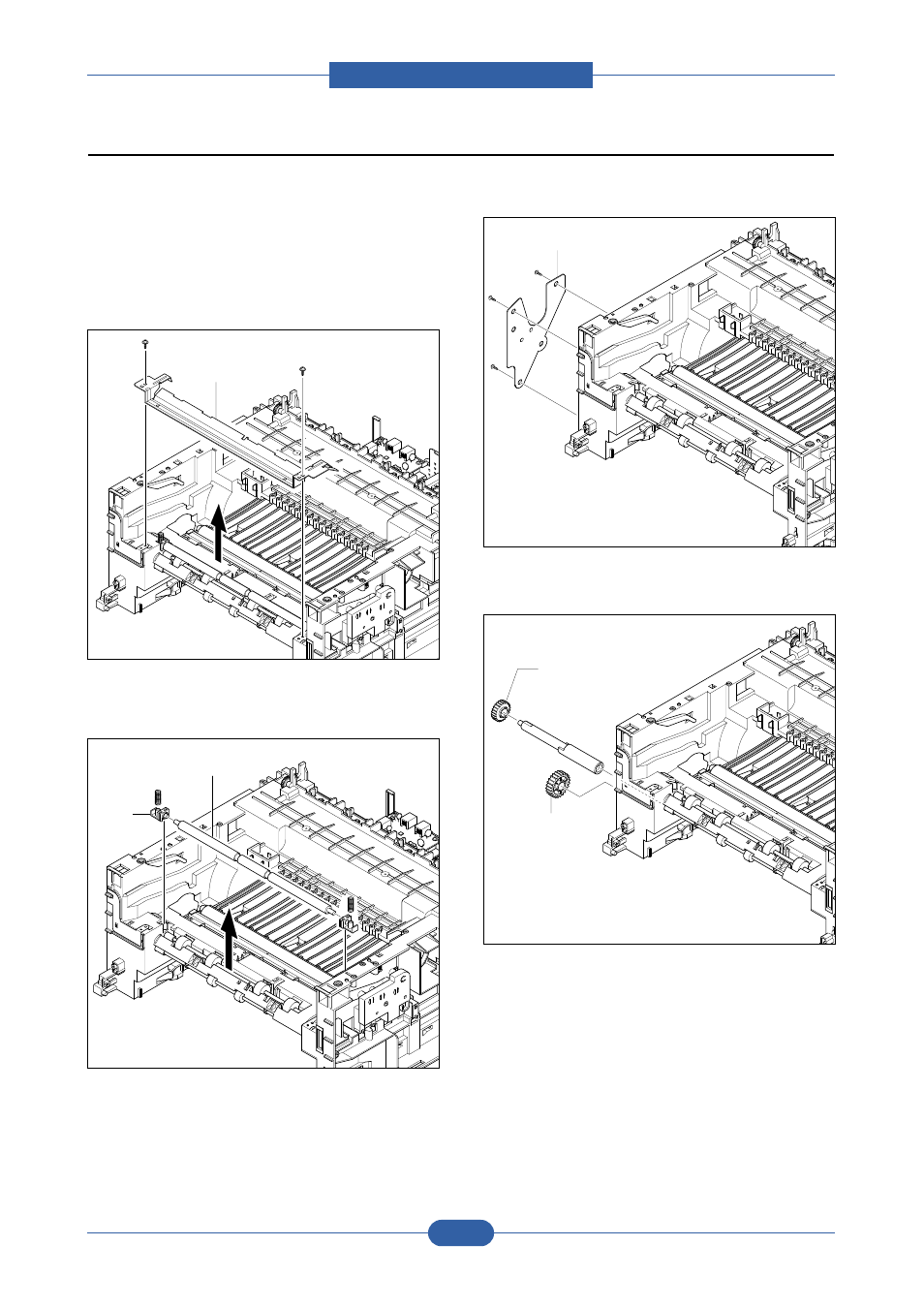

1. Before you remove the Feed Ass'y, you should
remove:
- Scan Ass'y (see section 3.11)
- Drive Ass'y (see section 3.15)
- LSU (see section 3.18)
2. Remove the two screws securing the Paper Guide
and remove it.
3. Pull up the Feed Idle Bush and Feed Idle Shaft, as
shown below.
4. Remove the three screws securing the Feed Bracket
and remove it.
5. Remove the Idle Gear and Feed Gear2.
3.24 Feed Ass'y
Paper Guide
Bush
Feed Idle
Shaft
Feed Bracket
Feed Gear2
Idle Gear
