23 transfer ass'y – Muratec DIGITAL LASER F-114 User Manual
Page 56
Service Manual
Disassembly and Reassembly
3-20
Samsung Electronics

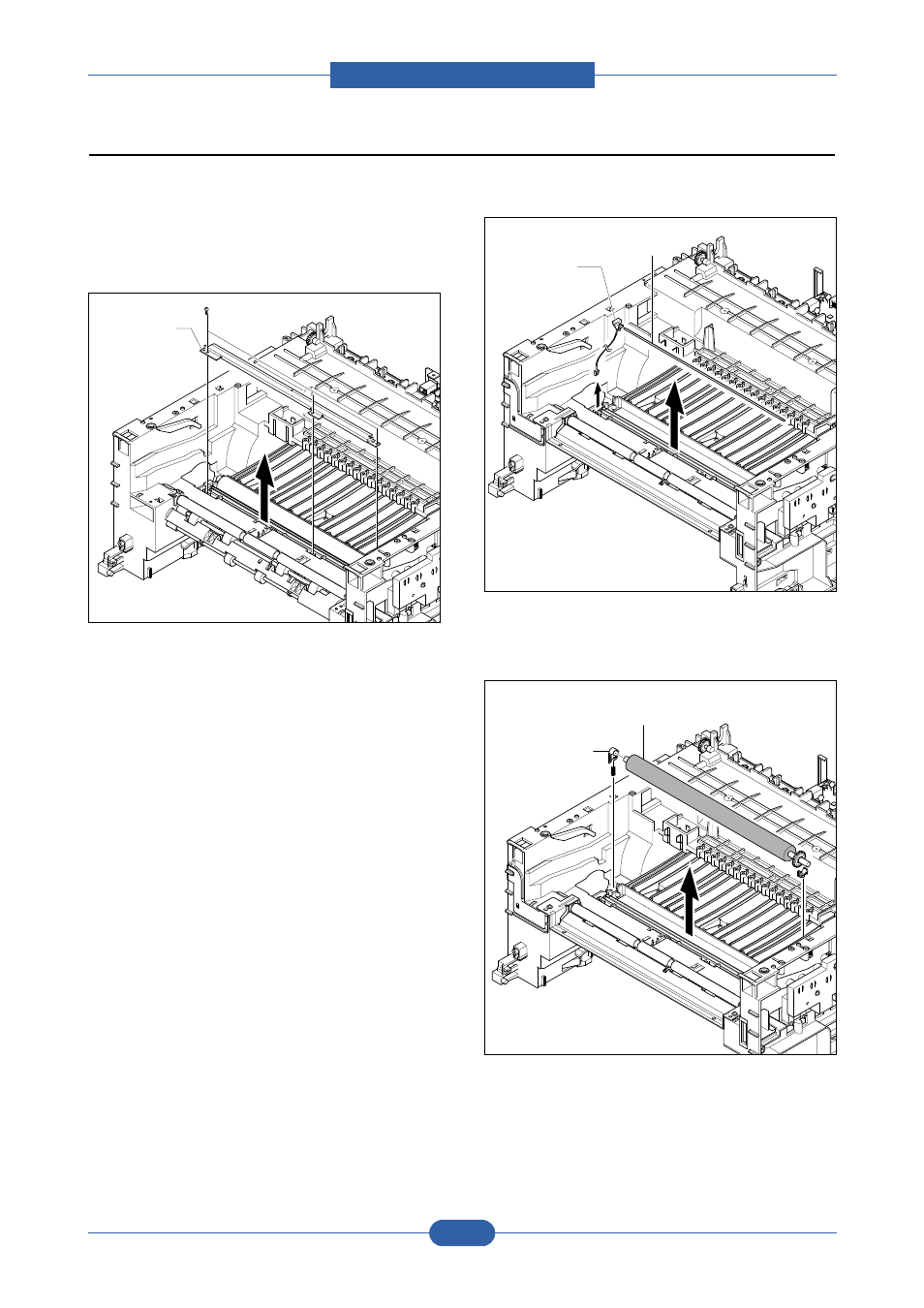

1. Before you remove the Transfer Ass'y, you should
remove:
- LSU (see section 3.18)
2. Remove the three screws securing the Transfer Earth
and remove it.
3. Unplug the PTL Holder connector, then remove the
PTL Holder and PTL Lens, as shown below.
4. Release the frame latch at the R side of the Transfer
roller and lift the roller out. Release the latch on each
bush and lift them out.
3.23 Transfer Ass'y
Transfer
Earth
PTL
Holder
PTL
Lens
Bush
Transfer
Roller
