21 smps – Muratec DIGITAL LASER F-114 User Manual
Page 53
Service Manual
Disassembly and Reassembly
3-17

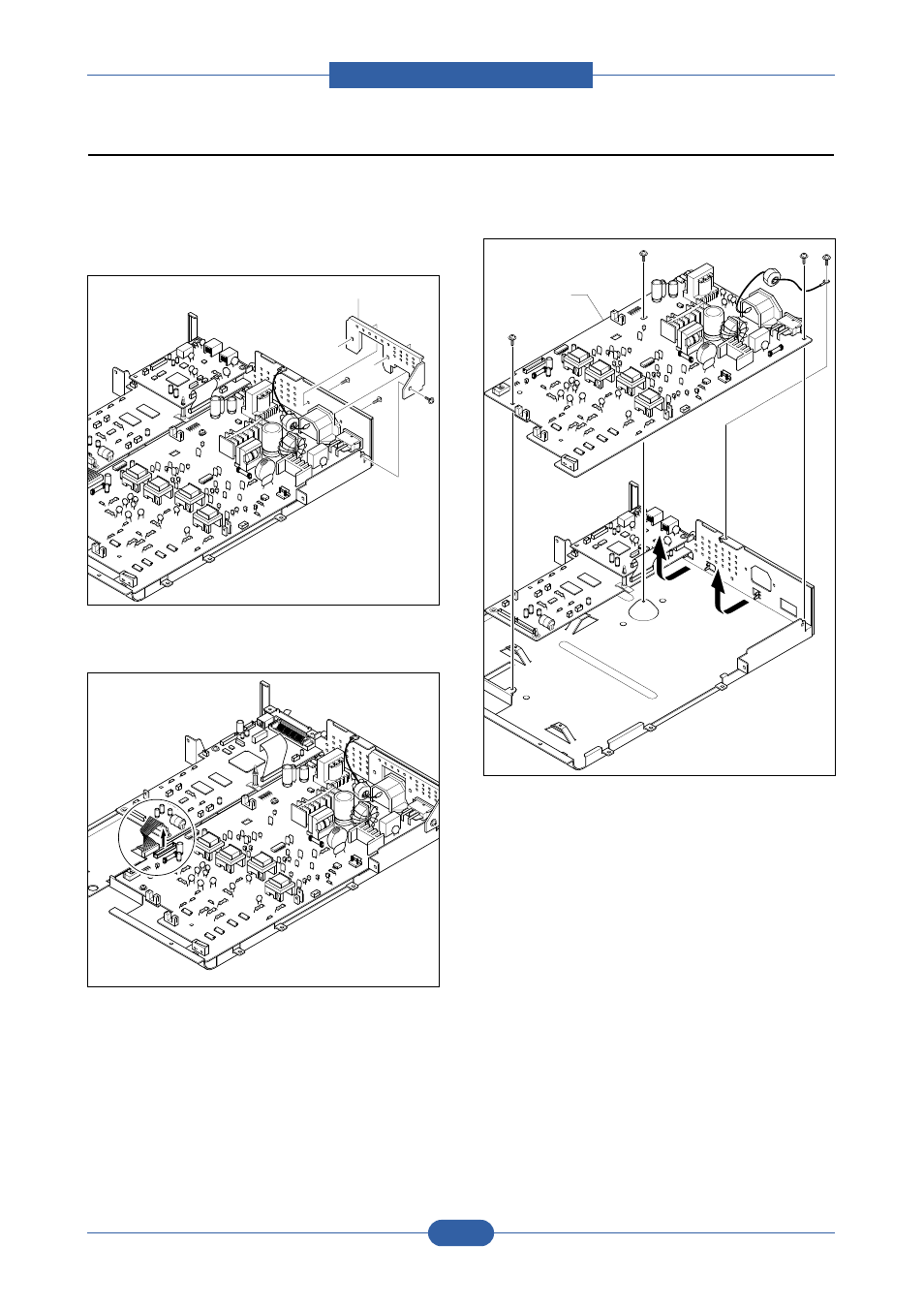

1. Before you remove the SMPS, you should remove:
- Engine Shield Ass,y (see section 3.19)
2. Remove the three screws securing the Inlet Bracket
and remove it.
3. Unplug one connector.
4. Remove the four screws securing the SMPS and
remove it. Then Lift the SMPS out, as shown below.
3.21 SMPS
SMPS
Inlet Bracket
