Service Manual
Disassembly and Reassembly
3-11
1. Before you remove the ADF Roller, you should
remove:
- Rear Cover (see section 3.3)
- Side Cover L (see section 3.4)
- Side Cover R (see section 3.5)
- Front Cover (see section 3.10)
- Scan Ass'y (see section 3.11)
- Scan Motor Ass'y (see chapter 3.12)

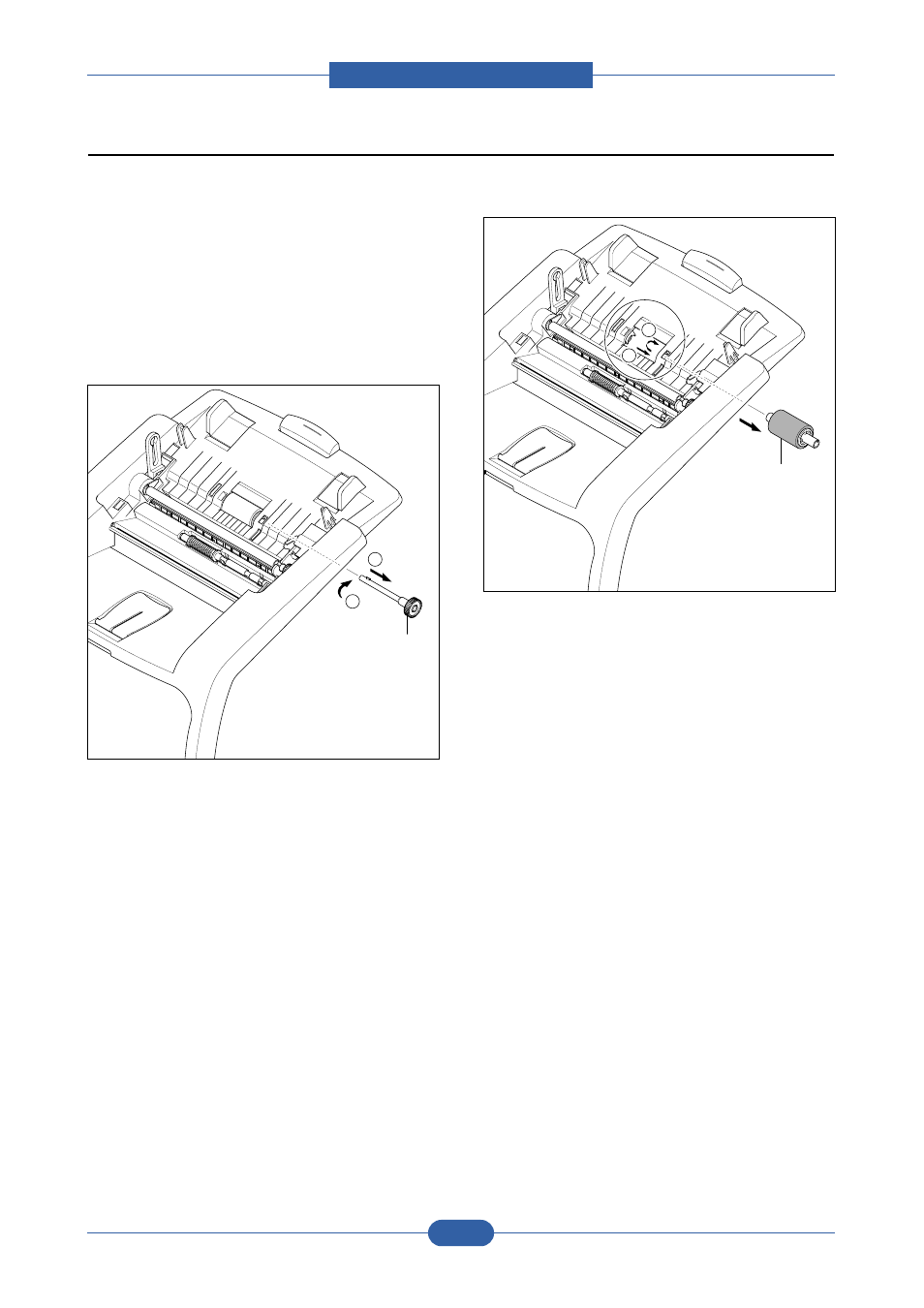

2. Carefully release the ADF Gear from the ADF Roller,
as shown below.
3. Carefully release the ADF Roller from Top Cover in
the direction of the arrow, as shown below.
3.13 ADF Roller
2
1
ADF Gear
1
2
ADF Roller
