CSDV Series Direct Vent Gas Stove
CLEARANCES / HEIGHT REqUIREmENTS
ON
OF
F
A
C
B
ST1132

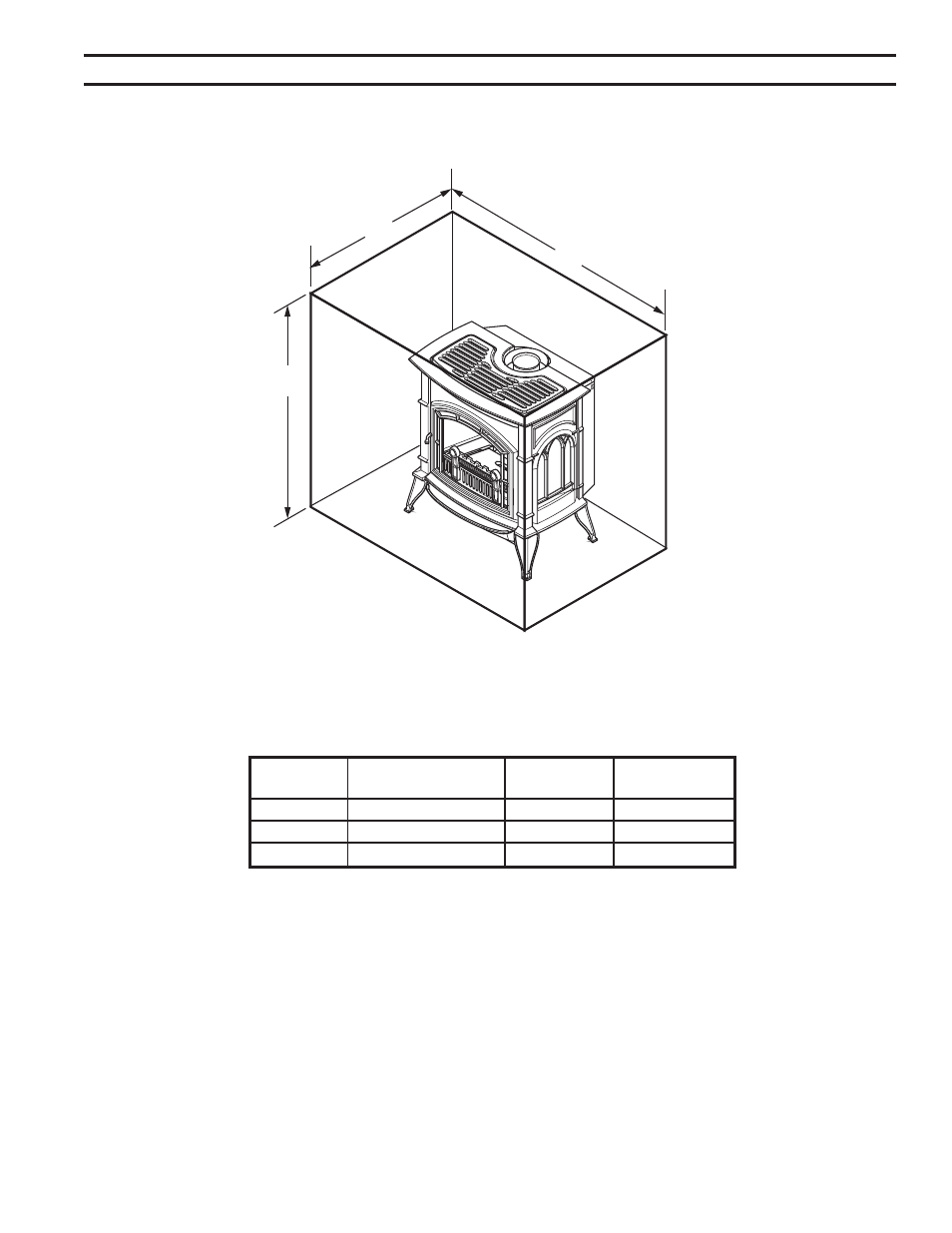

alcove clearances
Figure 5 -
Alcove Clearances
ST1132
Alcove minimum Dimensions
Height from Hearth
Width
Depth
model
A
B
C
CSDV20
52" (1321 mm)
30" (762 mm) 36" (914 mm)
CSDV30
64" (1626 mm)
35" (889 mm) 36" (914 mm)
CSDV40
64" (1626 mm)
35" (889 mm) 36" (914 mm)
NOTE: Maintain minimum side and back clearances
when placing stove in alcove.
