Monessen Hearth CSDV40SLP - Manual (Page 25)

58D6056
25
CSDV Series Direct Vent Gas Stove
REmOTE WALL mOUNTED SWITCH
A remote wall switch and up to fifteen (15) feet of 18 Ga. wire may be used with this appliance.
Attach the wall switch in a junction box at the desired location on the wall. Figure 35. Do not extend
beyond the wall switch wire length provided.
NOTE: Extended lengths of wire may cause the fireplace not to function properly. Longer
length of wire is permitted if the wire is made out of larger gauge (diameter) wire. Always
check with local code.

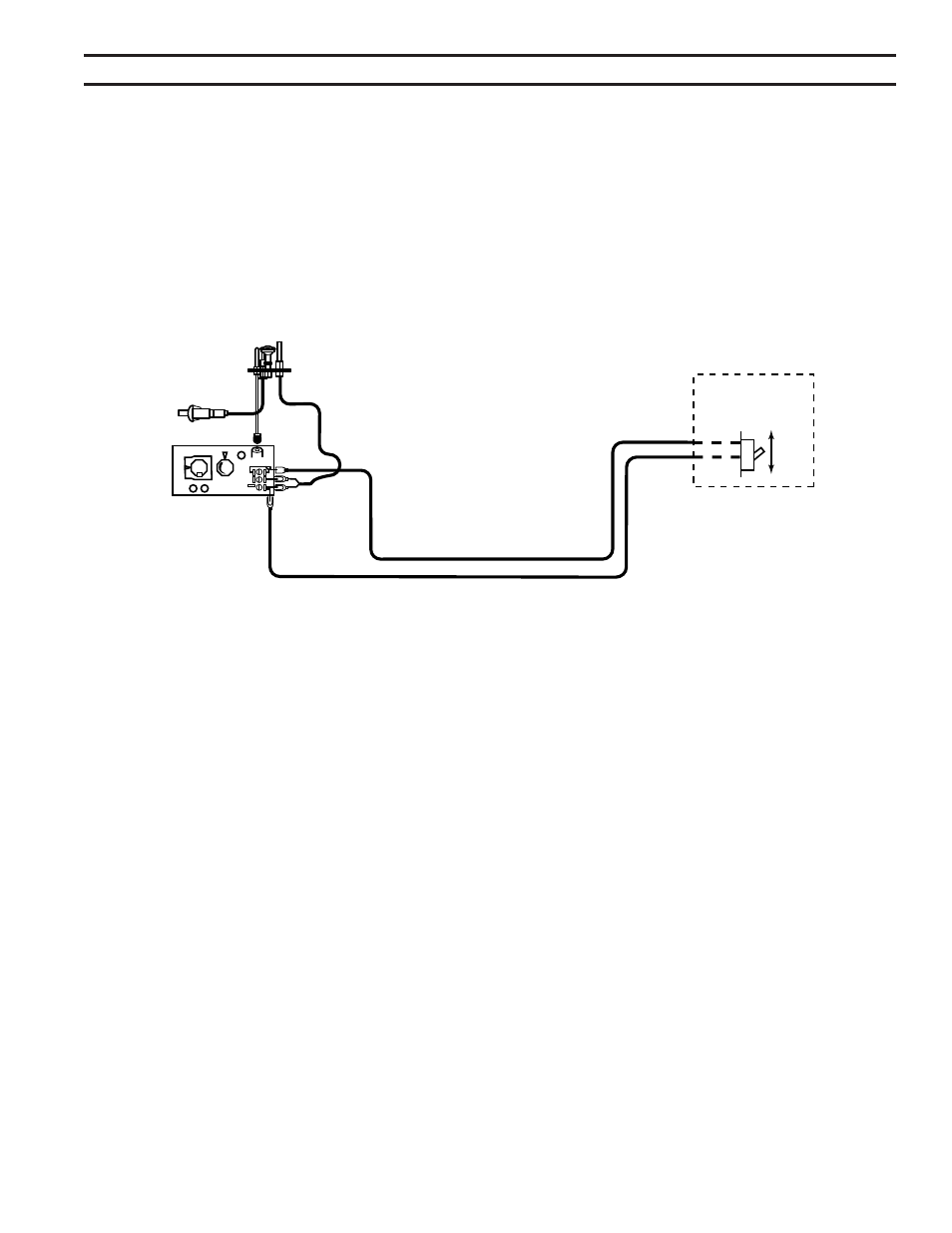

Figure 35 -
Wiring Diagram for Wall Switch
ELECTRICAL INSTALLATION
ON
OFF
OPTIONAL REMOTE
WALL SWITCH
PILOT HI
LO
ON OFF TH
TP
TH/TP
ST1148
wiring diagram
