CSDV Series Direct Vent Gas Stove
W
ARNING
CLEARANCES
CLEARANCES TO COmBUSTIBLES
The dimensions shown in Figures 4 and 5 are minimum clearances to maintain
in installing this heater. Left and right clearances are determined when facing
the front of the heater.
Follow these instructions carefully to ensure safe installation. Failure to follow
instructions exactly can create a fire hazard.
The appliance cannot be installed on a carpet, tile or other combustible material
other than wood flooring. If installed on carpet or vinyl flooring, the appliance
shall be installed on a metal, wood or noncombustible material panel extending
full width and depth of the appliance.
A
E
Minimum
D
Minimum
to Either
Side Wall
ST1128
sidewall clearance
Ceiling
Mantel
Side
Wall
Side
Wall
ST1128
Front View
B
C
F
Minimum
36” (914 mm)
in Front
St1129
mantel clearances
Ceiling
Side View
ST1129
G
G
ST1130
corner clearance
Corner
Installation
ST1130
F
Minimum
D
Minimum
to Either
Side Wall
ST1131
sidewall clearance
Wall Installation
ST1131
mantel Clearance from Corner
Top of Unit Side measured from Top Rear measured
min. Ceiling max measured From Top
from Floor protrusion Height Right Left From Back Corners
product A B C D E F G
CSDV20 72" (1829 mm) 12" (305 mm) 22" (559 mm) 4" (102 mm) 4" (102 mm) 1" (25 mm) 1/2" (13 mm)
CSDV30 72" (1829 mm) 12" (305 mm) 34" (864 mm) 4" (102 mm) 4" (102 mm) 1" (25 mm) 1/2" (13 mm)
CSDV40 72" (1829 mm) 12" (305 mm) 34" (864 mm) 4" (102 mm) 4" (102 mm) 1" (25 mm) 1/2" (13 mm)

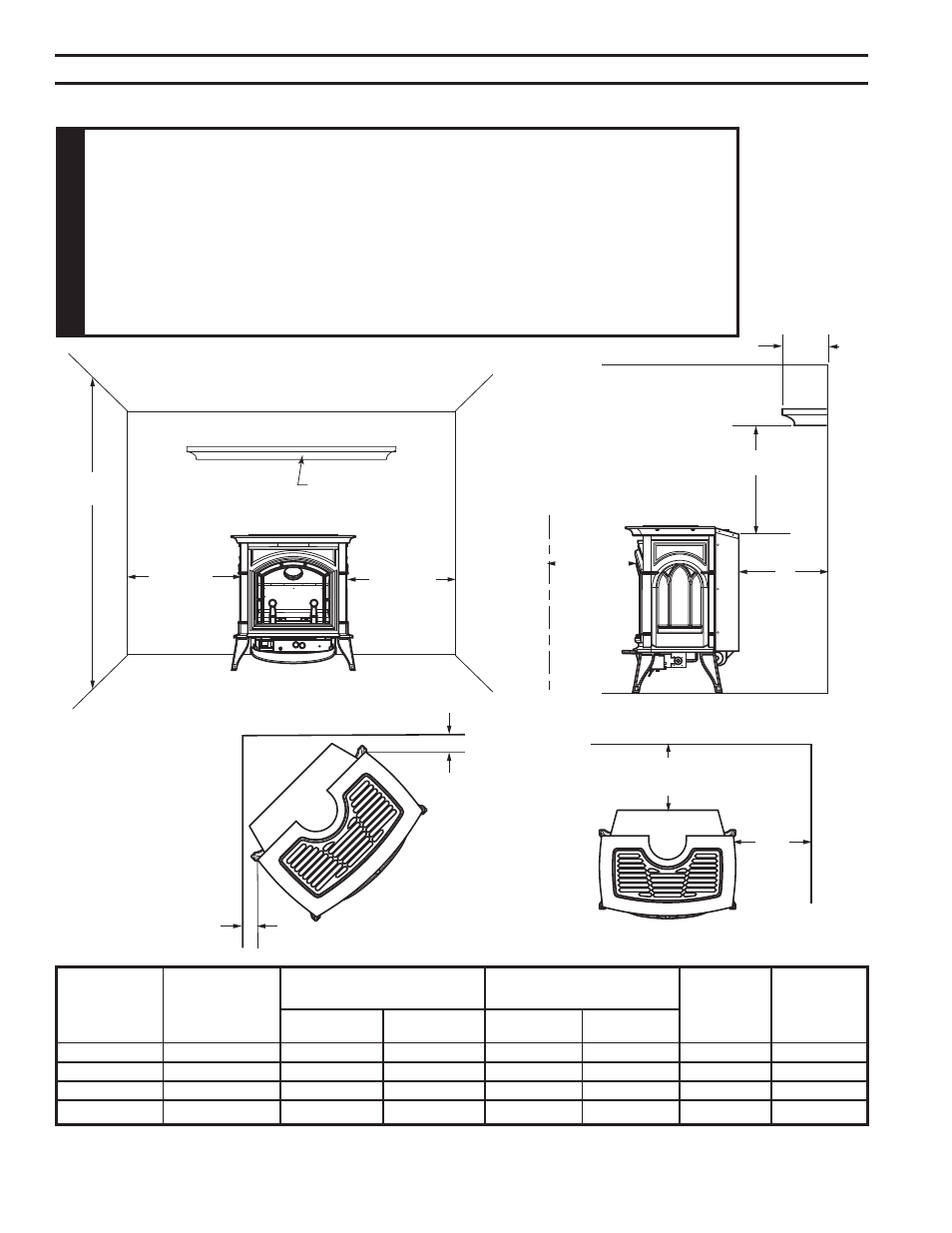

Figure 4 -
Minimum Clearances
to Walls and Ceiling
