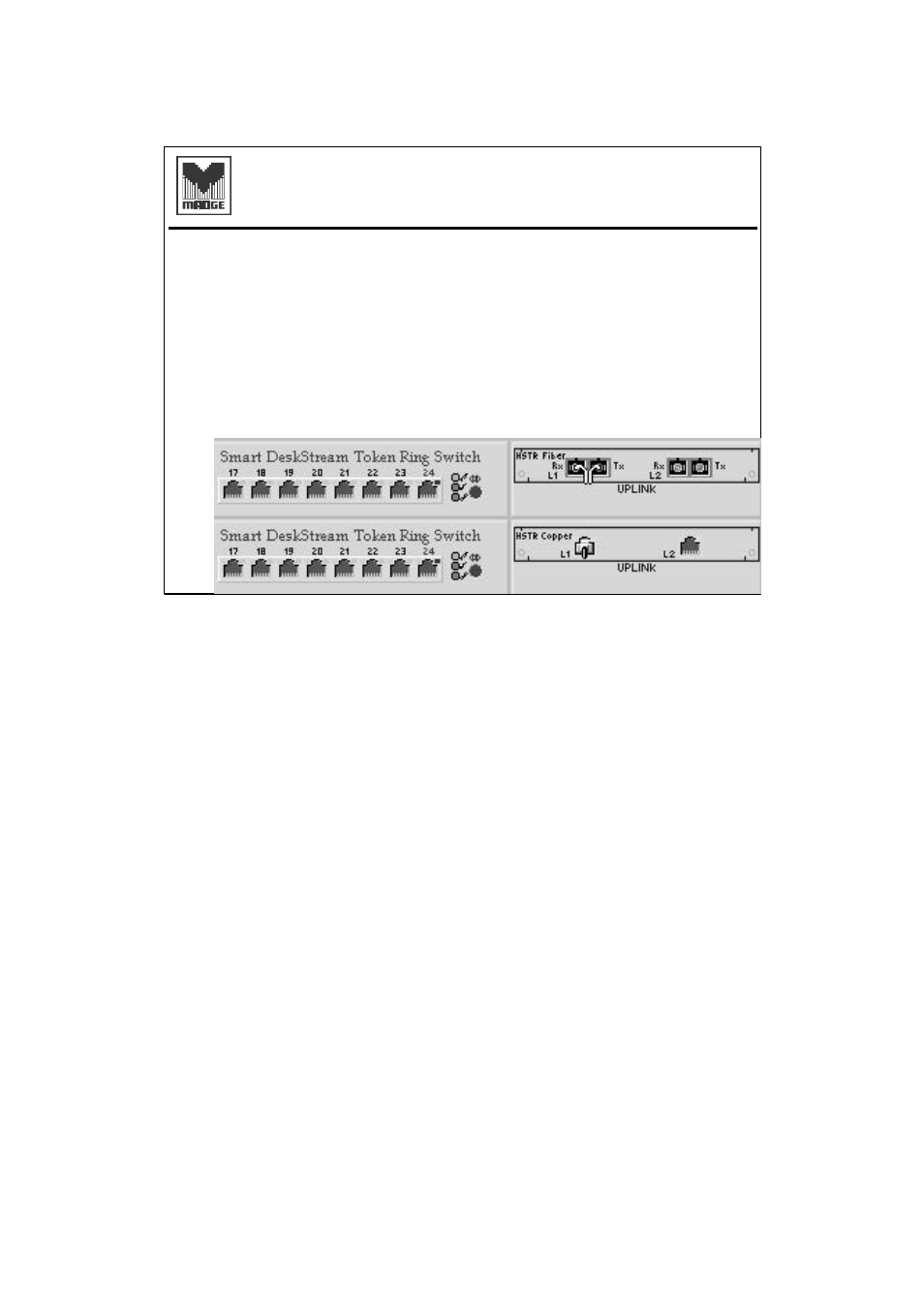

Smart DeskStream Technical Presentation 30
n Dual Link HSTR Connectivity
n Each link supports 100Mbps Full Duplex DTR
n Compatible with IEEE 802.5t
n Copper module uses RJ45 connectors
n Fiber module uses SC connectors
n Links operate independently
n Offer redundant links / load sharing
n Each link can be set to Master or Slave mode
High Speed Token Ring
HSTR Copper and Fiber Modules - 1
As with the Ringswitch HSTR module this only supports 100Mbps full
duplex DTR and is fully compatible with IEEE 802.5t, the HSTR
specification.
There are two HSTR modules:
Copper which uses RJ45 connectors and
Fibre which uses SC connectors
As we saw with the standard TR module, each port is independent
and can be used in the same ways with other HSTR components.
