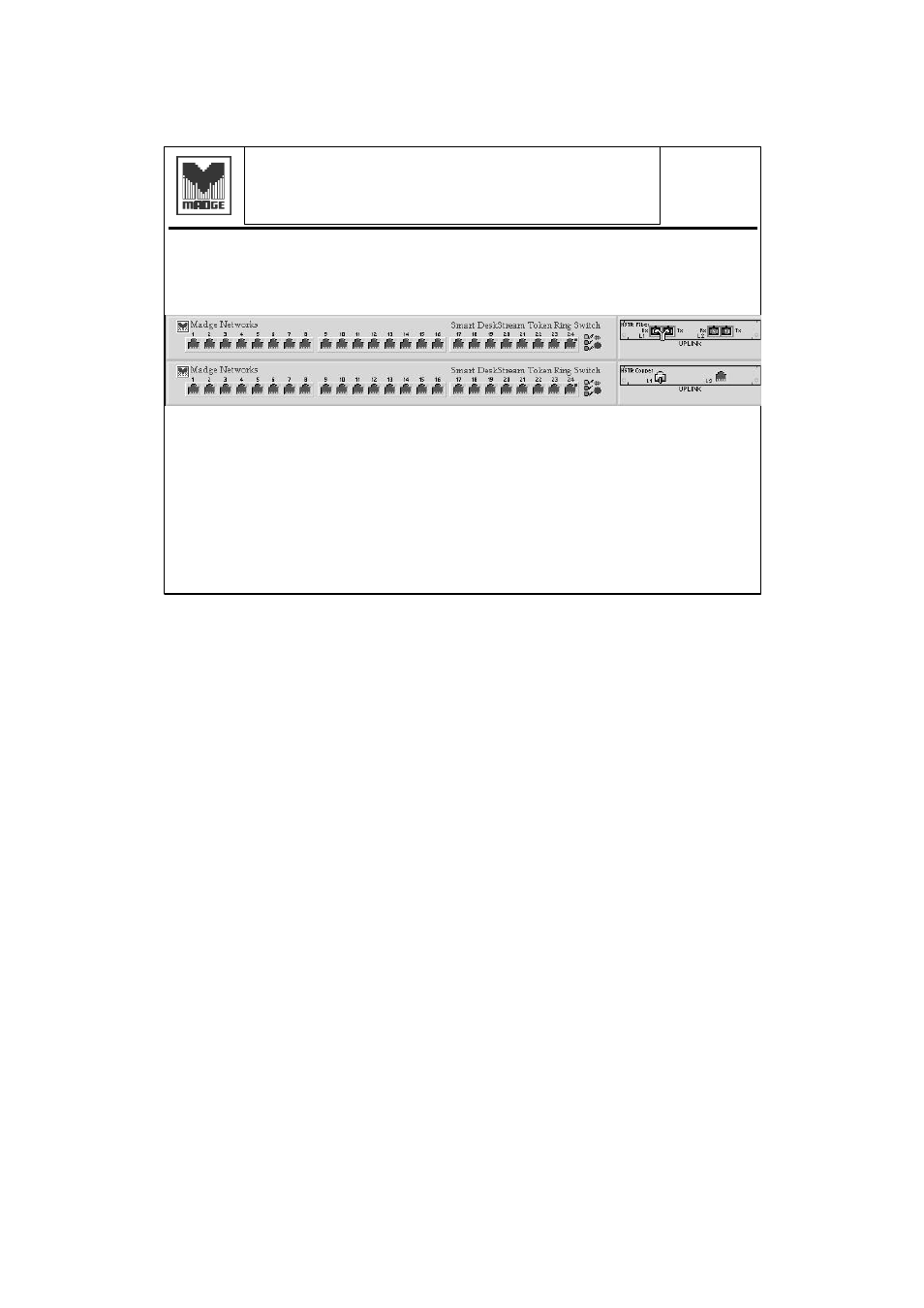

Smart DeskStream Technical Presentation 26
Uplink Connectivity
The icon will display all the uplink ports which exist on
the stack
Select individual ports for management
Link 1 is port 25 and Link 2 is port 26
Managing the Uplink Module
The uplinks are, to a large extent, just two more ports similar to port
24 in that the port type can be configured. They are numbered 25 and
26. In a stack each port is known by the DeskStream number in the
stack followed by the port number e.g. 2.21 - this is the second
Deskstream (counting up from the master (1)) and port 21.
