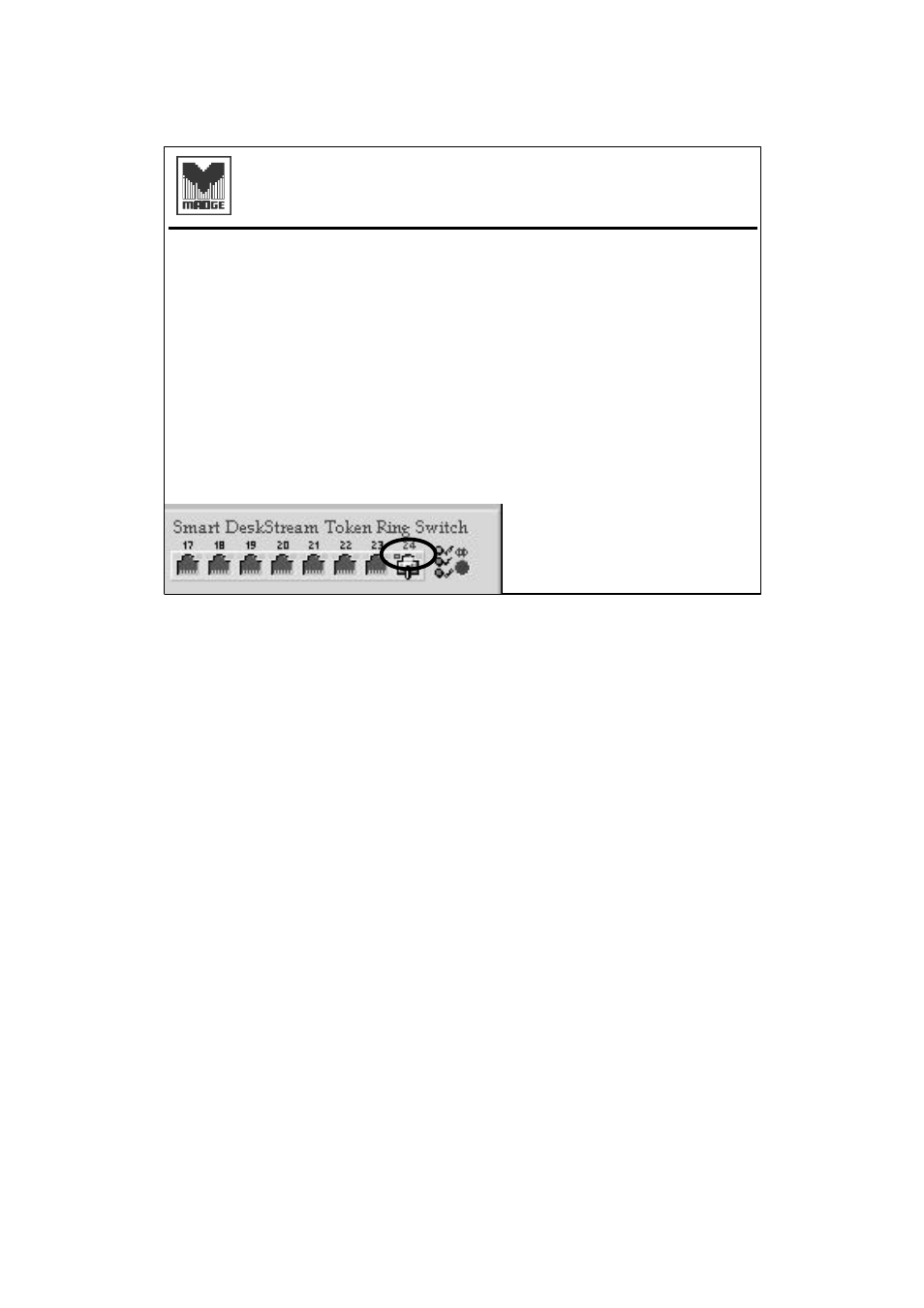

Smart DeskStream Technical Presentation 17
n
Left Port LED:
n
Green - Port open
n
Flashing green - Disabled
n
Right Port LED:
n
Red - Port closed
n
Flashing red - Error
n
Port 24 will flash red by default (because it is
master as default)
Connectivity
Ports - LEDs
Left LED - flashing green; disabled by management software
Right LED - red. This happens when a connection is made against
the configured set up e.g. workstation connects with a non DTR
driver into a manually configured DTR port
