53

• The best picture quality in Playback(JPEG-2000)
• Real time live display in all channels
• 16 channel video 480(400)ips recording capability
• Triplex (Playback/Recording/Ethernet)
• Multi-language menu
• Remote monitoring and download through network
• Convenient search function with Jog/shuttle
• VGA option available (Supporting TFT LCD Monitor)
• USB (Device) port for firmware upgrade
• Easy PTZ camera control by pre-assigned buttons
• Password Protection
• Remote Controller

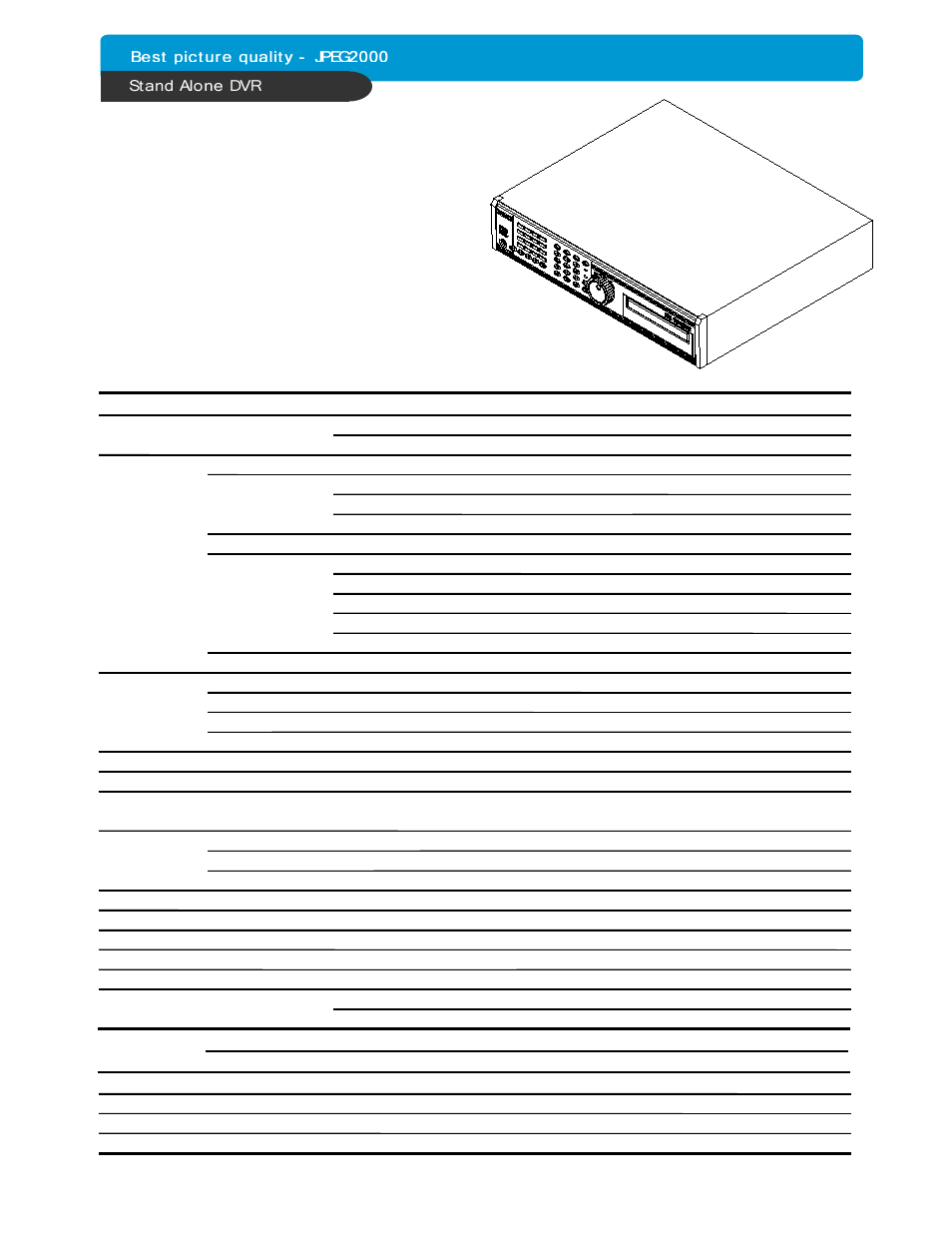

CHAP. 8 Specifications

CHAP. 8 Specifications

AUDIO

Input

Output

4CH Microphone Input

1CH Speaker Output

Multiplex function

Triplex (Playback/Recording/Ethernet)

Storage

Internal

HDD

Up to 2 HDDs with no limitation in capacity (SATA HDD support)

Capacity

CD-RW

For Backup

Video

Inputs

Composite

16Ch

Outputs

Composite

2Ch (Monitor / SPOT)

VGA

1Ch (Supporting TFT LCD Monitor/Option)

Loop out

16Ch

Compression

JPEG-2000

Compression Rate

Basic

(Image size fixed)

Normal

Enhanced

Fine

Super Fine

Display Speed

Real Time display

Recording

Recording Mode

Schedule (Time, Motion, Alarm), Emergency

/Search

Search

Event Search, Date/Time Search, Search Bar (Jog/Shuttle)

Recording Speed (NTSC/PAL)

Full (120/100), Dual (240/200)

Recording Resolution (NTSC/PAL)

Full (720x240/720x288), Dual (360x240/360x288)

Multi-language

English, Spanish, German, Italy, France, to be added more

Switching Interval

1~99 sec selectable

Live Division Screen

1 / 4/ 6/ 8/ 9/ 13/ 16 Split

Digital Zoom, Freeze function available in Live mode, PIP, SEQ

Alarm

Inputs

16 Alarms (NO/NC selectable in SETUP menu)

Outputs

1 (NO/NC)

Post Alarm

Duration of alarm output : 1 sec ~ 300 sec selectable

Motion Detection

Area division : 16 x12 / Detection Division : 32 x 24

Network

Ethernet (TCP/IP), Remote viewer program included

Backup

VCR, CD-RW back-up, USB backup, Download via IP Network

PTZ Control

RS-485, Key Control( Key assigned for each PTZ command)

Firmware upgrade

USB port for firmware upgrade, CD-R

Serial I/F

RS-485

For PTZ camera control

RS-232C

For operation using keyboard of PC

Power Requirements

DC 12V 6.67A Adaptor

Weight

8.5kg

Dimensions (WXHXD) mm

436 X 396 X 88

Packing

600 X 520 X 180

Design and specifications are subjected to changes without notice
