10

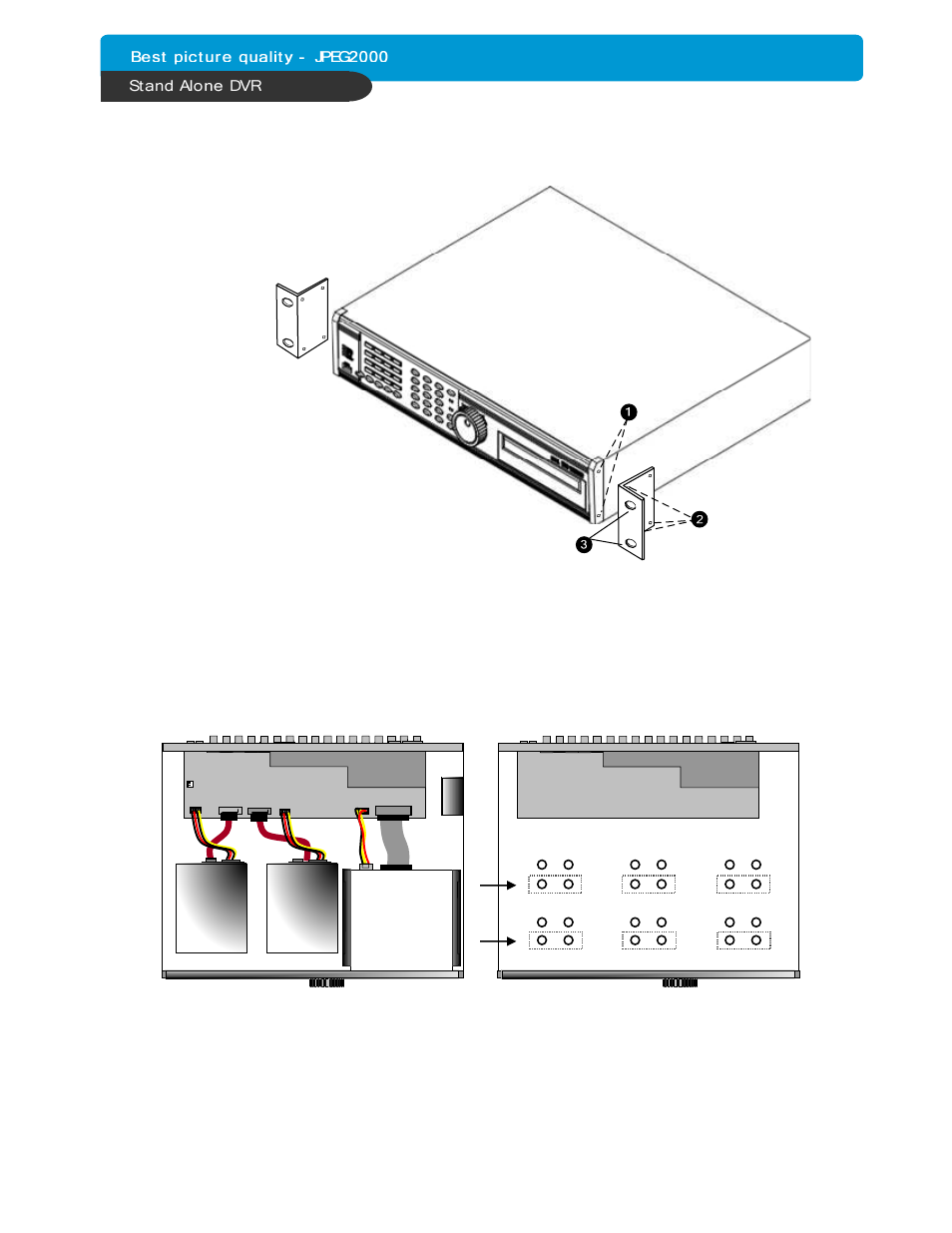

1) Rack mount

1.

Remove 4 bolts on each side cap to

install rack mount.

2. Attach rack mount bracket to DVR.

3. Attach DVR with rack mount bracket to 19” rack.

2) HDD

CHAP. 3 Installation

3-2. Detailed Installation

MAIN BOARD

x x

x x

x x

x x

x x

x x

I/O BOARD

I/O BOARD

CD -RW

(

MASTER

)

MAIN BOARD

HDD1

HDD2

HDD1 HDD2

Connection of HDD Cable

HDD fix

1. Connect Main Board and HDD using SATA HDD data cable and HDD power cable.
2. When you use just 1 HDD, install the HDD onto HDD1 location.
3. When you use 2 HDDs, install the first HDD onto HDD1 location and then install the second HDD

onto HDD2 location in order.

4. Stick the HDD absorber (included in package) on the bottom of case and then install the HDD

on top of them by using the bolts (included in package).

5. Screws must be inserted from outside of the case bottom.
