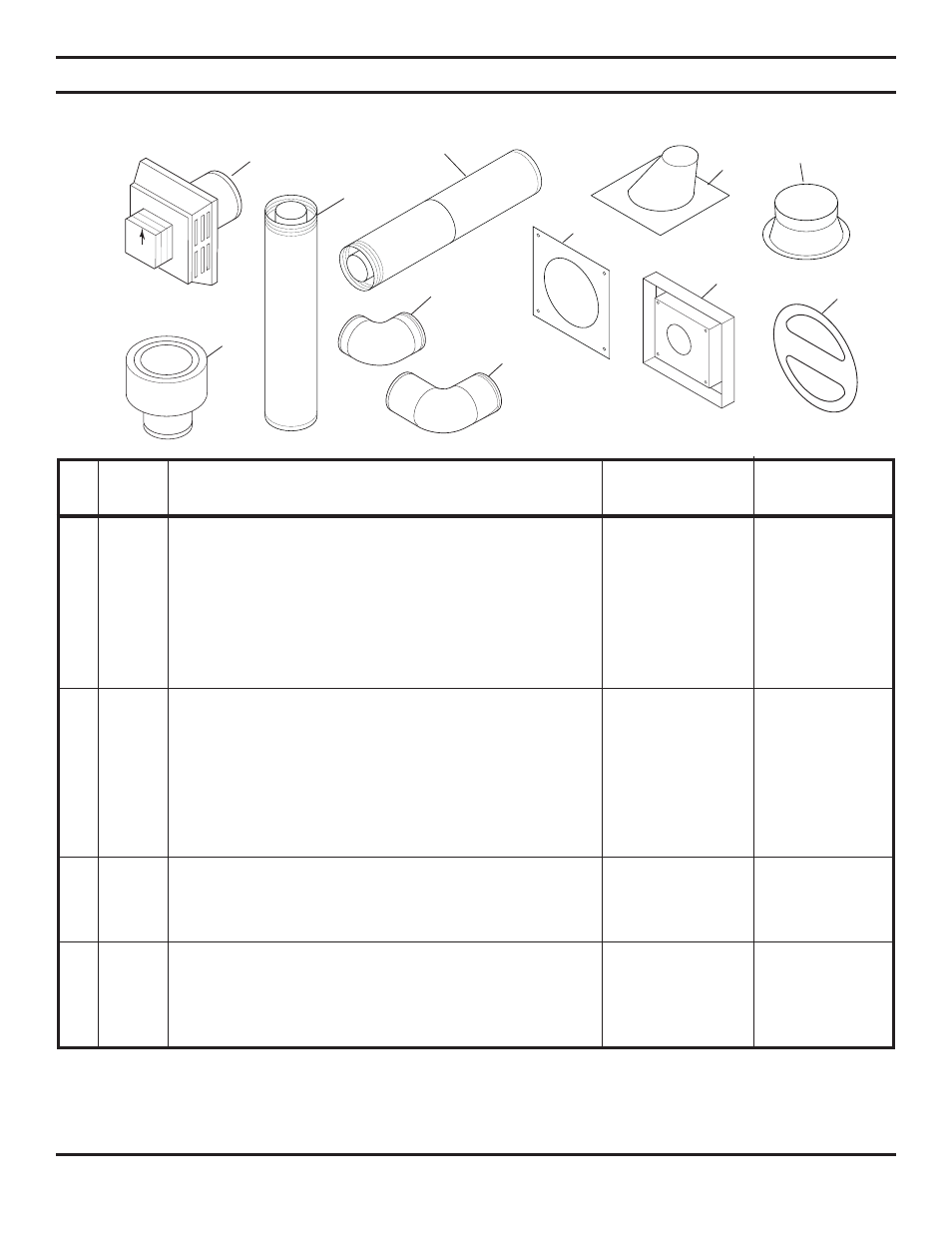

VENT COMPONENTS
ILLUSTRATED PARTS LIST
HOT
1
3
4
5
6
7
8
9
10
2
11
Simpson
Duravent
Item Qty/Box Description
or Monessen P/N
Selkirk
1
1
Simpson Horizontal High Wind Termination Cap
985
4DT-HC
1
1
Horizontal Square Termination Cap with Built-In Vinyl
Siding Standoff, Heat Defl ector and Firestop
BHRTK
1
1
Horizontal Pipe Termination Kit with Horizontal
Termination Cap with Built-In Vinyl Siding Standoff, Heat
Defl ector, Firestop, 11"x14
5
/
8
" Adjustable Pipe and additional
12" Pipe Section for Vertical Rise
BLBHSTK
2
1
Vertical
Termination
980
4DT-VC
3
6
6" Pipe Length
908
4DT-06
3
6
9" Pipe Length
907
4DT-09
3
6
12" Pipe Length
906
4DT-12
3
6
24" Pipe Length
904
4DT-24
3
6
36" Pipe Length
903
4DT-36
3
6
48" Pipe Length
902
4DT-48
4
6
11" To 14 5/8” Pipe, Adjustable
911
4DT-AJ
4
6
17" To 24” Pipe, Adjustable
917
4DT-AJ14
5
6
45°
Elbow
945
4DT-EL45
5
6
45° Swivel Elbow
945G
4DT-EL45
6
6
90°
Elbow
990
4DT-EL90
6
6
90° Swivel Elbow
990G
4DT-EL90
7
6
Flashing, 0/12 To 6/12 Roof Pitch
943
4DT-AF6
8
6
Storm
Collar
953
4DT-SC
9
6
Firestop
963
4DT-FS
10
1
Vinyl Siding Standoff
950
4DT-VS
11
1
Ristrictor Disk
45D0551
For more information about, or instructions for, the venting components referenced above, please contact the component
manufaturer:
Selkirk Corporation: www. selkirkcorp.com or 800-992-8368
Simpson Duravent: www. duravent.com or 800-835-4429
