FINAL INSTALLATION

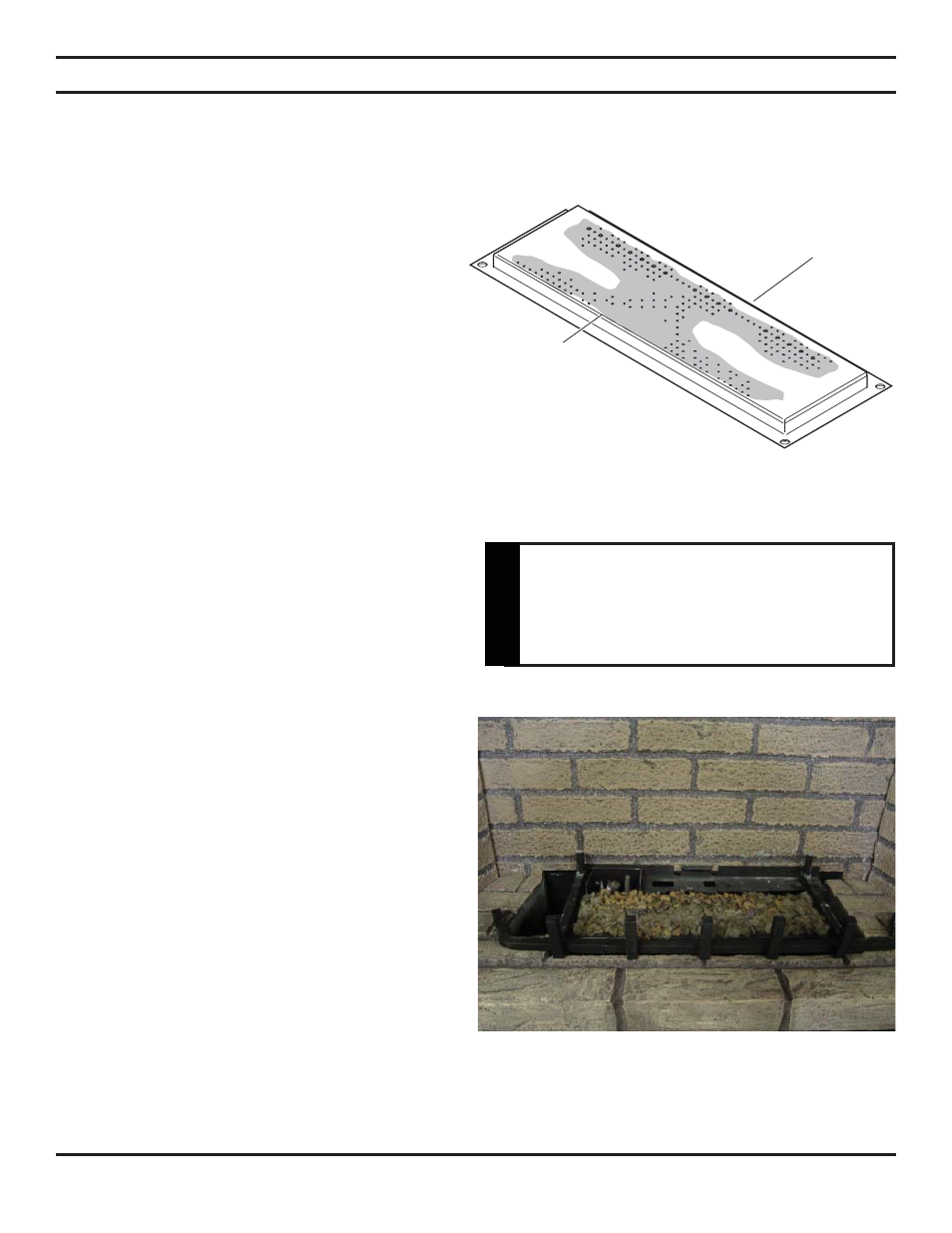

Figure 30 - Rock wool placement
ROCK WOOL PLACEMENT
1. Place rock wool on burner to provide glowing embers.
For best results, pull the rock wool apart into pieces the
size of a dime or smaller.
2. Distribute one layer of rock wool to cover the burner.
See Figure 29.
3. Place the logs on the burner. See Log Placement below.
Light unit and after 15 minutes, check burner flame and
glow. See Burner Flame, page 35.
If the flame is blue and only in the center, turn off unit and
let cool. After unit cools, remove logs. If the back holes
are clear, add more rock wool to the center of the burner.
Replace logs and check flame again. Save left over rock
wool to refresh when cleaning later. Too much rock wool
can disturb the flame and cause sooting on the glass or
logs.
Figure 29 - Placement of Rock Wool on Burner
Cover with
Rock Wool
Do not use the entire bag of rock wool
to cover the burner. This could cause
the fl ame to burn poorly and may lead
to sooting.
W
ARNING
Burner
LOG PLACEMENT
1. Place the rear log in place by sliding it over the rear pins
on the right and the left.
2. Place the right front log over the burner and grate by
matching the hole on the bottom of the log with the pin
on the burner. Also match the cut-out on the bottom of
the log with the bars on the grate. NOTE: When this
log is in place pull towards the front.
3. Place the left front log over the burner and grate by
matching the holes on the bottom of the log with the
pin on the burner. Also match the cut-out on the bottom
of the log with bars on the grate. NOTE: When this log
is in place the branch on this log will lay over the rear
log on the left. Pull log forward.
4. Place the right upper log at an angle toward the burner
by matching the rectangular notch on the bottom of this
log with the rectangular protrusion on the right front
log. The burned side of this log will point toward the
burner.
5. Place the left upper log at an angle by matching the
rectangular notch on the bottom of this log with the
rectangular protrusion on the side of the left front log.
The split end should point toward the front.
HEARTH BRICK PLACEMENT
Place the hearth brick centered in front of burner and slide back until it hits the stops on the right and left of burner.
