GLASS REMOVAL

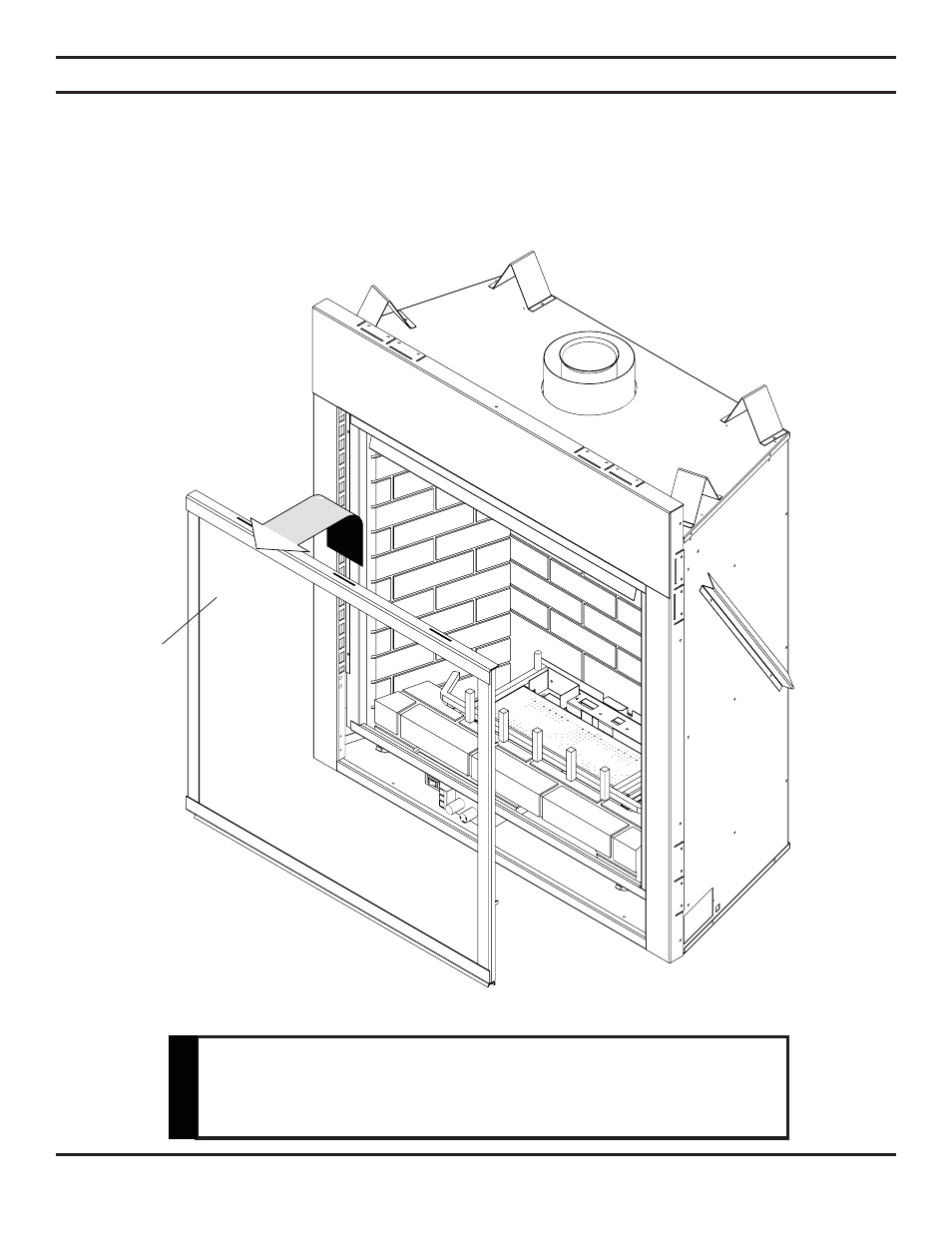

Figure 28 - Removing Glass Frame
Glass Frame
Each clamp has a quick spring force. When reinstalling clamps,
keep fi ngers clear.
CAUTION
GLASS FRAME REMOVAL
1. Remove access panel by lifting up and out.
2. Release two clamps (500 model has three clamps) on bottom of fi replace.
See Figure 28.
3. Tilt glass frame out and lift glass frame up until it clears three tabs on top of fi replace.
4. Set glass frame aside.
