3. Check the list of Network Components. If TCP/IP is not installed, click the
button to install it. If TCP/IP is installed, go to step 6.
4. In the Network Component Type dialog box, select and click
button.
5. In the Select Network Protocol dialog box, select and
then click the button to start installing the TCP/IP protocol. Windows CD
may be needed to complete the installation.
6. After installing TCP/IP, go back to the Network dialog box. Select
from the list of Network Components and then click the button.

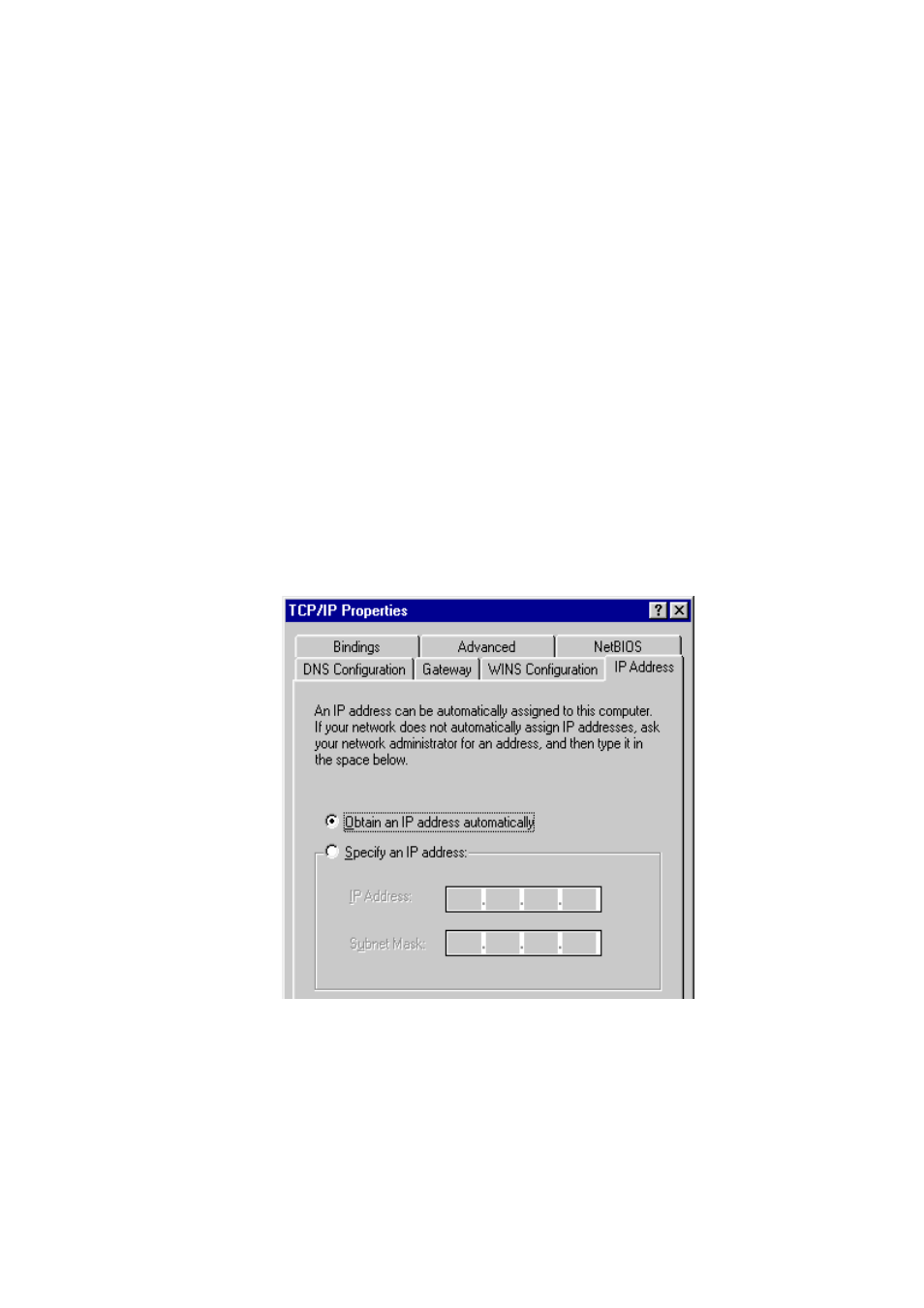

7. Check each of the tabs and verify the following settings:
y Bindings: Check Client for Microsoft Networks and File and printer sharing
for Microsoft Networks.
y Gateway: All fields are blank.
y DNS Configuration: Select Disable DNS.
y
WINS Configuration: Select Disable WINS Resolution.
y IP Address: Select Obtain IP address automatically.
8. Reboot the PC. PC will now obtain an IP address automatically from the
Broadband Router’s DHCP server.
9. Please make sure that the Broadband router’s DHCP server is the only DHCP
server available on the LAN network.
10. Proceed to Web-based User Interface once IP address is correctly configured.
