iNStAllAtiON
iNSeRt PlACeMeNt
•
The insert must be placed within a code-conforming masonry fireplace or a tested and
listed zero-clearance (UL-17, solid fuel) fireplace. Repair any fireplace damage prior to
installation.
• Because the insert uses a circulation blower, clean the fireplace, smoke shelf and chim-
ney before installing.
• This heater may be placed in a bedroom. Please be aware of the large amount of heat
this appliance produces when determining a location.

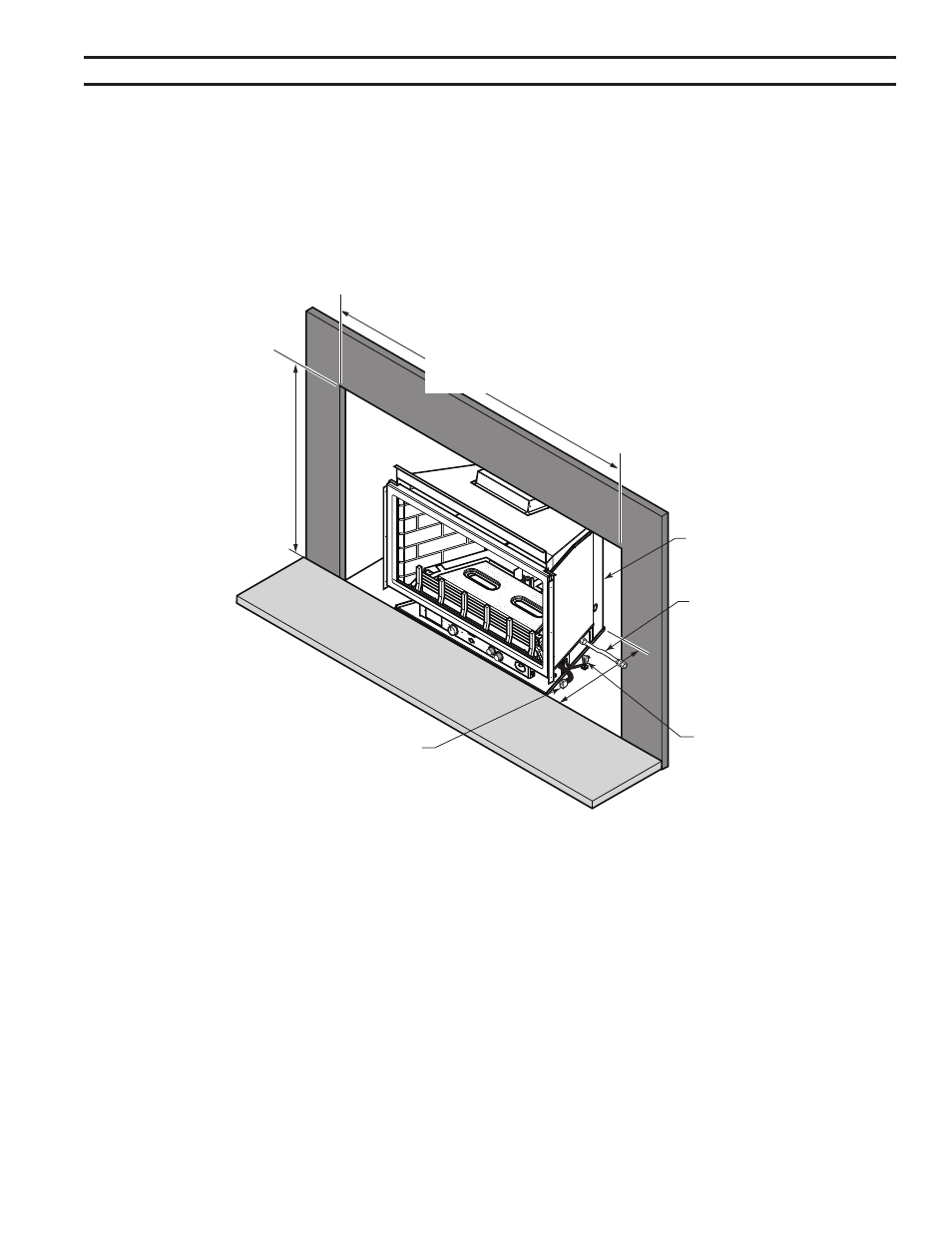

Figure 5 -
Insert Placement
For tight fits you may remove the
manifold. Refer to "Remove the
Manifold" Section
For minimum dimensions,
Refer to Page 7
The insert protrudes into
the fireplace. Refer to
Page 7 for dimensions.
The gas line should be
installed prior to insert
placement
Run the power cord
either side of the
insert along the face
Use the leveling bolts for
fireplaces with recessed
floors
Run the on/off
switch wires to the
right - behind the
surround panels
FP64
For minimum
dimensions,
Refer to Page
7
