IDV380/IDV490 Fireplace Insert SuRROuND iNStAllAtiON
iNStAll SuRROuND
1. Remove glass. Page 28
. Align plain or beveled surround with unit opening.
3. Attach surround to unit with six (6) screws provided. Figures 26 & 27
4. Reinstall glass.

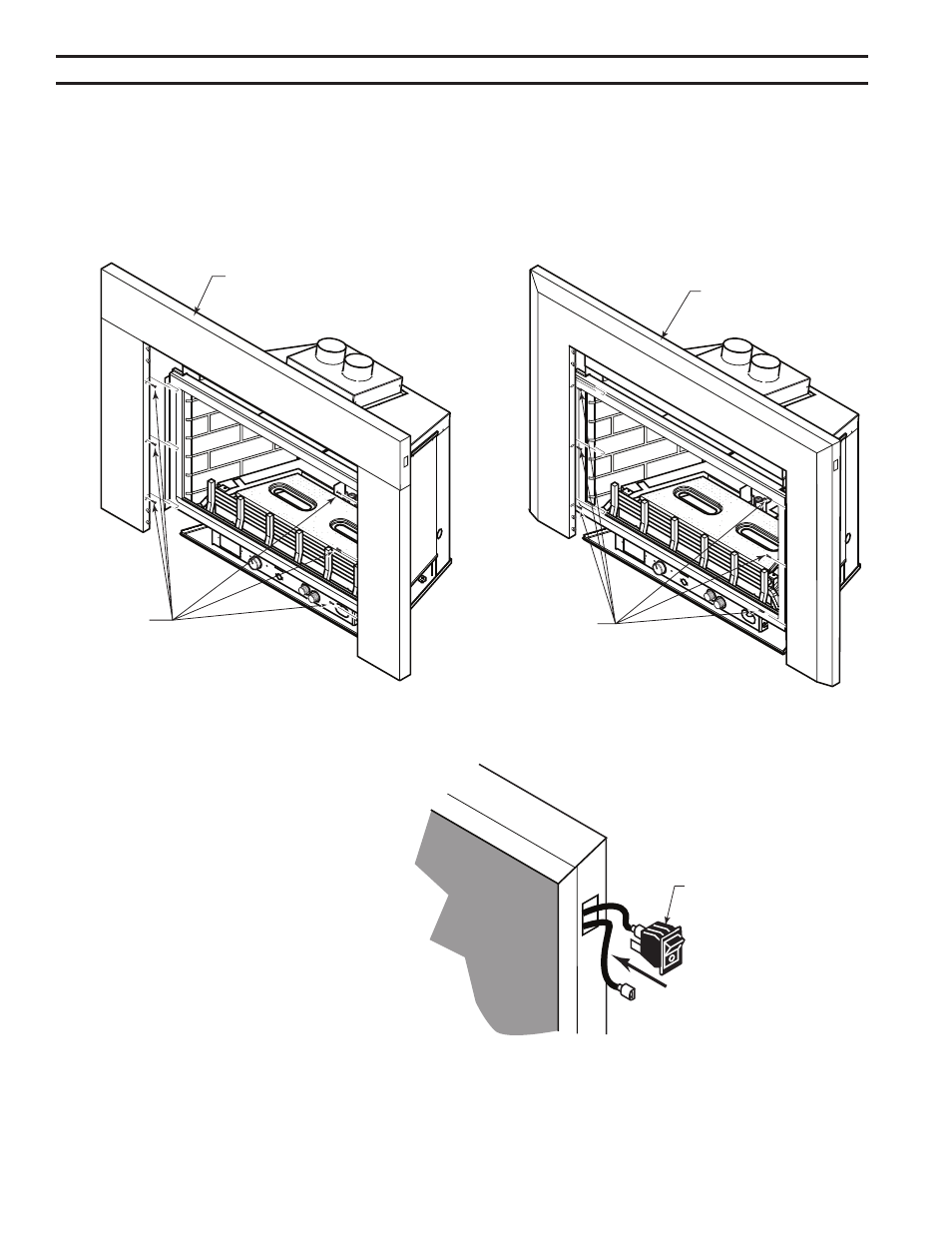

FP2633
install plain surround
Plain Surround
Screws FP633
Figure 26 -
Install Plain Surround
FP2634
install beveled surround
Beveled Surround
Screws
FP634
Figure 27 -
Install Beveled Surround
iNStAlliNG ON/OFF SWitCh
1. After installing surround, disconnect the
on/off switch from wires leading from
heater.
. Insert switch into hole in upper right side
of the trim. Figure 28
3. Reattach wires. Figure 28
FP2635
rocker switch
On/Off Switch -
Tape wires to back of
surround with foil tape
FP635 Figure 28 -
Install On/Off Switch
