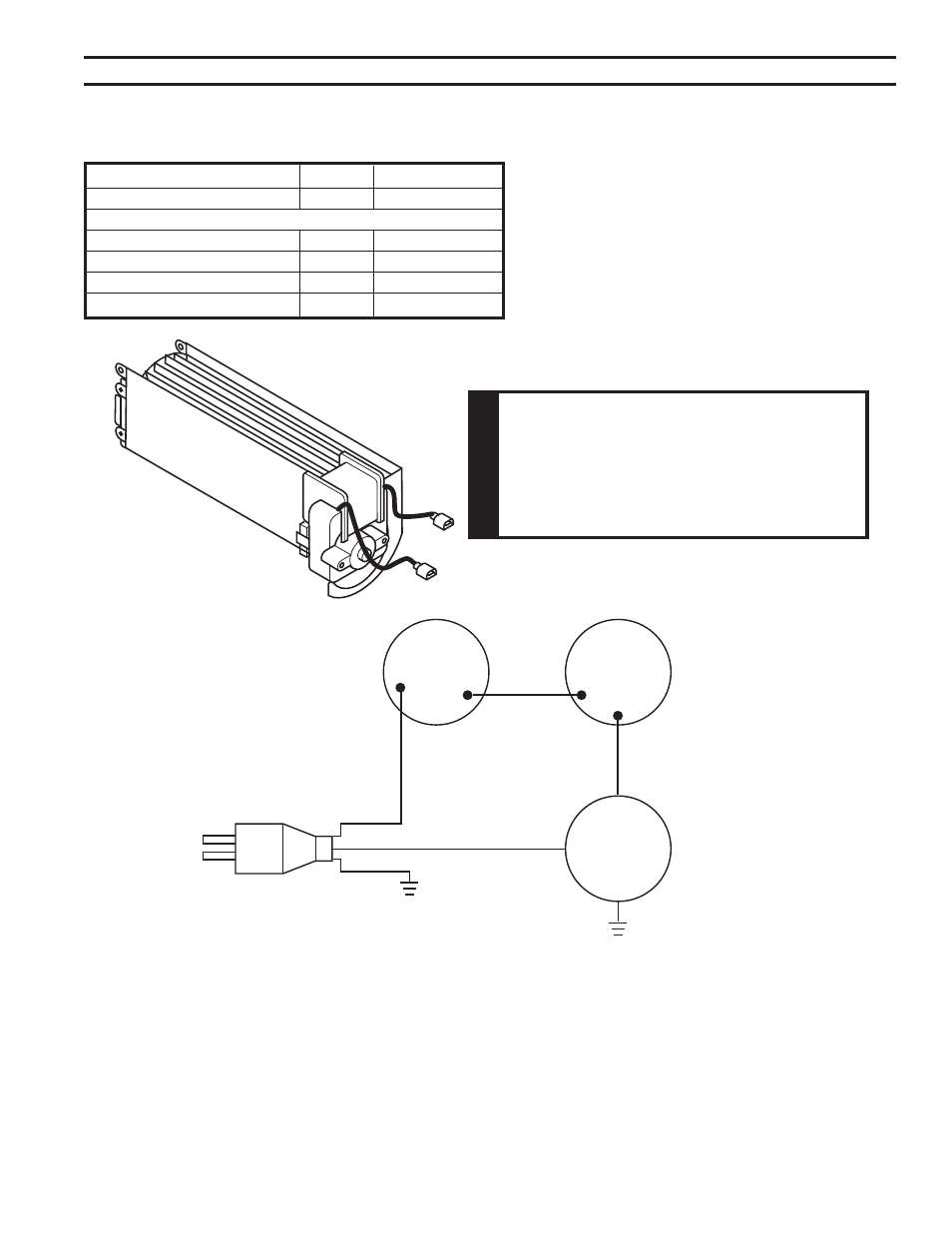

BlOWeR ReMOVAl and ASSeMBly
BlOWeR PARtS liSt:
FP1945
blower
CA
uti
ON
label all wires prior to disconnection when
servicing controls. Wiring errors can cause
improper and dangerous operation. Verify
proper operation after servicing.
White
(Hi Temp)
FP1946
blower wiring diagram
Blower
Snap
Disc
Variable
Speed
Control
Hi-Temp
Hi-Temp
OFF
ON
1
2
110/115 V AC
Blower Plug Black
White
Green
Blower
Motor
FP1946
Description qty. Part No.
Blower 1 6D0748
Parts not shown
Thermostat Bracket 1 6D330
Thermostat 1 49D0130
Speed Control 1 6D0746
Wire Harness 1 41D003
NOte: Unplug power cord before servicing. The blowers
are attached to insert bottom and back with Velcro. To
remove blower for servicing, pull away from Velcro and
disconnect wires.
