57D0016
IDV380/IDV490 Fireplace Insert
13
VeNtiNG iNStAllAtiON
VeNt CONFiGuRAtiONS
NOte: You may use either reline configuration with a masonry
or zero-clearance fireplace.
FP2627
inlet exhaust reline
Exhaust Inlet
Recommended block-off
plate (noncombustible
metal). Prevents odors from
chimney entering room.
UL 17 Solid
Fuel Z.C Fire-
box

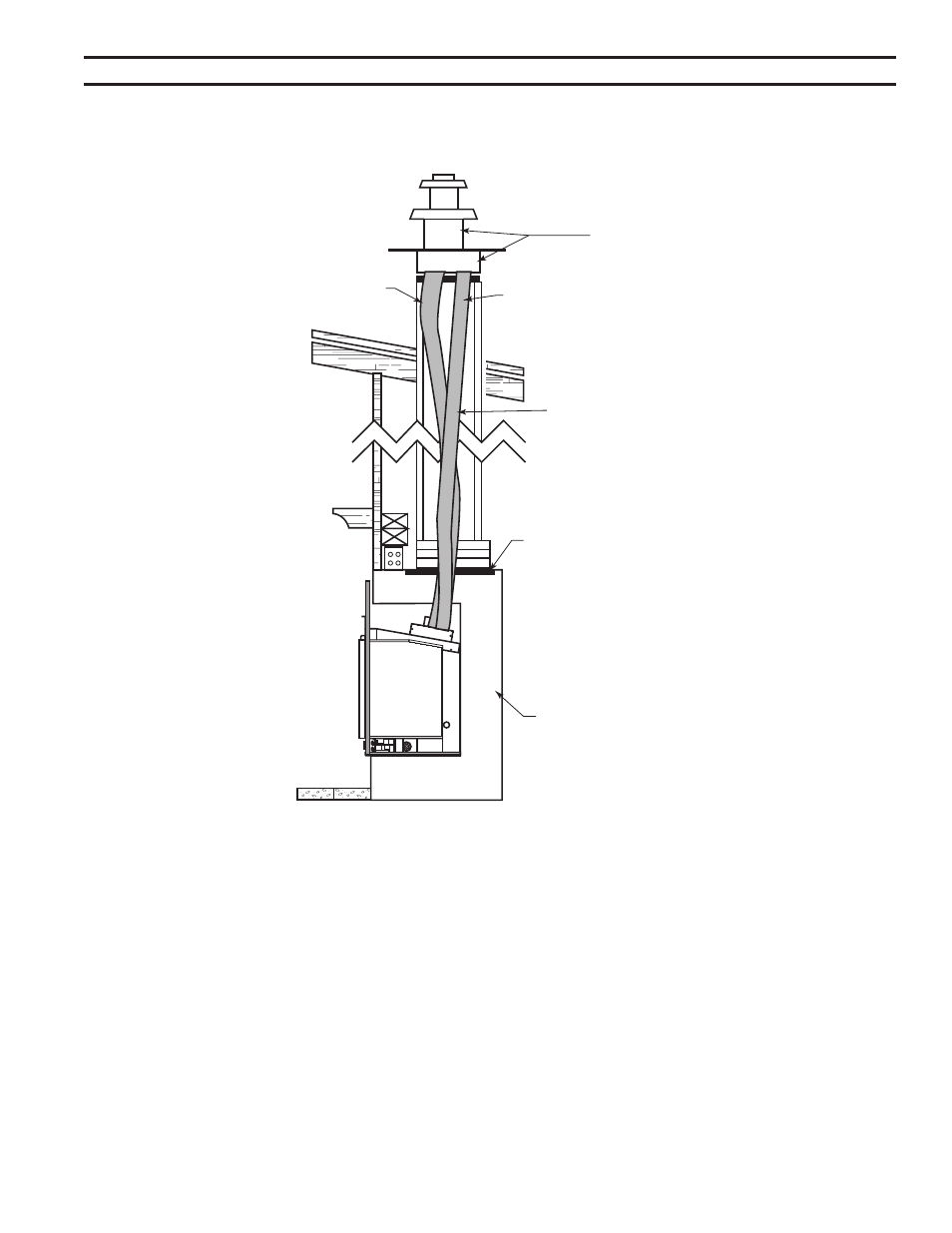

Figure 9 -
Inlet and Exhaust Reline
FP67
3" (76 mm) or 4" (10 mm) Exhaust
UL 1777 Gas Liner 3" (75 mm) Inlet
Termination Kits:
380 Series: AI31TK33A
490 Series: AI4TK43A
