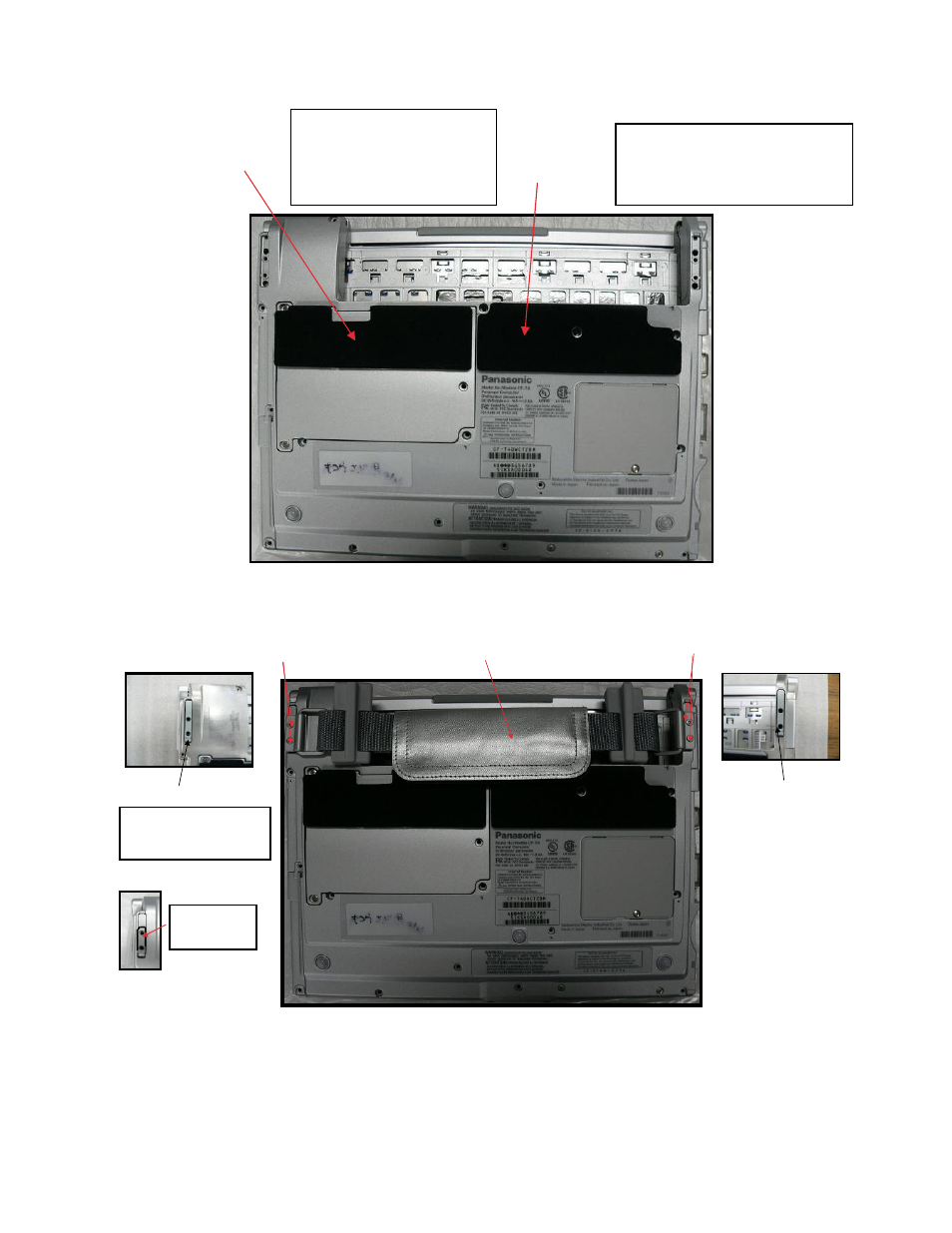

HDD Cover Heat Sheet
Bottom Heat Sheet
The left end and the top are set to
the concave part of the cover and
HDD Cover Heat Sheet is put.
Do not overflow.
Inclination 1mm or less
Bottom Heat Sheet puts Label according
to a right edge and the top.
Do not overflow.
Inclination 1mm or less
Handy Strap
Handy Strap Angle Handy Strap Angle
This direction
is NG.
It is noted not to mistake
the back for the table of
Angle.
SCREW (DXQT26+D8FCL)
SCREW (DXQT26+D8FCL)
9.3.6.15. Putting HDD Cover Heat Sheet and Bottom Heat Sheet
