Page 44
44
The cable must not stretch.
The cable must not stretch.
Refer to Figure 1.
The convex part is matched to a black tape.
5-8mm
Cable fixation
A two sided tape of the cable after the cable position
of Figure 1 is put out is affixed (cable fixation).
A two sided tape of the cable after the cable position
of Figure 1 is put out is affixed (cable fixation).
PET TAPE
(width L=30 of 19mm)
WWAN ANTENNA(MAIN)
SCREW
WWAN ANTENNA(SUB)
CABLE BLIND SHEET
SCREW
SCREW
SCREW
SCREW
The coaxial cable connector is processed
in the corner hole of the substrate
Paper tape
CABLE FIXED SHEET
Clamp
Clamp
The cable is fixed
with the paper tape
Corner hole externals standard
This is clamped on the right side
This is clamped
in the upper part
Clamp
This is clamped on the right side
This is clamped
in the upper part
After the cable is processed to the ditch of REAR,
CABLE FIXED SHEET is affixed
NEXT
Wall application affixation
Safety work
The oreder of tighting screw:

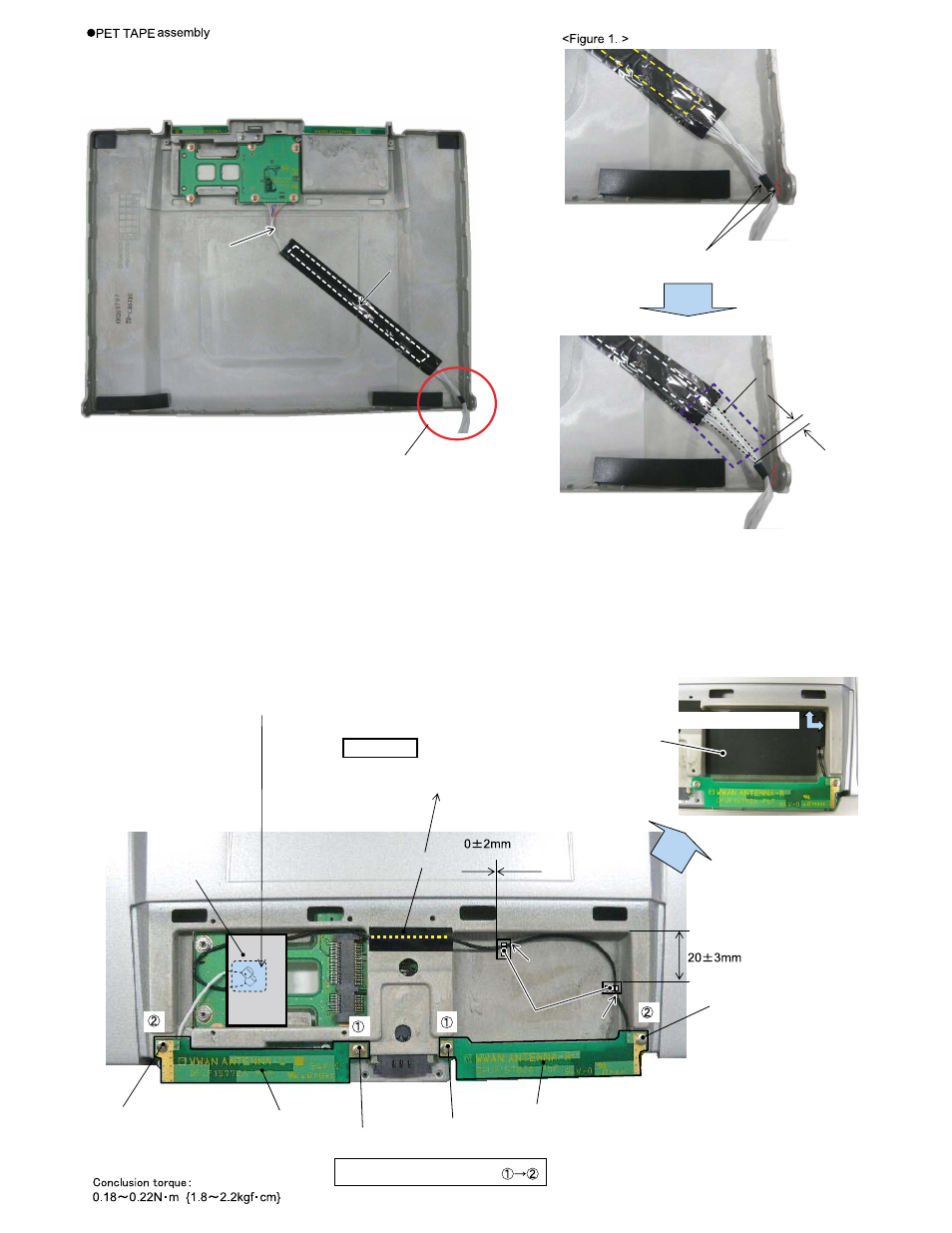

9.3.2.18. Assembly of the WWAN Antenna Board (MAIN), (SUB)
