Matsushita CF-T5LWETZ1 2 User Manual

Page 66

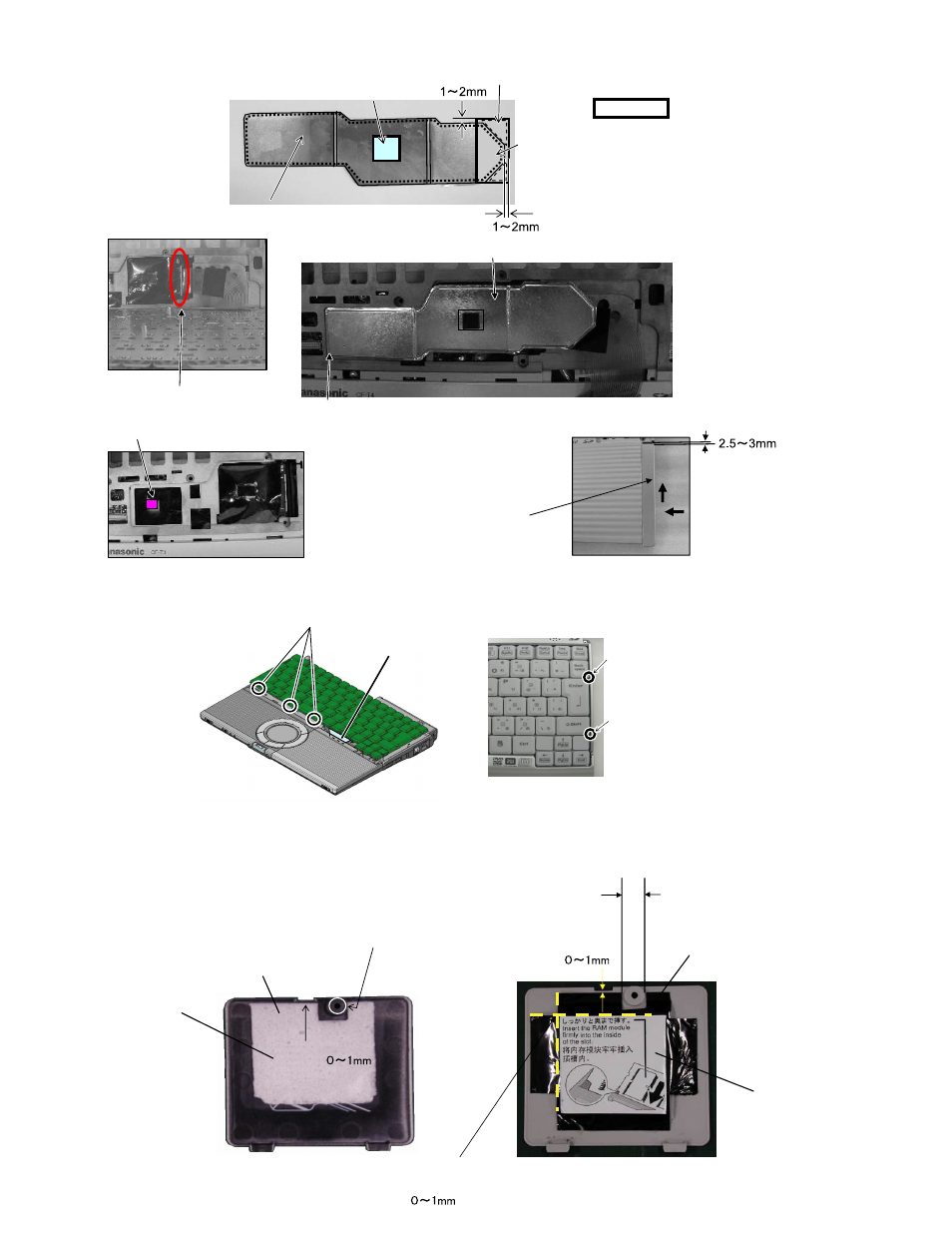

Side Cover R

MCH Rubber

(Note)

Safety work

Installs in the dent part of a top case
Thing on keyboard installation side without running aground

Connection

Inserts from side
and raises on

Heat Spreader(Top Case Side)

PET Tape

Grease (G-751) is spread

A remaining tape is affixed on an opposite side

When the part of aluminum with a thin all
surroundings bends, Sheet and the cable might
be damaged.Therefore, correct when bending.
However, correct without correcting by bare-
handed with a tool such as pliers.

Inserts in the corner hole part of a Top Case

Inserts under the Top Case

The hook is Hooked

DIMM Cover Sheet

DIMM Cover

DIMM Cover is arranged
making not run aground
in screw tightening respect.

Rib application

DIMM Heat Sheet

For the cutting lack part to get
on the boss and so as not to go
up, affixation

Do not run aground on the edge
of the DIMM Cover surroundings

The position where the DIMM Cover and DIMM Heat Sheet
is put is this corner line match.

Put the
DIMM Thermal Sponge

(Space )

9.3.6.7. Assembly of the Heat Spreader and Side Cover R

9.3.6.8. Setting Keyboard

9.3.6.9. Setting DIMM Cover
