39
Safety work
Safety work
The tape is distributed at the
center and pasting applying.
The cable is prevented from
running aground on the cushion.
The remainder is put
on the hinge side.
Hinge-R
Gasket Cloth
LCD Damper C
Edge match of lamp lead
Externals match of reflector
Externals match of plinth
LCD Front is applied to the
wall and pasting applying.
LCD Front is applied to the
wall and pasting applying.
Put on the
hinge surely.
Put the reflector
part surely.
The cable is prevented from
coming in succession mutually.
The cable is bundled this is prevented from parting.
Before affixing Rear Damper,do not come
in succession in the TP clamping part.
The cable must not be processed on the damper,
and give cable room.
Rear Damper
Conductive Cloth
(LCD Cable)
LCD Cable
Safety work
Safety work
DFHR3154ZA(10x10) seat putting from the inverter lead connector
edge to the place of 100mm
LCD cable come on touch panel Flexible cable.

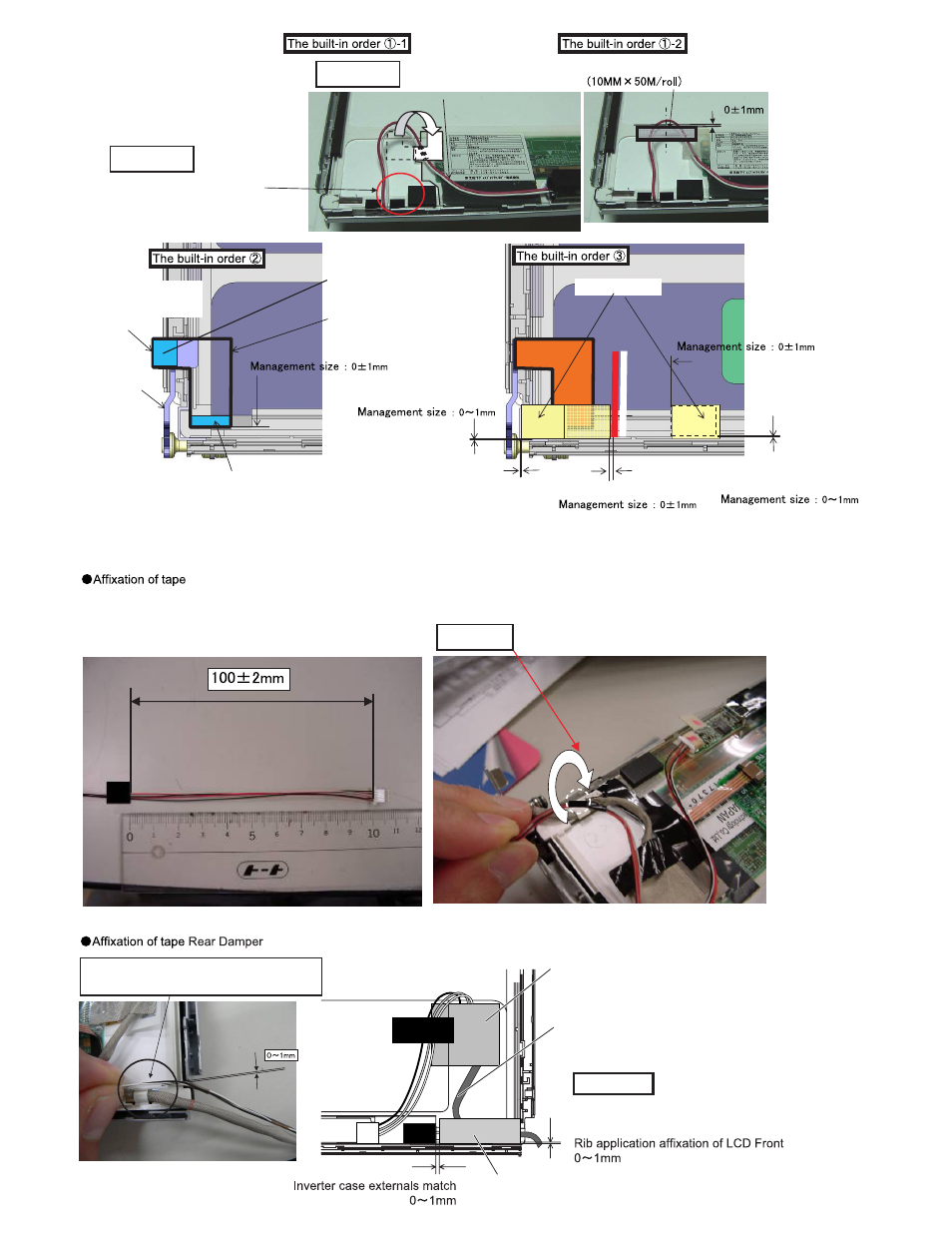

9.3.2.12. Putting Tape of LCD Cable
