64
Safety work
Safety work

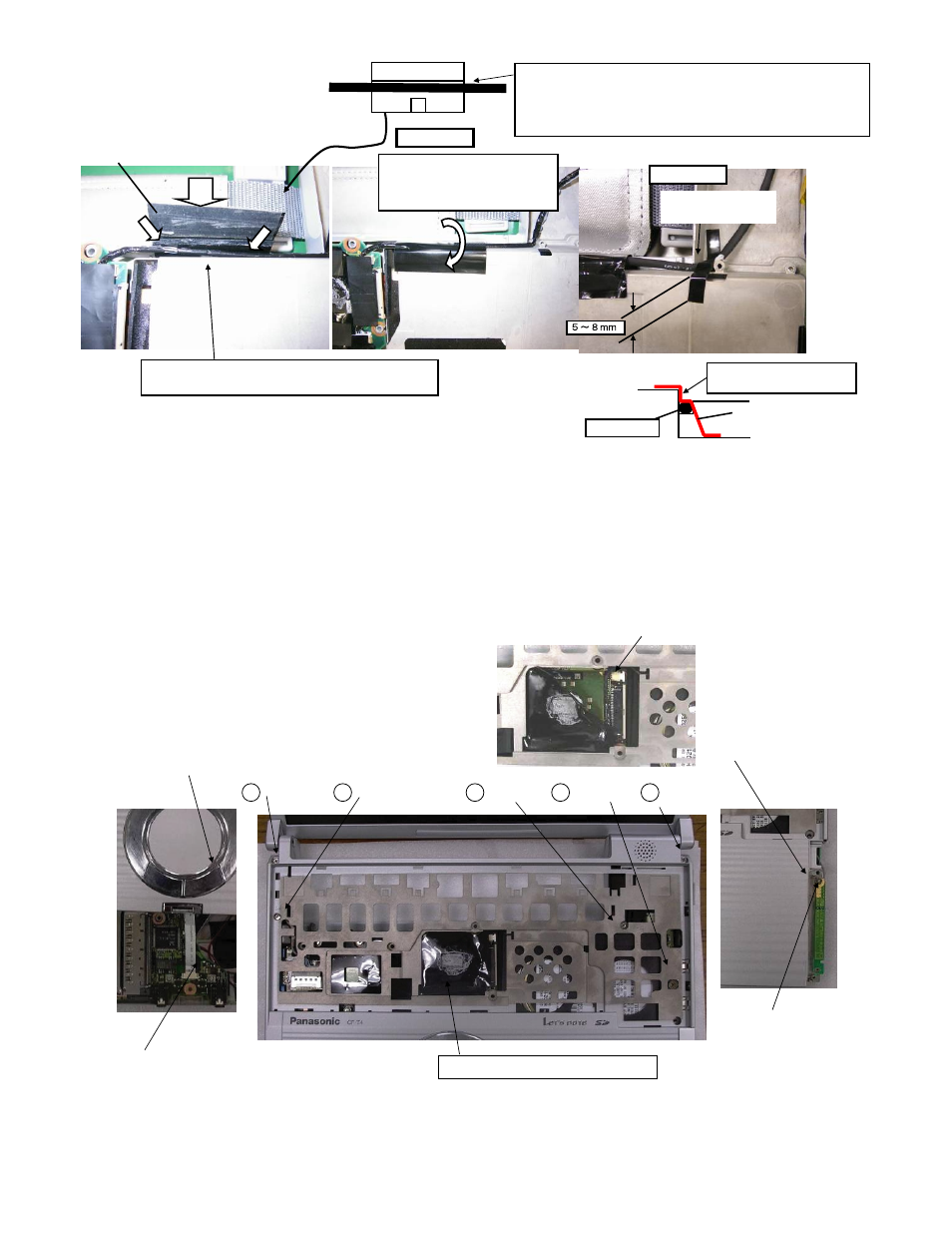

Line Hold Sheet WWAN
is inserted in space in the
interior of the Bottom Case.
The relay cable is pushed into the bottom.
The slack of the line is processed on the right side.
The flaking off paper is taken,
and a two sided tape is folded
and pasted to the Bottom.
Lower flaking off paper is taken beforehand, and Line Hold
Sheet WWAN is pasted to the relay cable according to remaining
flaking off paper.
Afterwards, Sheet is arranged in Bottom Case.
The relay cable
is fixed with a Tape.
Details of putting tape
Relay cable
Tape
The tape is made to stick
to the Bottom wall.
Safety work
Screw for antenna
Do not add an unnecessary impact.
Top Case Assy
PAD FFC
Speaker Cable Connection
The cable is processed
in the ditch part.
1.3 Screws A (DXQT2+E6FNL) are tightened.
2.2 Screws B (DXQT26+D8FCL) are tightened.
Screw A 1 Screw A 3 Screw A 5 Screw A 4 Screw A 2
9.3.6.4. Putting Line Hold Sheet WWAN
9.3.6.5. Assembly of the Top Case
