24 Installation
The system I/O connectors may appear different than in the illustration,
depending on the system board installed in the server.

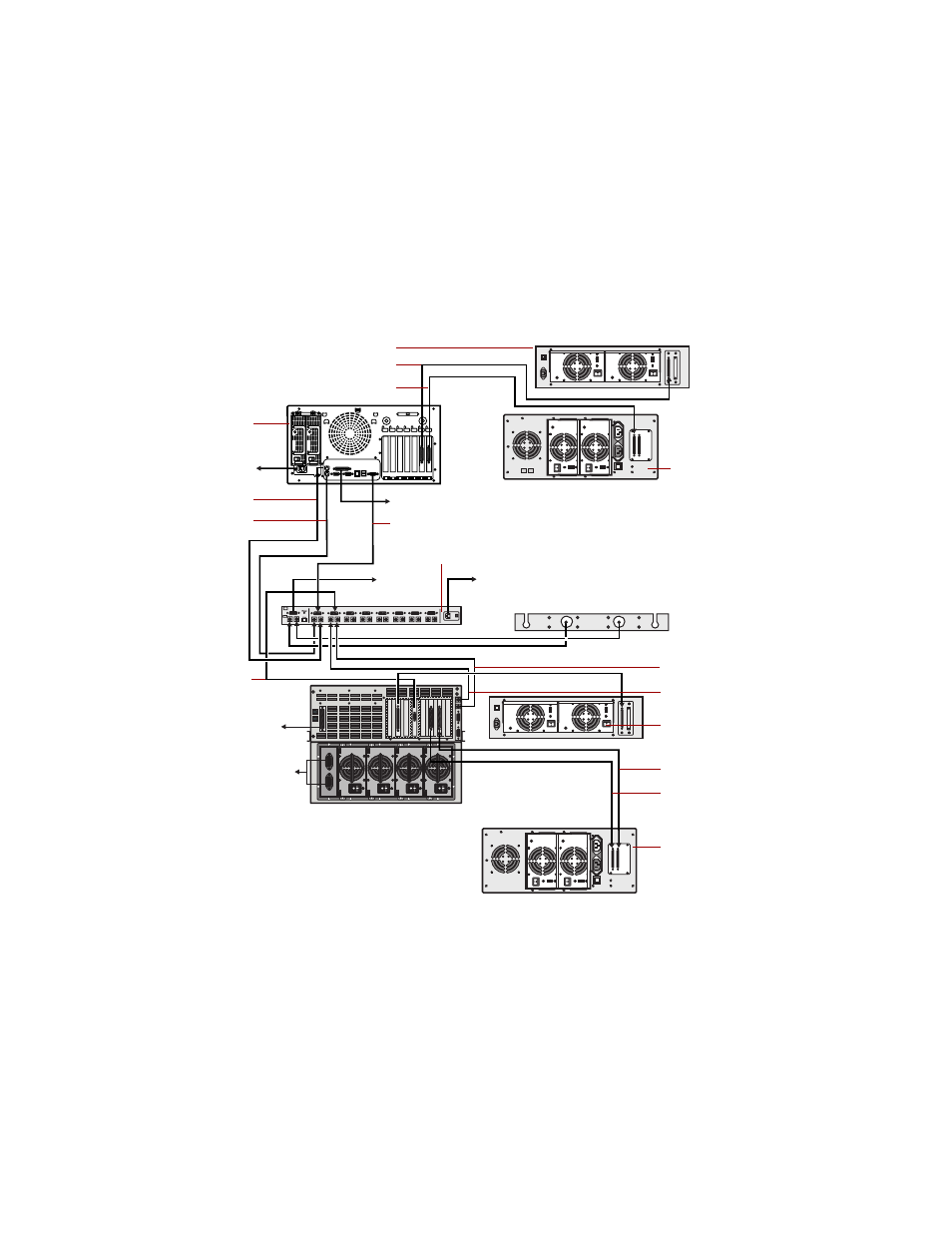

If connecting multiple system drawers, you must connect extender cables to
the system drawers used. You must also attach the peripherals to the
appropriate I/O ports on the back of the autoswitcher. Refer to the following
figure for connection details.
To power
To printer
To printer
To power source
VGA video
signal
Mouse
Keyboard
Tape storage drawer
Autoswitcher
To power source
Keyboard and mouse tray
Example
system
SCSI channel 1
SCSI channel 2
QHSII storage
drawer
VGA video signal
Mouse
Keyboard
Tape storage
drawer
SCSI channel 2
SCSI channel 1
QHSII storage
drawer
To VGA
monitor
Second system drawer
