Gateway 8400 User Manual
Page 16
Installing the cabinet mounting brackets and mounting rails
11
Installing the cabinet mounting rails onto
Gateway brackets
To install the cabinet mounting rails onto Gateway brackets:
1
Align the back end of the cabinet mounting rail to the back mounting
bracket by sliding the inner rail forward (if the spring latch locks the inner
rail into place, free the rail by releasing the spring latch).
2
Attach the back end of the cabinet mounting rail to the back mounting
bracket using a screw from the accessory kit.

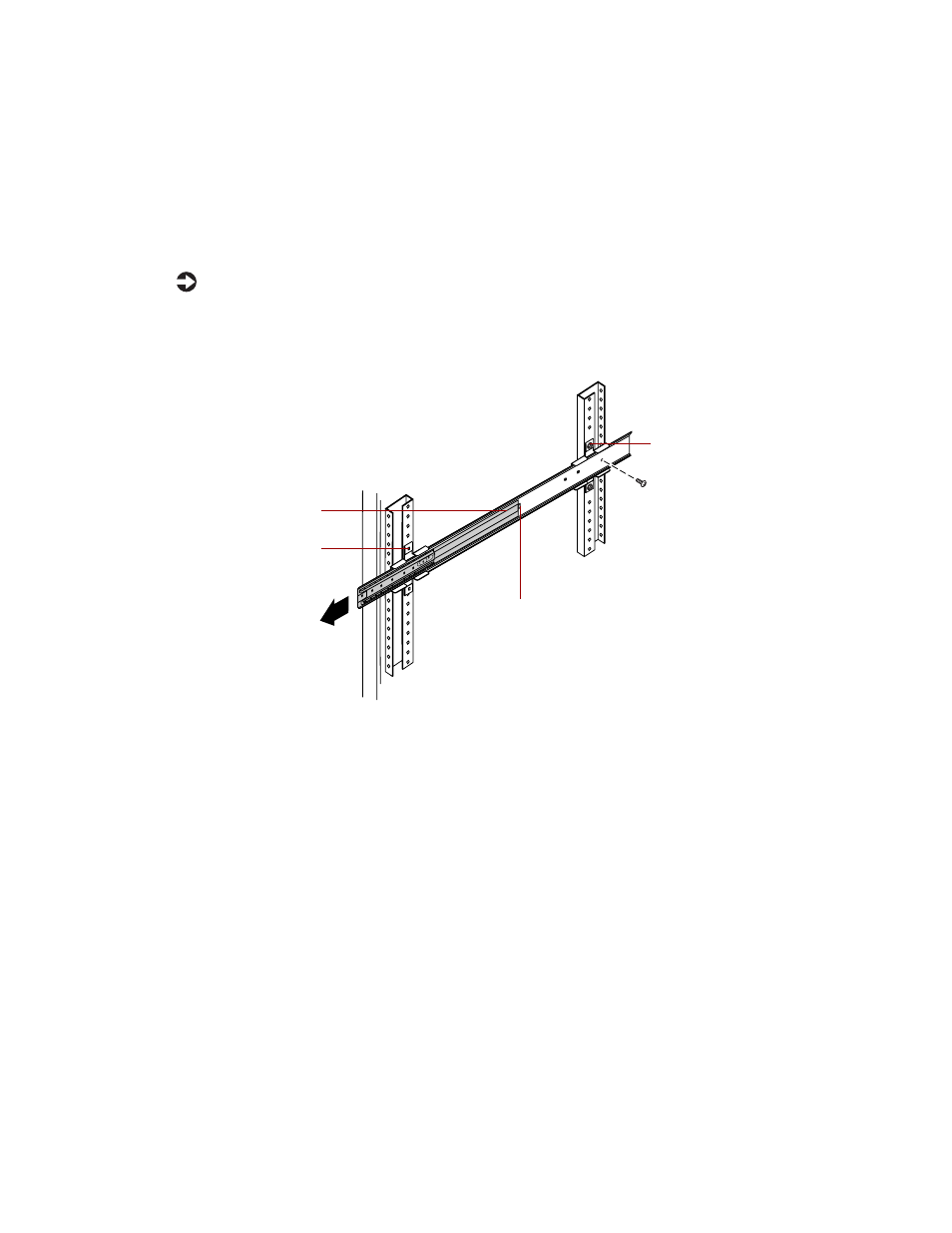

Spring latch
Back mounting
bracket
Inner rail
Front mounting
bracket
