Installing the cabinet mounting brackets and mounting rails 13
Installing generic mounting brackets
If you are installing the server in a non-Gateway cabinet, use the generic
mounting brackets. These brackets allow for different cabinet depths. If
generic mounting brackets are already installed in the cabinet, go to
“Installing the cabinet mounting rails onto generic brackets” on page 14.
To install the generic mounting brackets in the cabinet:
1 If you received a mounting template with your cabinet, use it to locate
the exact position of the cabinet mounting brackets.
2 Position the front mounting bracket (shorter bracket) on the front vertical
mounting rail.
3 Attach the front mounting bracket to the front vertical mounting rail
using two screws from the accessory kit.
If screw holes in the front vertical mounting rail are not threaded, attach
the front mounting bracket by using the screws and bar nut from the
accessory kit.
Caution When considering the position of the system in the cabinet,
make sure that a hazardous stability condition is not
created because of uneven loading.

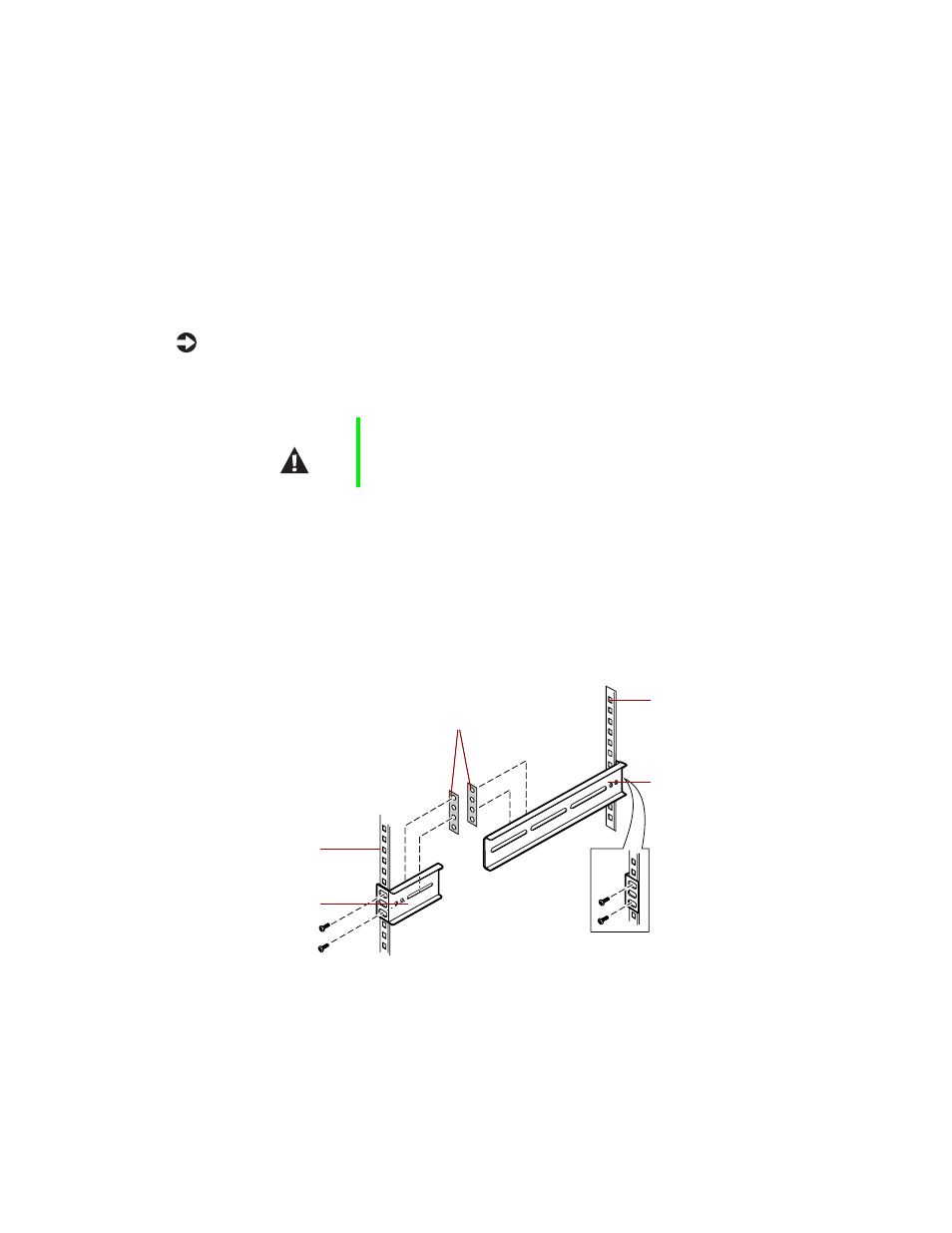

Back mounting
bracket
Bar nuts
Back vertical
mounting rail
Front mounting
bracket
Front vertical
mounting rail
