Installing the cable retractor
Cable retractors reduce strain on the drawer cables and connectors and
simplify maintenance because they keep the cables out of the way. If you are
installing a cable retractor in a Gateway cabinet, refer to the following section.
If you are installing a cable retractor in a non-Gateway cabinet, go to
“Installing a cable retractor in a non-Gateway cabinet” on page 20.
Installing a cable retractor in a Gateway
cabinet
To install a cable retractor in a Gateway cabinet:
1 Position the cable retractor adapter bracket on the back vertical mounting
rail, then align the mounting holes on both the adapter bracket and the
back vertical mounting rail.
2 Attach the adapter bracket to the back vertical mounting rail using two
screws from the accessory kit. The retractor may be mounted above or
below the level of the system drawer.
3 Go to “Attaching the cables to the retractor” on page 21.

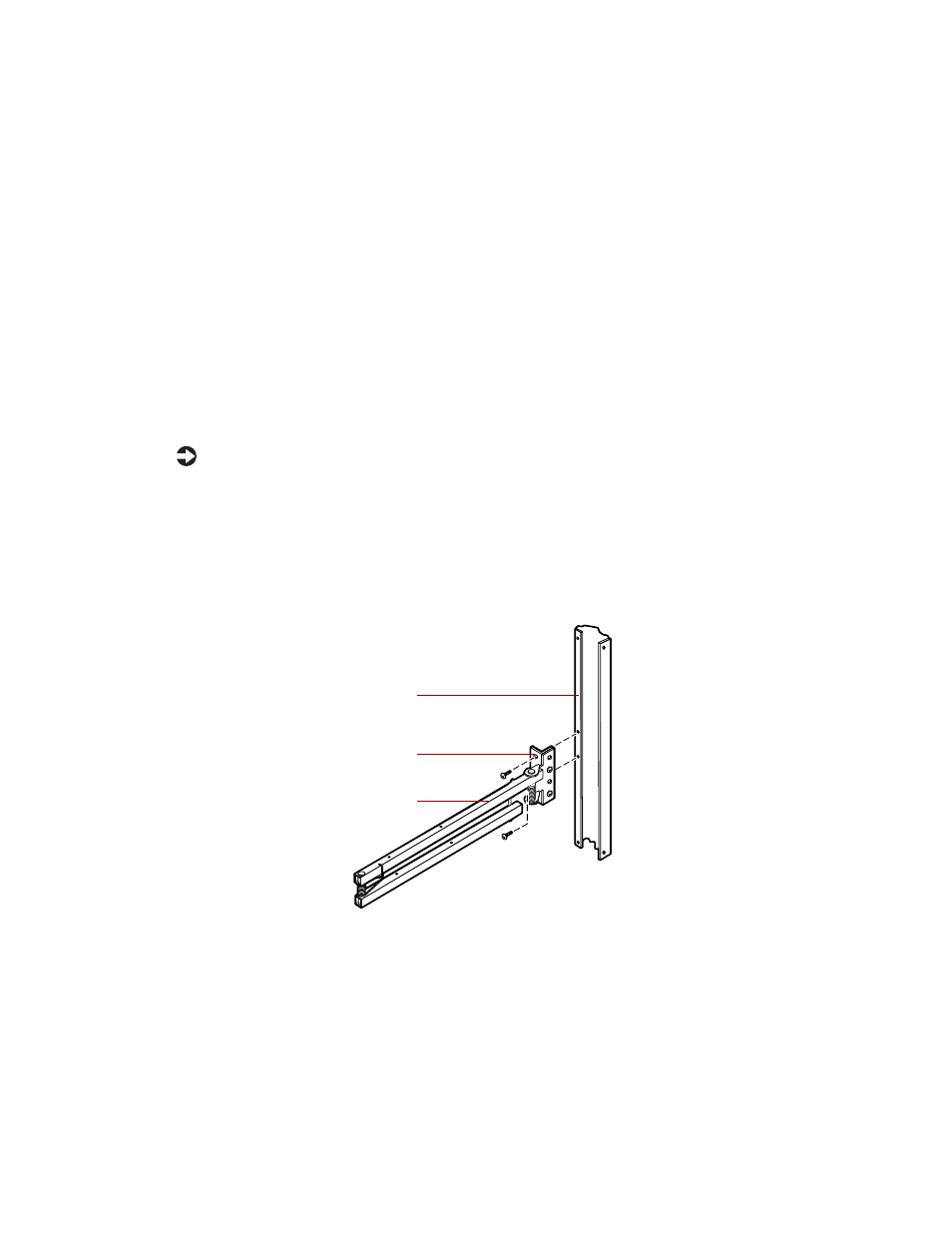

Cable retractor
Adapter bracket
Back vertical
mounting rail
