Graco Inc. 253471 - Manual (Page 32)

Removing Handle
32 311283D
Securing Unit to Vehicle Bed

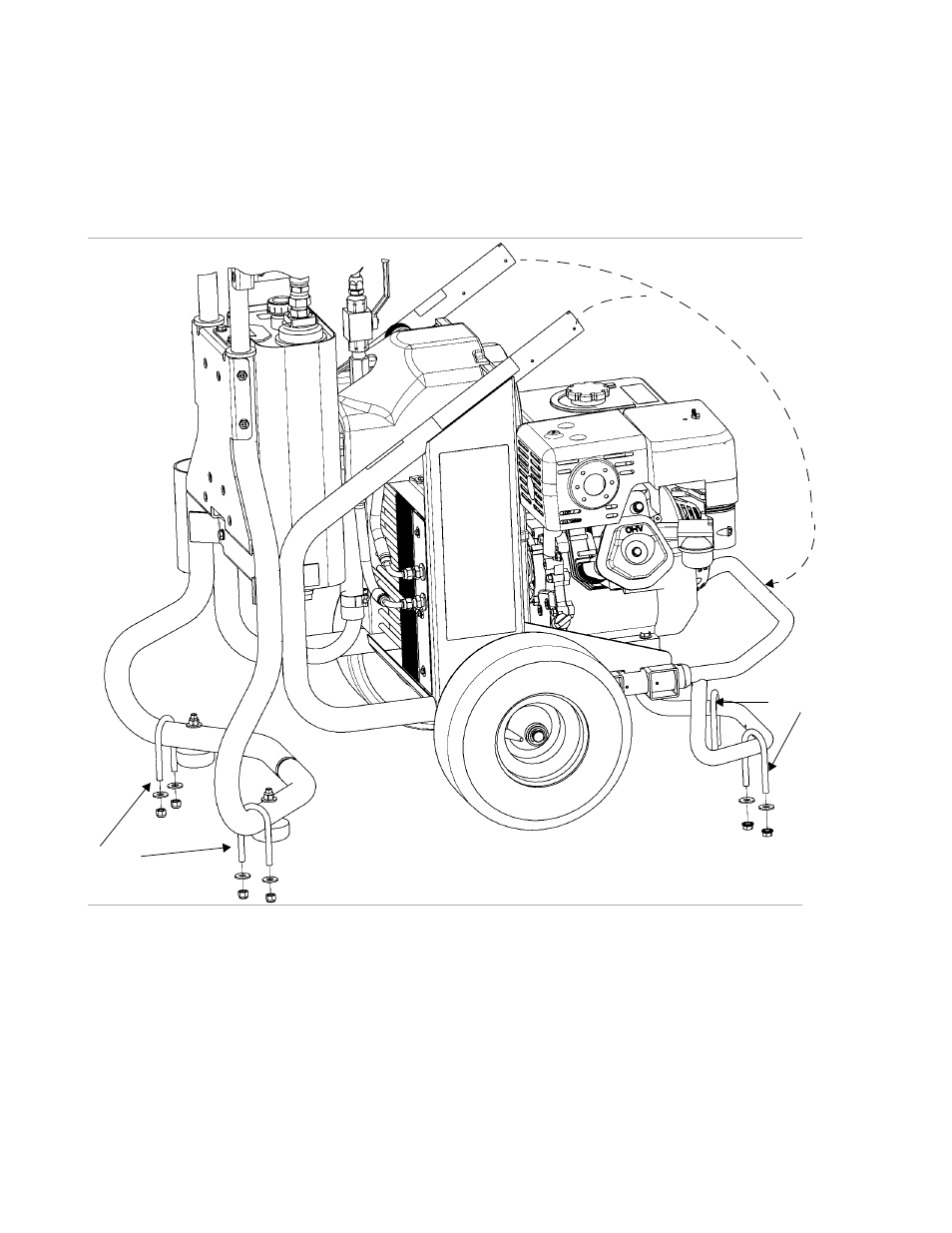

For fixed mounting, fasten U-bolts over sprayer frame as
indicated in the following illustration.
1. Reposition handle, steps 1-5, page 31.
2. Place U-bolts over sprayer frame and through holes
in vehicle bed. Place a washer and nut over bolt
end. Using a wrench, tighten nut securely.
U-bolts
U-bolts
Reposition Handle
