Pump Power Head Replacement
12
311283D
Pump Power Head Replacement

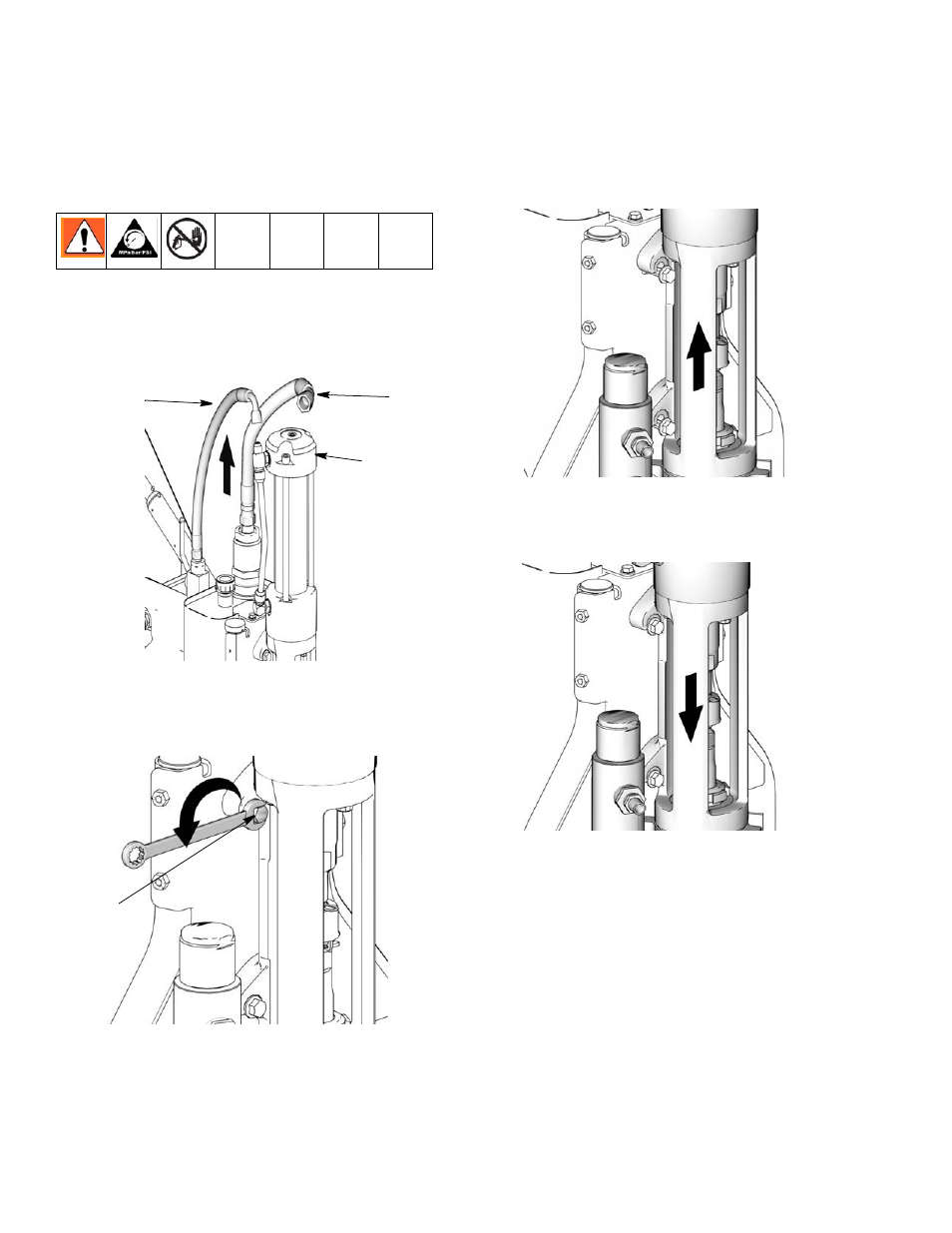

Removal
1.
Relieve pressure, page 5.
2.
Remove hydraulic lines (100, 101) from head (75).
3.
Loosen (4) mounting bolts (7) on the adapter
enough to lift and remove assembly.
4.
Remove power head from unit.
Installation
1.
Install power head on unit.
100
101
75
ti7803
7
ti7841
ti7847
ti7851
