Filter housing replacement – Graco Inc. 253471 User Manual
Page 15
Filter Housing Replacement
311283D
15

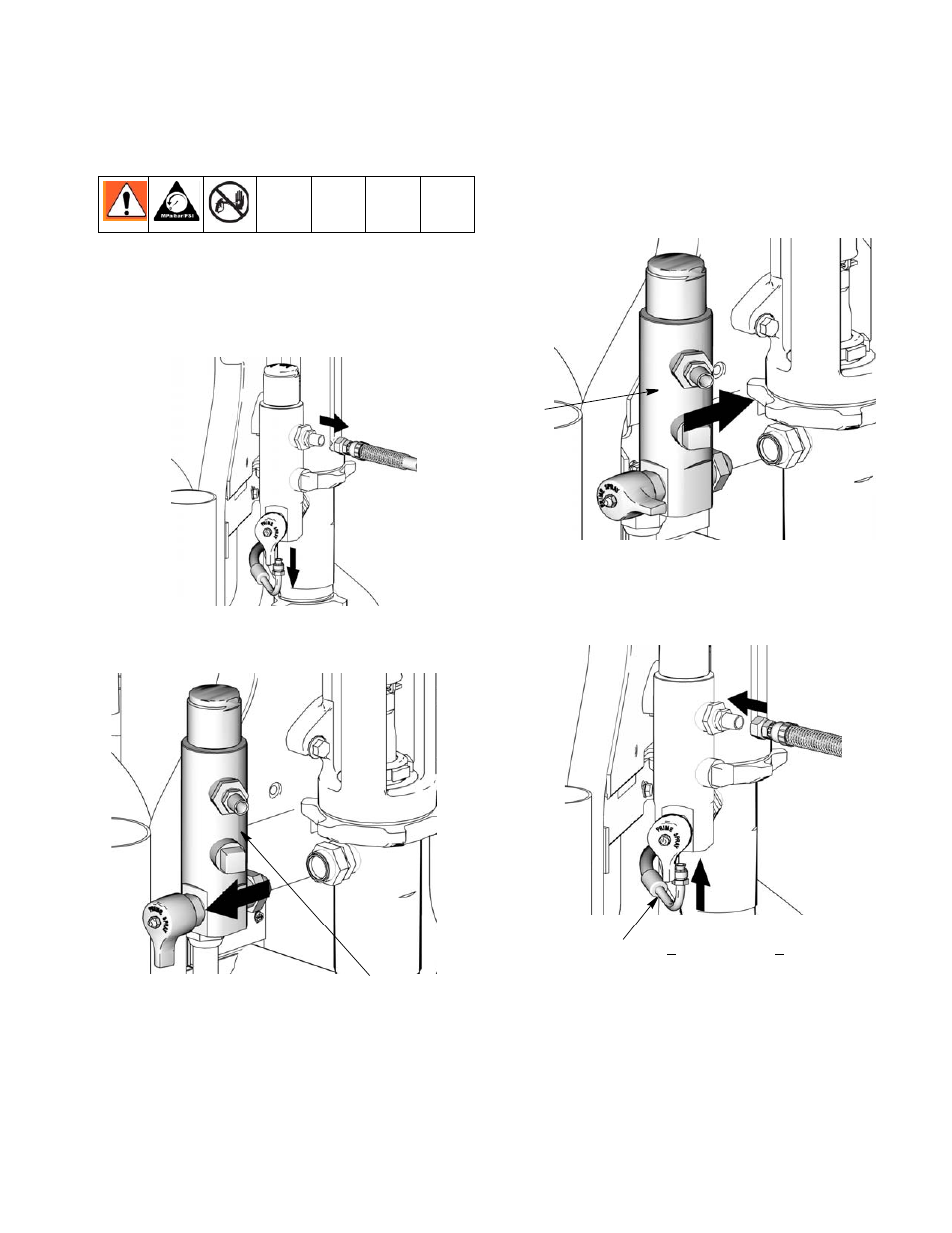

Filter Housing Replacement
Removal
1.
Relieve pressure, page 5.
2.
Remove paint and drain lines from filter housing.
3.
Loosen filter housing fitting (110) until housing and
remove housing from pump.
Installation
1.
Install filter housing (110) in pump opening.
2.
Tighten fitting.
3.
Attach paint and drain lines.
ti7845
ti7119
110
ti7772
110
ti7850
Torque to 225 + 10 in-lb. (25.4+ 1.1 N.m)
