Grizzly G0632 - Manual (Page 15)

G0632 16" x 42" Variable Speed Wood Lathe
-13-

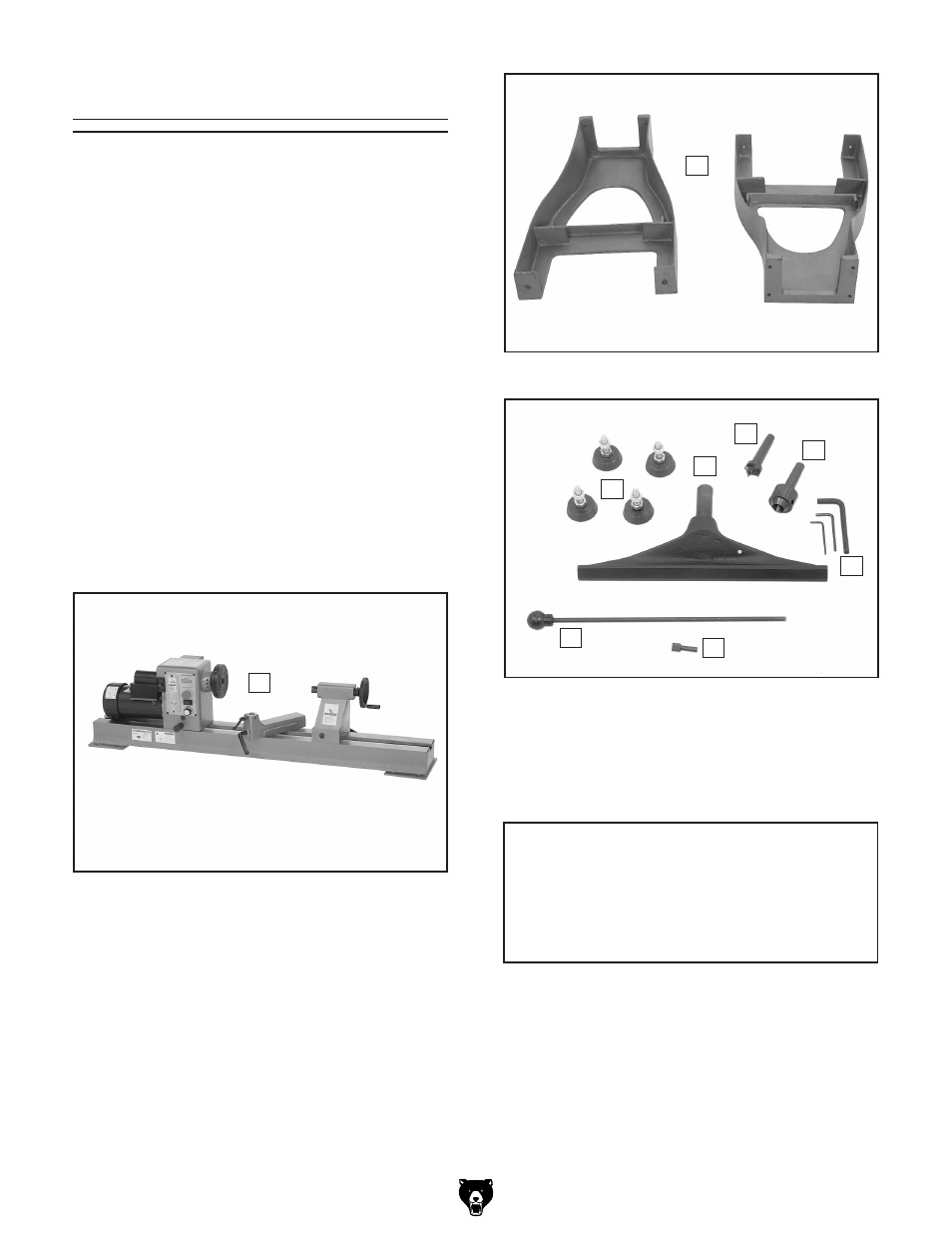

Inventory
After all the parts have been removed from the
shipping containers, you should have the follow-
ing items:
Inventory: (Figures 5–7) Qty
A. Lathe Assembly
—Headstock (mounted) ............................. 1
—Tool Rest Base (mounted) ...................... 1
—Tailstock (mounted) ................................ 1
—Face Plate 6" (installed) ......................... 1
B. Supporting Legs ......................................... 2
C. Machine Feet .............................................. 4
D. Tool Rest .................................................... 1
E. Spur Center MT#2 ...................................... 1
F. Live Center MT#2 ....................................... 1
G. Hex Wrenches 3, 4, 8mm .....................1 Ea
H. Knockout Tool ............................................ 1
I. Indexing Pin ................................................ 1
J. Hardware (not shown)
—Cap Screws M10-1.5 x 25 ...................... 8
—Lock Washers 10mm .............................. 8
If any nonproprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
B
C
D
E
F
G
H
NOTICE
Some hardware/fasteners on the inventory
list may arrive pre-installed. Check mount-
ing locations before assuming that any
items from the inventory list are missing.
Inventory
Figure 6. Model G0632 inventory B.
Figure 7. Model G0632 inventory C–I.
Figure 5. Model G0632 inventory A.
A
I
