4.2.9 BPM-AUI
This local-bridge module is equipped with a 15 pin female AUI connector and
a slide-lock. It is self-learning and filters and forwards packets at full Ethernet wire
speed. It is used to provide segment
isolation from a 10BASE5 (ThickNet)
backbone or any AUI segments. A
transceiver is required when connecting to a
ThickNet segment and the BPM-AUI
supports this convention.

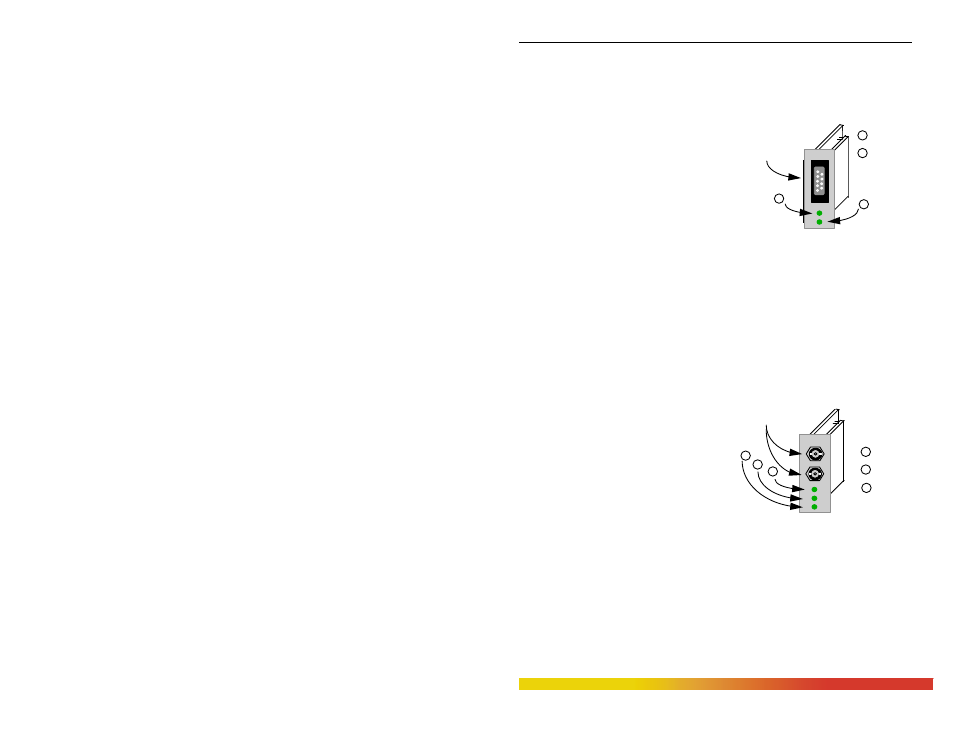

The BPM-AUI card is equipped
with one FWD-I LED and one Magnum BPM-AUI
FWD-X LED, which are identical to those of the BPM-BNC (Section 2.2.7).
The RPM-AUI connector supports standard IEEE signals, which are
summarized in Table 3.2.2 of Section 3.2.2.
4.2.10 BPM-FST
The Magnum BPM-FST is a multi-mode fiber optic local-bridge module
equipped with a dual ST-type connector. It is self-learning and filters and forwards
packets at full Ethernet wire speed. When
used for 10BASE-FL segments, this module
supports fiber optic transmission distances
up to 2000m. For FOIRL applications, it
supports fiber segments of up to 1000m in
length. The BPM-FST includes full
transceiver functionality and does not
require an external
Magnum BPM-FST
transceiver device. The BPM-FST has three status LEDs. FWD-I and
FWD-X are identical to those of the BPM-BNC (Section 2.2.7). In addition, this module
has a GREEN LINK LED, that is always on when the attached fiber link is operational.
FWD-X LED
FWD-I LED 2
1
Standard 15-pin
female AUI
with slide-lock
1
2
10BASE-FL, FOIRL
ST Connectors
FWD-X LED
FWD-I LED
LINK LED
2
1
3
3
2
1
