The family of standard connector types for BPMs is shown in Figure 2.5b.

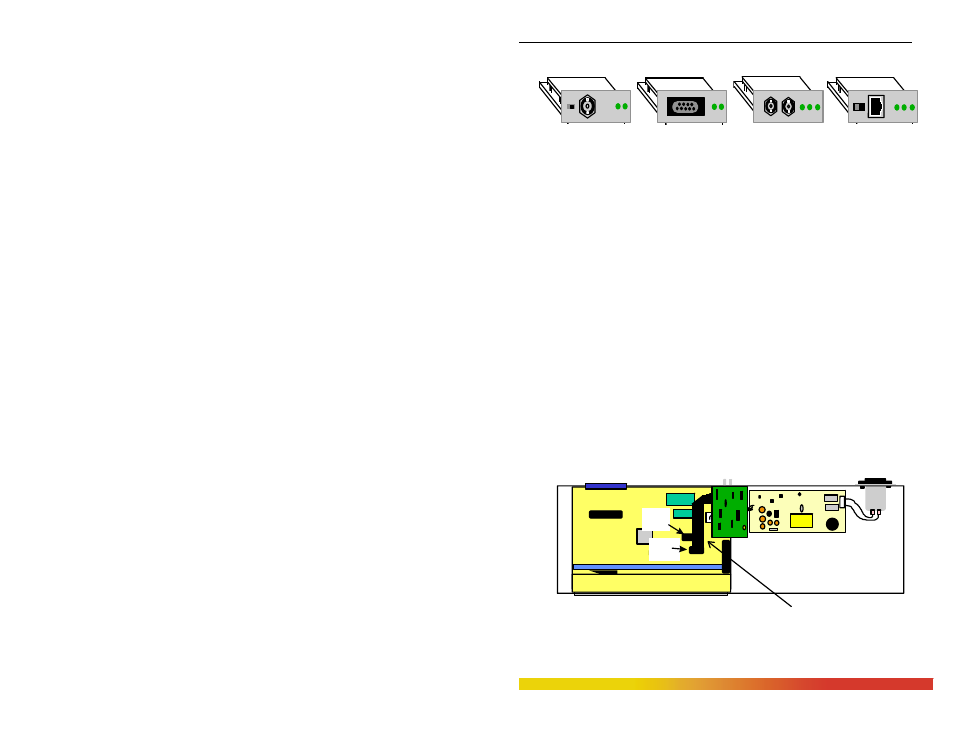

Figure 2.5b: Magnum BPM Modules for Bonus Ports
(left to right above) BPM-BNC, BPM-AUI, BPM-FST, BPM-TP
(Note: When an RPM-AUI type is configured as a bonus port, it is typically
implemented at the factory as an AUI connector with a ribbon cable to header pins on the
main board. The functionality is the same as the RPM-AUI card.)
For application flexibility, any of the Magnum PMs may be specified for
factory configuration at the time of order. It is also possible for the Bonus Port slot to be
configured in the field by a trained technician.
NOTE: When adding a Port Module to the Bonus Port slot in the field, it is necessary to
have a Port Module connector cable (part number PM-CBL available as a spare part from
GCI) in addition to the desired PM. See Figure 2.5a and 2.5b.
Figures 2.5a and 2.5b show the internal layout of the Magnum 3012 and 3024,
respectively. When installing a PM into the Bonus Port slot of the Magnum 3012, the
16-pin header labeled J1/B (also labeled RPM) should be used. The red stripe of the
PM connector cable should connect to pin 1of header J1/B.
Figure 2.5c: Magnum 3012 internal layout with configured Bonus Port
Bonus port for optional
PM card (BPM shown)
(Included only when PM is factory installed
May be ordered separately as part #CBL-PM
NOTE:
Use J1 (AUI) and for Basic AUI ports
Use J1/B (RPM) for PMs
J1
(AUI)
J1/B
(RPM)
