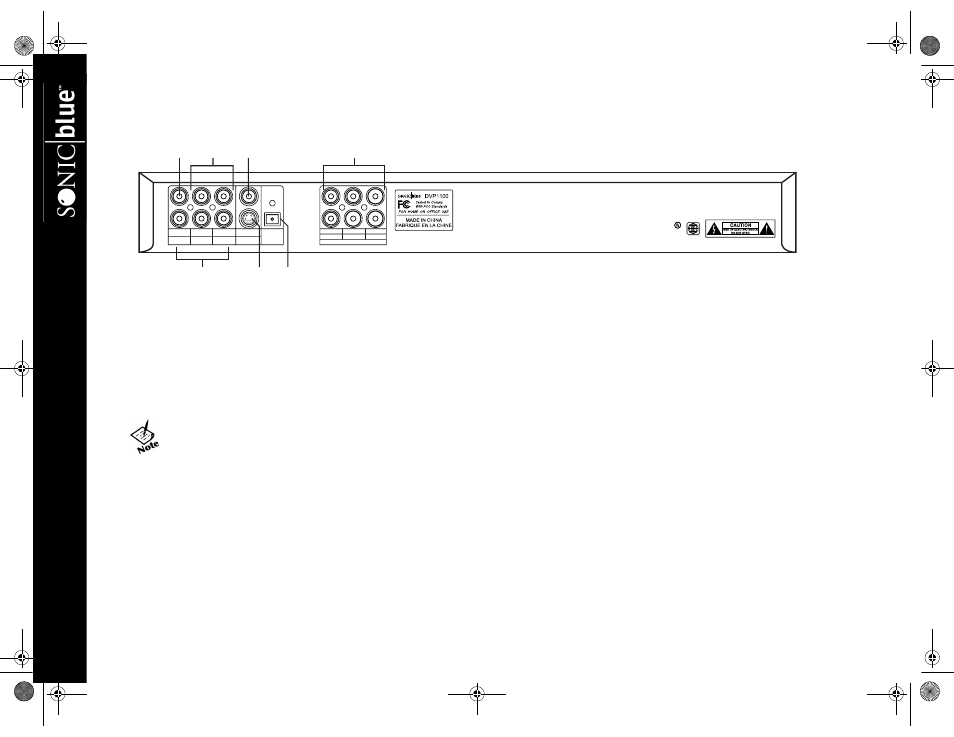

Rear Panel
1 Composite Video Output
Connect to the video input on your TV.
2 Stereo Audio Output
Connect to the left/right analog audio inputs on your TV, stereo or amplifier.
3 Digital Audio Out (Coaxial)
Connect to the coaxial digital audio input on your amplifier.
4 Component Video Output
Connect to the component video inputs on your TV.
5 S-Video Output
Connect to the S-Video input on your TV.
6 Digital Audio Out (Optical)
Connect to the optical digital audio input on your amplifier.
7 5.1 Channel Audio Outputs
Connect to the analog audio inputs on your 5.1 channel amplifier.
• Please continue with Chapter 2 to connect your DVD player.
