Magnum 8000X Mixed-Media Fiber Hubs Installation and User Guide (05/ 02)

www GarrettCom com

5.2.2a

FPM10-MSC, 10 Mbps multi-mode FL-SC-type, “snap-in” connector

The Magnum FPM10-MSC is a multi-mode 10 Mbps fiber optic module

equipped with a dual SC-type connector. It looks the same as the 100Mb FPM-MSC,

but has lettering “10 Mb” on the front to distinguish it.

5.2.3

FPM-SSC 100Mbps single-mode FX-SC-type, “snap-in” connector

The Magnum FPM-SSC is a single-mode 100Mbps fiber optic module

equipped with a dual SC-type connector. It functions as a full fiber optic transceiver to

support single-mode fiber

networks.

The FPM-SSC, when

installed in a Magnum 8000X

hub, supports fiber distances the

same as 100Mbps multi-mode

ports because of the 100Mbps

collision domain limitations, so

it is only practical for use where

single-mode fiber cable is

already installed and must be used.

Note - to support long fiber distance with the Magnum 8000X, use either

10Mbps modules in front ports (which can go up to 2Km), or use a 100Mbps full-

duplex SPM in the bonus port which has no collision domain limits.

The FPM-SSC is equipped with an Activity (A) LED, and LINK(L) LEDs

identical to those of the FPM-MSC. To distinguish the single-mode FPM-SSC from the

multi-mode FPM-MSC, the label “Sgl. M.” is at the top of the faceplate of the FPM-

SSC.

5.2.3a

FPM10-SSC, 10Mbps single-mode FL-SC-type, “snap-in” connector

The Magnum FPM10-SSC is a single-mode 10 Mbps fiber optic module equipped with

a dual SC-type connector. It looks the same as the 100Mbps FPM-SSC, but has

lettering “10 Mbps” on the front to distinguish it.

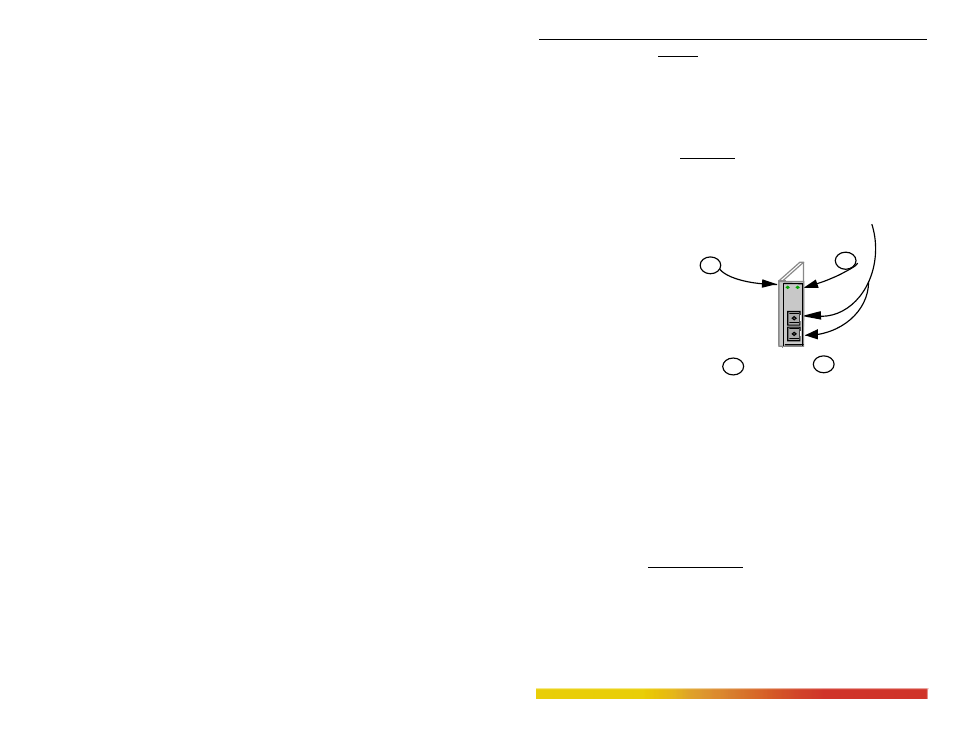

ACTIVITY

LINK

100BASE-FX, 10BASEFL sgl.mode

SC Connectors

A L
