Magnum 8000X Mixed-Media Fiber Hubs Installation and User Guide (05/ 02)
20
www GarrettCom com . .
The Magnum 8000X Fiber Hubs support all of the fiber port types (including the latest
models), adapting the fiber LAN to changing technology. The Dual- Speed feature
provides for growth in performance to higher bandwidth 100Mbps speed, and the per-
port modularity plus stacking provide for port expansion.
Example 3: Future-proofing, industrial environments: In heavy industrial plants
(such as steel mills, electrical generating stations, telecom central offices, hospitals,
etc.), fiber LAN cables are usually used for noise immunity and electrical ground-
isolation. In this kind of environment where computer systems are used to monitor and /
or manage operations, an Ethernet fiber link is used to collect real-time data via SNMP
agents in the equipment. The SNMP management fiber network almost always operates
at 10 Mbps. Network management workstations and network servers use 100Mbps
ports to the high performance nodes.
The Magnum 8000X Dual-Speed Fiber Hub is ideal in these situations. The
fiber ports are economical and may be a mix of 10 and 100Mbps, and may be any
quantity or mix of standard port connector types. Individual 10/100 RJ-45 ports may be
configured also, and an optional SPM can segment local users from the rest of the
network. Stacking provides capacity for up to 48 ports, and the 8000X can be stacked
with a DS8016-A for a mix of RJ-45 and fiber ports. The flexibility results in a

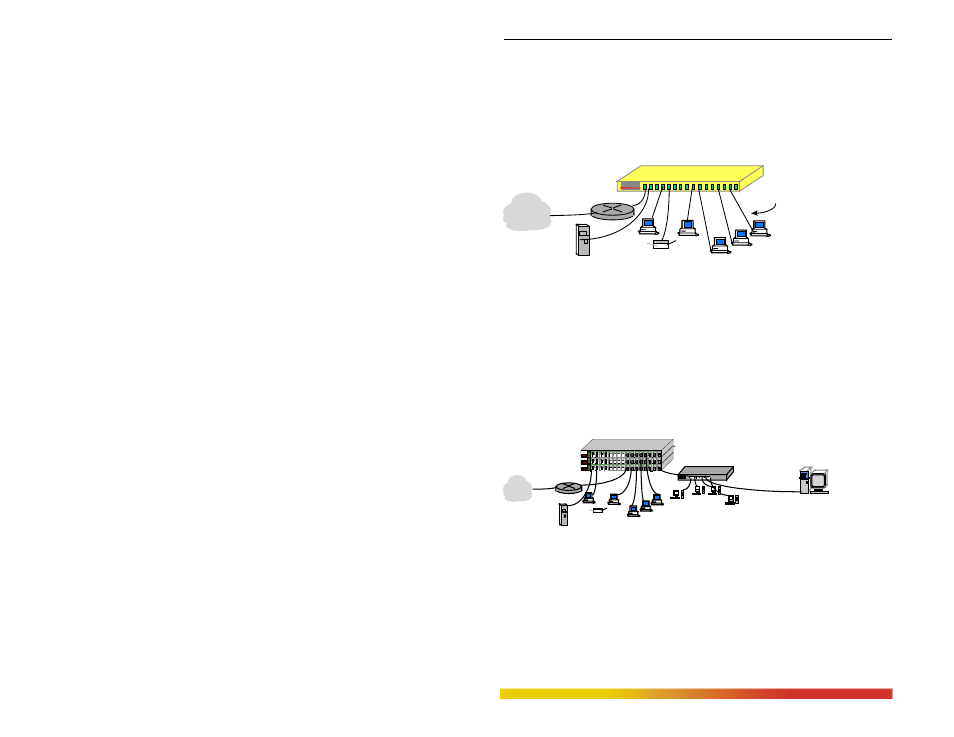

“future-proof” fiber hub. The illustration below shows this type of installation.
Magnum 8000X has 16 ports per unit,
is stackable up to 3 units, and economically
supports all fiber types to the desktop for
maximum security and flexibility.
Server
100
100
100
100 100 100
Router
UPLINK 100
Print Server
Fiber segments, 100Mb or 10Mb
Magnum 8000X offers a full range of fiber port
modules (both 10Mb and 100Mb), 10/100 RJ-45,
and stackability for the ultimate in “future-proofing”,
even noisy specialty environments
Server
100
100
100
100 100 100
Router
UPLINK
Print Server
Magnum DS80
101/00 Personal Hub
10BASE-FL
Fiber Segment
10
10 100
100
10100 PWR BRD ACT COL
Magnum 8000X Mixed Media Hub GARRETT 1 R L S R L S R L S R L S R L R L R L R L R L R L R L R L R L R L R L R L
10100 PWR BRD
ACT COL Magnum 8000X Mixed Media Hub GARRETT 1 R L S R L S R L S R L S R L R L R L R L R L R L R L R L R L R L R L R L
10100 PWR BRD ACT COL
Magnum 8000X Mixed Media Hub GARRETT 1 R L S R L S R L S R L S R L R L R L R L R L R L R L R L R L R L R L R L
