GE DS-82 - Manual (Page 103)

Chapter 4: Web-Based Management
GE-DS-82 and 82-PoE Ethernet Managed Switch User Manual 99
• Switch 2 configuration
6. Set System Priority of the trunk group. For example: 32768.
7. Select a trunk group ID by pull down the drop-down menu bar.
8. Enable LACP.
9. Include the member ports by clicking the Add button after selecting the port
number and the column field of Work Ports changes automatically.

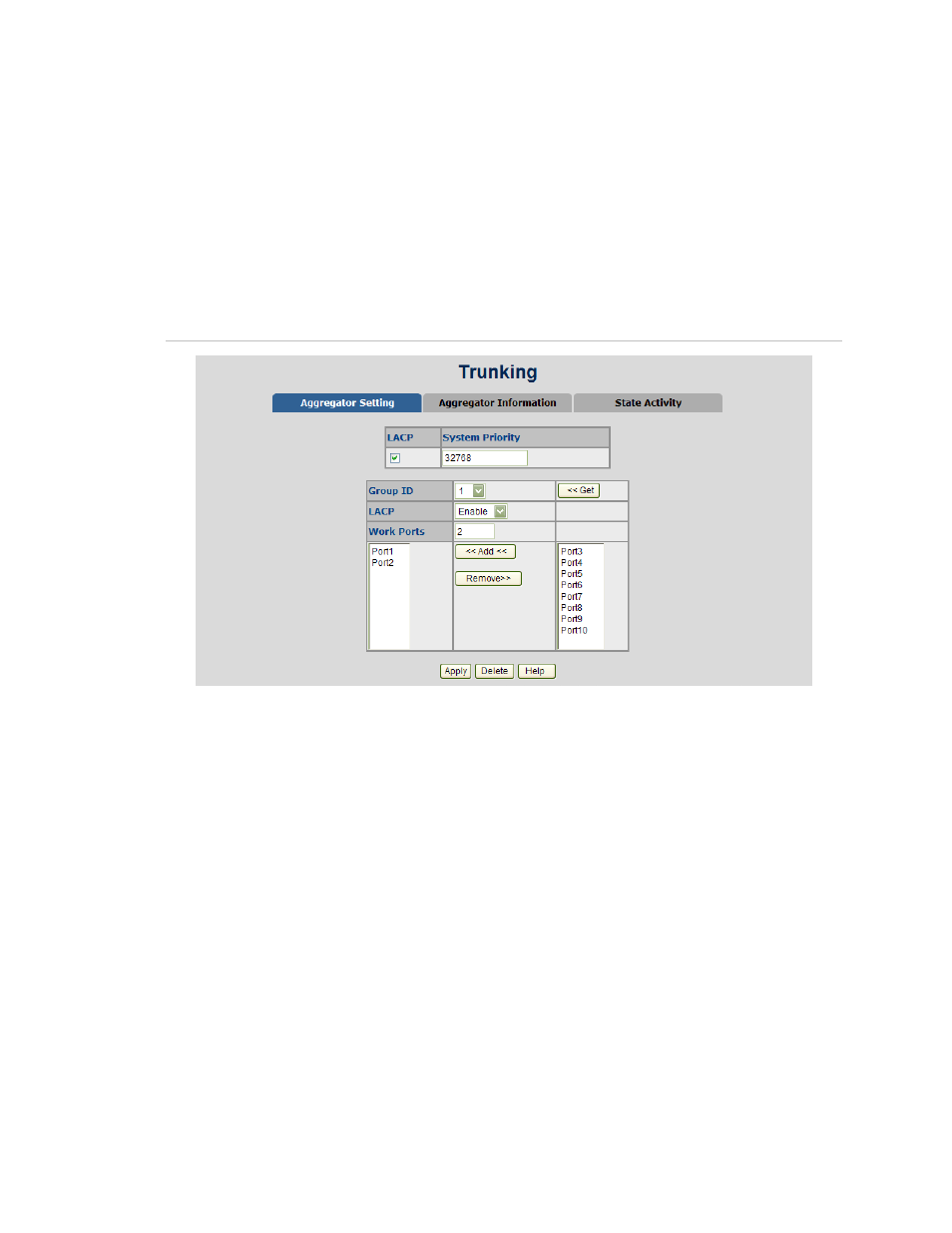

Figure 68: Switch 2 configuration interface
10. Click on the tab of Aggregator Information to check the trunked group
information as the illustration shown above after the two switches are configured.
