Reed Switch Replacement
3A0157A 39
Reed Switch Replacement
Removal
1. Remove four screws and remove display cover.
2. Remove two screws and remove control panel.
3. Unplug reed switch from control board.
4. Unscrew reed switch from control panel.
Installation
1. Apply thread sealant to end of reed switch. Hand
tighten reed switch until it is tight against control
panel.
2. Add thread sealant and tighten jam nut against
threaded bus.
3. Connect reed switch to control board.
4. Replace control panel and tighten two screws.
5. Replace display cover and tighten four screws.

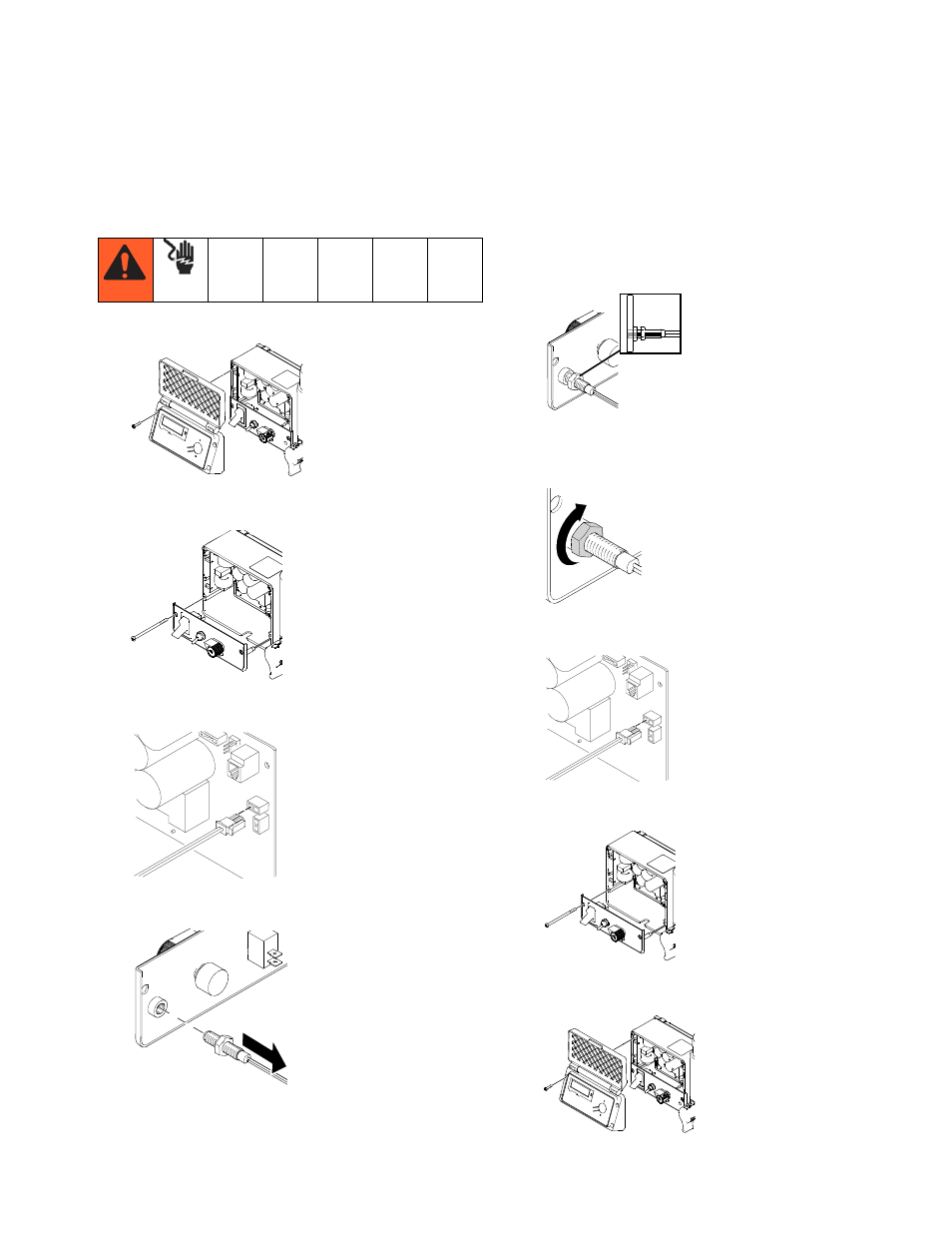

ti13568a
