Troubleshooting
26 3A0157A

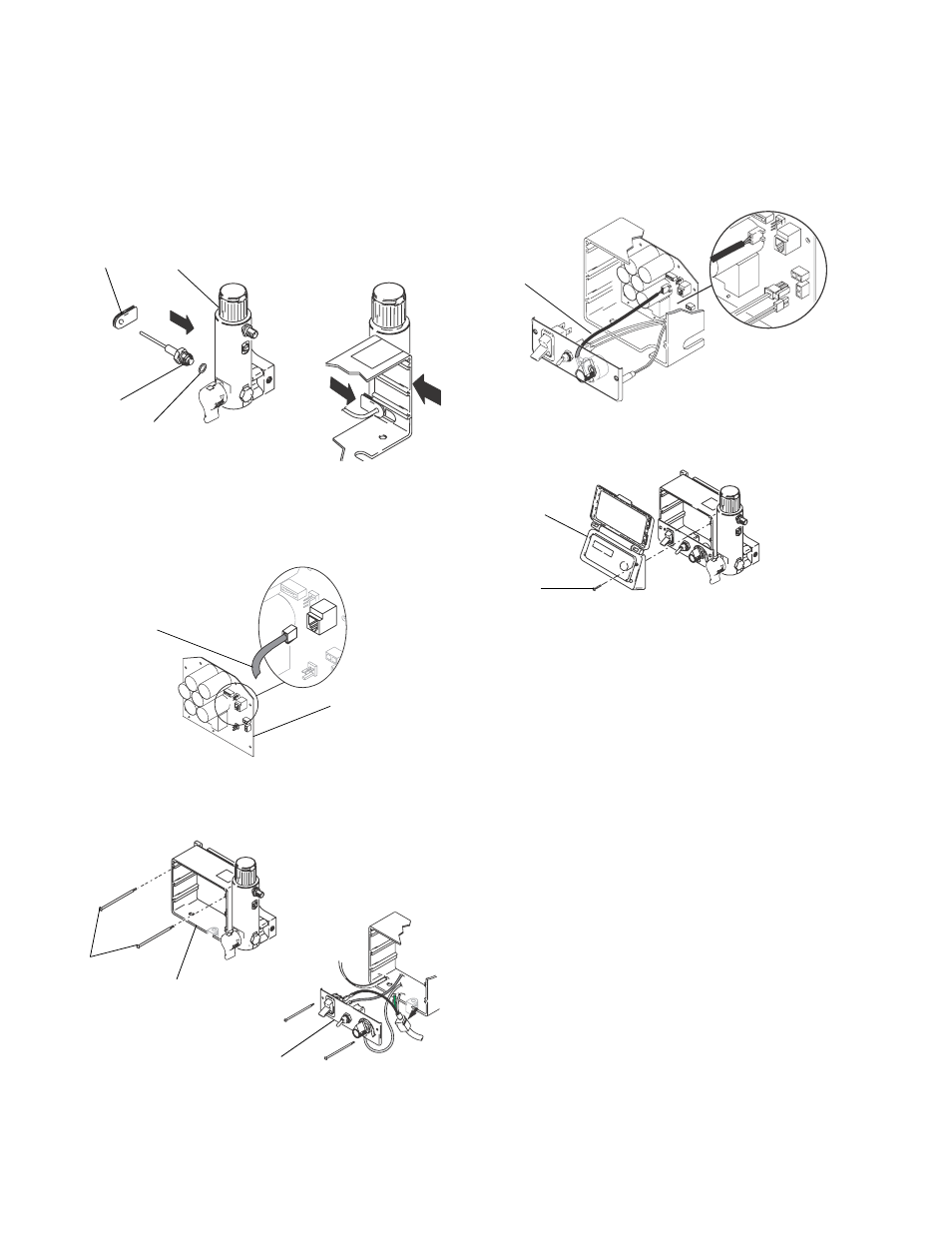

Installation
1. Install o-ring (20) and transducer (86) in filter base
(67). Torque to 35-45 ft-lb (47-61 N•m). Install grom-
met onto transducer (86) and transducer into control
box.
2. Connect transducer connector (E), WatchDog
switch, and reed switch connector to control board
(95).
3. Install control box (61) and control panel (68) with
four screws (39).
4. Connect potentiometer connector (C), WatchDog
switch, and reed switch connector to control board.
5. Install cover (96) with four screws (38).
ti7447a
40
67
20
86
ti13496a
E
95
ti12999a
ti7458a
39
61
68
ti13494a
C
ti13722a
38
96
ti13493a
