Blade guide installation – Grizzly G8692 User Manual
Page 15
-14-
G8692 Portable Bandsaw and Stand

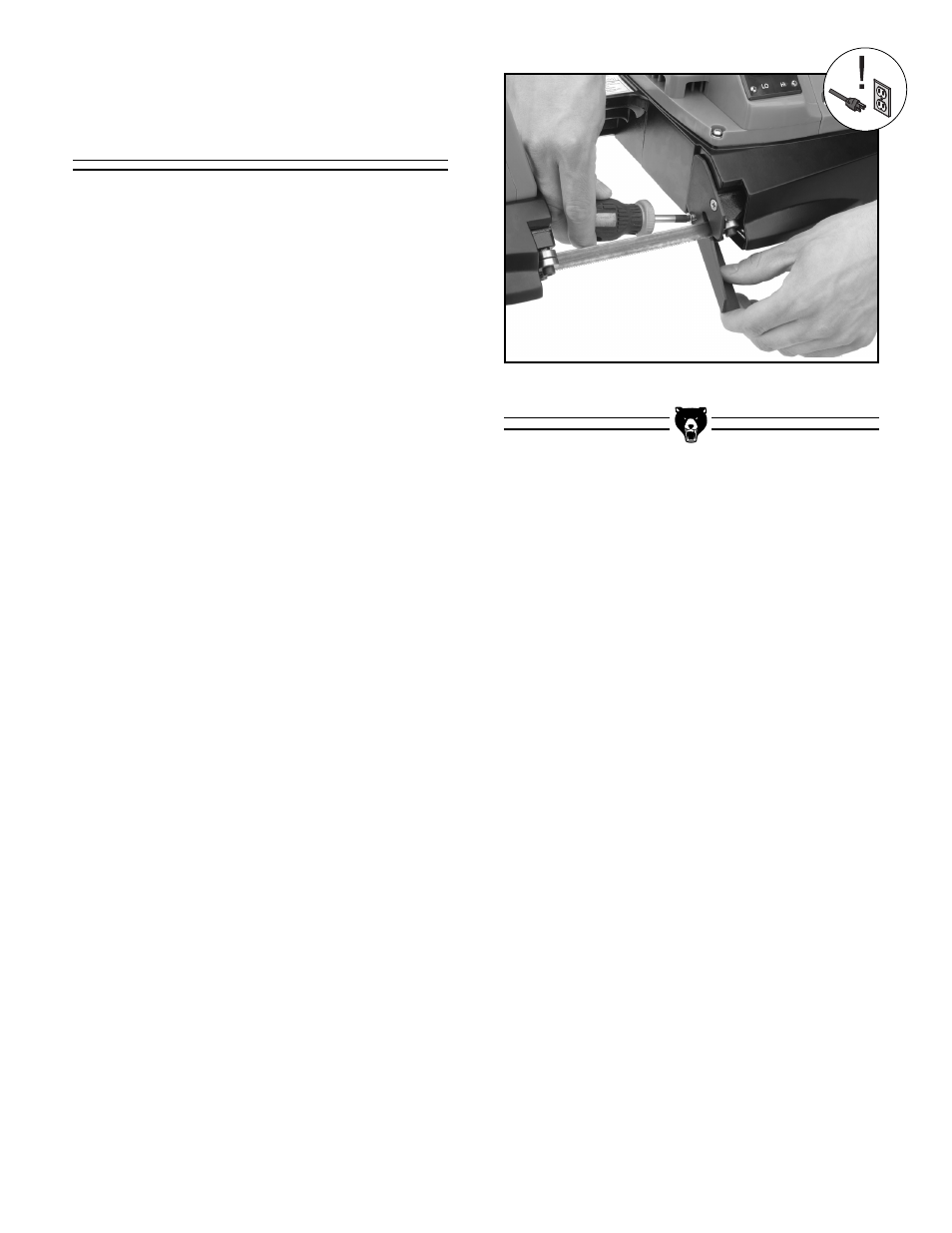

Figure 5.
Attaching blade guide.
Blade Guide
Installation
To install the blade guide on your bandsaw.
1.
Disconnect the bandsaw from the power
source.
2.
Position the blade guide over the threaded
holes by the guide bearings.
3.
Secure the blade guide in place with the sup-
plied countersunk flat-head Phillips head
screws as shown in
Figure 5
.
